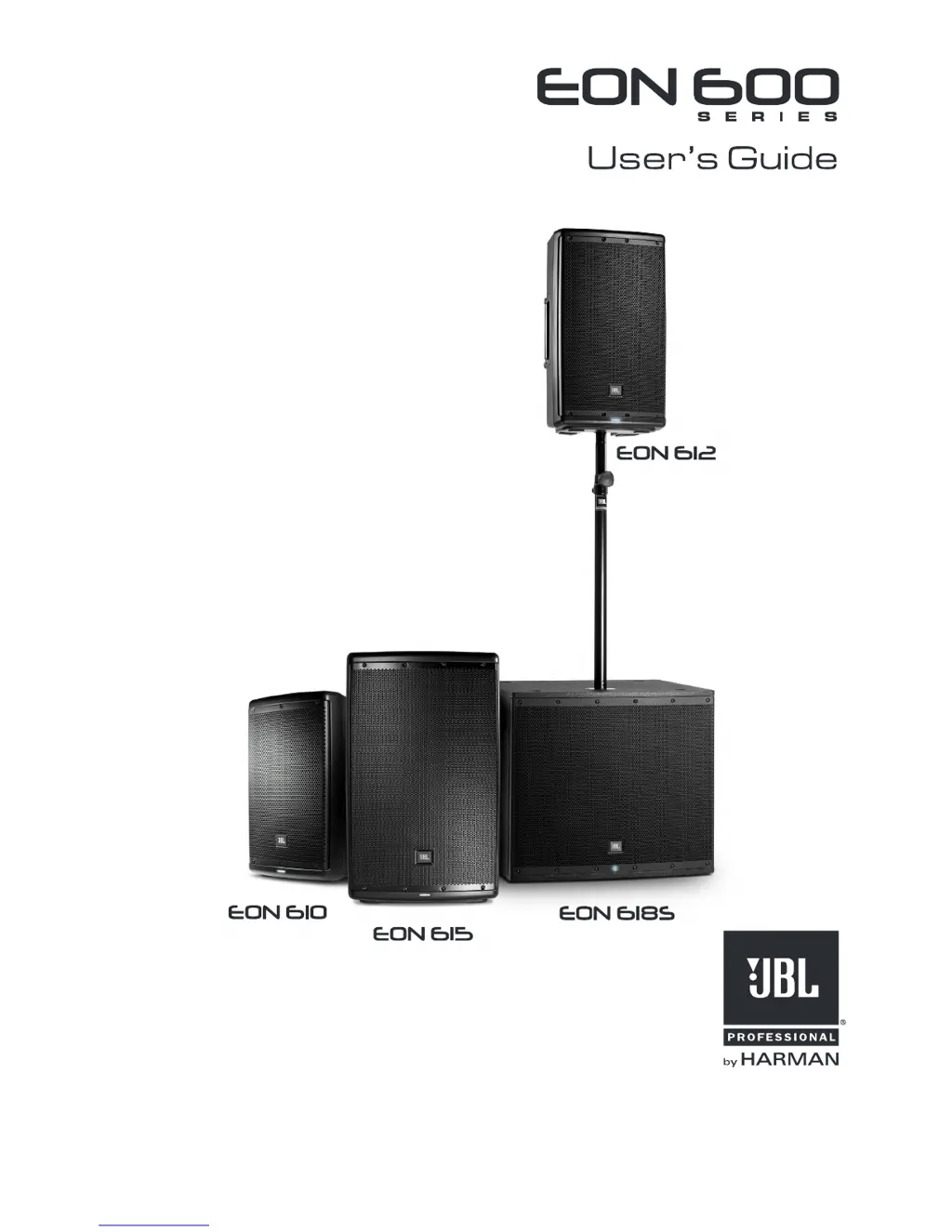

JBL EON 610 - User Manual

Questions and Answers

L
lbartonAug 4, 2025
How to troubleshoot JBL Speaker that comes on but has no sound?
- F
  fitzgeraldmichaelAug 4, 2025
  If your JBL Speaker comes on but produces no sound, the issue might be with the signal source (mixer, instrument, etc.) not sending a signal, or faulty cables and connections. You can check VU meters on the source mixer, verify that the tape or CD is playing, and use headphones to confirm the instrument is sending an audio signal. Also, disconnect and re-seat signal cables, and replace any suspected cable with a known-good cable.
C
Casey GomezAug 8, 2025
How to fix hum or buzz in JBL Speakers?
- S
  Stacey BushAug 8, 2025
  If you're experiencing hum or buzz with your JBL Speakers, it could be due to several reasons. It may be caused by improper A/C grounding or ground loops. Try these steps: * 'Lift' the audio ground by using an XLR/F to XLR/M adapter on one end. * Re-route audio cables away from AC power and lighting cables. It also can be caused by an excessively long unbalanced cable run. To fix it: * Use the balanced outputs (if available) of your mixer or source equipment to drive your EON speakers. * Use a “DI” (direct injection) box to convert your unbalanced equipment output to a balanced output. Another reason is improper system gain structure, so reduce the INPUT level controls and increase the output level of your source devices.
M
Melissa GarciaAug 12, 2025
What causes hum or buzz that changes with mixer levels in JBL EON 610?
- K
  Keith NelsonAug 12, 2025
  If you notice a hum or buzz that increases or decreases when the mixer level controls are moved with your JBL Speakers, it may be due to an improper A/C ground or faulty equipment connected to the mixer input, or a faulty cable between the source equipment and mixer. Disconnect or mute channels one at a time to isolate the problem. Substitute a known-good cable for the suspected faulty cable.
L
Larry MullinsAug 16, 2025
Why is my JBL EON 610 signal distorted and very loud?
- M
  Makayla VangAug 16, 2025
  If the signal from your JBL Speakers sounds distorted and very loud, and the PEAK light is frequently lit, it's likely due to an excessive input signal trying to exceed the speaker's capabilities. To resolve this: * Reduce the output level of the source. * Turn down the level controls on the speaker. * Consider using additional speakers.
J
James WilliamsAug 20, 2025
How to troubleshoot distorted sound at moderate volumes on JBL EON 610 Speakers?
- S
  Susan BakerAug 20, 2025
  If you are getting a distorted sound from your JBL Speakers even at moderate volumes, and the LIMIT light is not lit, the mixer or another source might be overdriven. In this case, adjust controls as needed, including input sensitivity (gain), channel faders, and master faders.
A
Alyssa MeadowsAug 26, 2025
How to eliminate hiss in JBL EON 610 sound?
- G
  gilbert20Aug 26, 2025
  If there's a lot of hiss in the sound from your JBL Speakers, especially when the mixer controls are at very low settings, it might be due to an improper gain structure. First, make sure that the MIC/LINE switch is in the LINE (disengaged) position. Then, reduce the level settings at the speaker. Also, adjust controls as needed, including input sensitivity (gain), channel faders, and master faders.
J
Jamie SchroederAug 29, 2025
What to do if my JBL Speakers have no sound with a microphone connected?
- T
  Tanya KelleyAug 29, 2025
  If you're experiencing no sound with a microphone connected directly to the MIC/LINE input of your JBL Speakers, the microphone may require phantom power. The EON does not supply phantom power. Switch to a dynamic microphone, use a battery powered microphone (if possible), or use an external phantom power supply for condenser type microphones.

JBL EON 610 Specifications

General

Power Rating	1000W Peak
Maximum SPL	124 dB
HF Driver	1" Neodymium compression driver
Weight	26 lbs (11.79 kg)
System Type	Self-powered 10", two-way, bass-reflex
Amplifier Design	Class D
Enclosure	Polypropylene
Frequency Response	52 Hz - 20 kHz
LF Driver	10"
Output Connectors	XLR
Suspension / Mounting	M10 suspension points
Dimensions	295 mm
Input Connectors	2 x XLR-1/4" combo
