JBL GTO 6000 User Manual

Controls and Connections
3
1
3
6
45
9
8
7

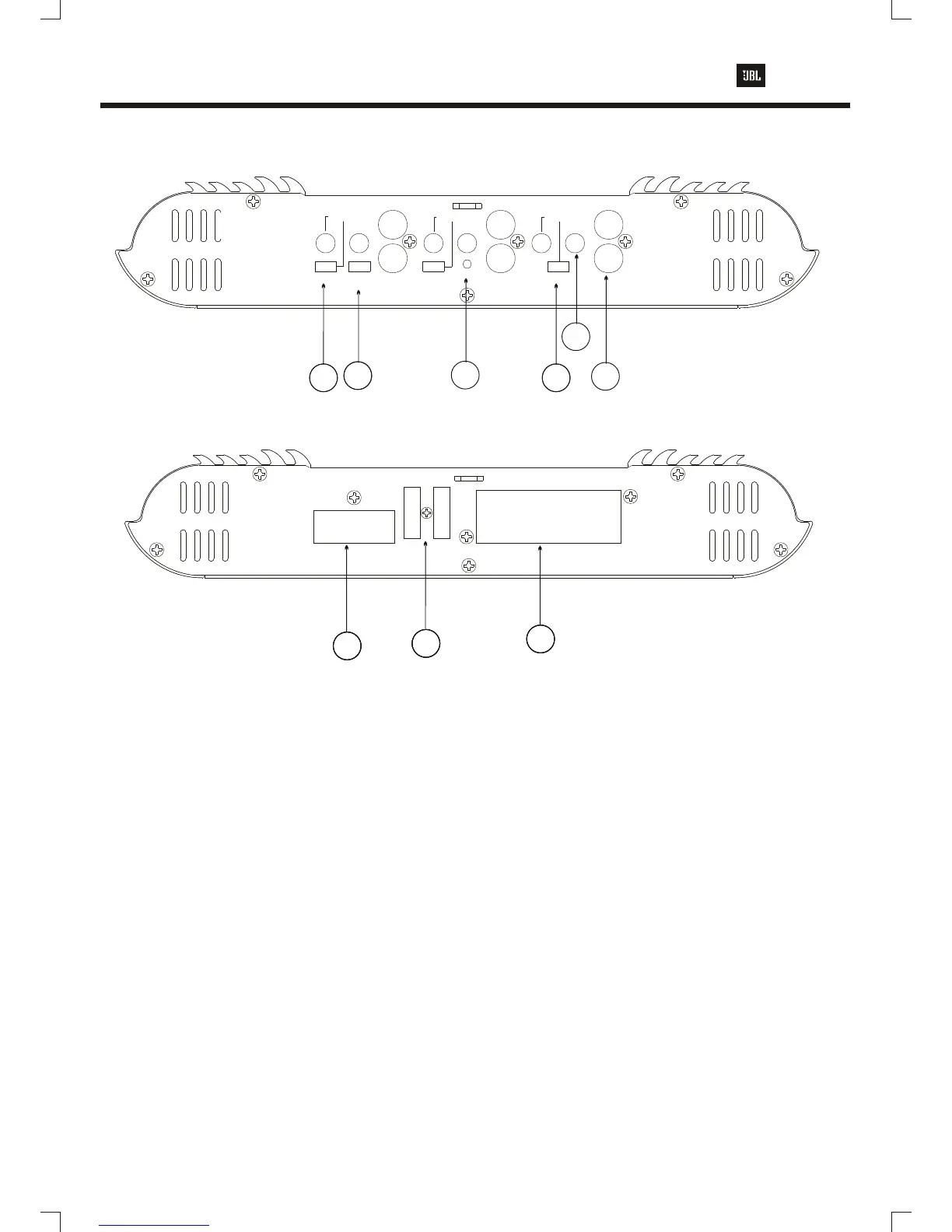

Controls and Connections
1. Low INPUT (RCA JACK TYPE)
- Commed to line of level output from the
source umt
2. Power Indicator
3. Input-sensitivity level coltrol
6. +6db(at45Hz)Bass boost,only Sub channel
4. High pass filter which can be set at any freg
between 30Hz and 320Hz(adjustable)or variable
5. Low pass filter which can be set at any frequency
between 30Hz and 320Hz(adjustable)or variable
7.Power Connector-Connection for 12V+,
GND and REM in or out.
8.Fuse - 32v 30A attached type
9. Output Connector - connect a wire between
the output terminal on the amp and
Speakers (each channels)
6 Channel Power Amplifier
Gto 6000
LP
OFF
BASS EQ
ON
OFF
320Hz
30Hz
GAIN
X-OVER
SUB
INPUT
L
R
320Hz
30Hz
HP
OFF
POWER
X-OVER
REAR
GAIN
INPUT
L
30Hz
R
320Hz
HP
OFF
FRONT
X-OVER
GAIN
INPUT
L
R
+12V
GND
REM
FUSE
REAR
SUB
L R L
FRONT
R LR
BRIDGED
+
-
2

JBL GTO 6000 Specifications

General

Brand	JBL
Model	GTO 6000
Category	Amplifier
Language	English
