JBL GTO 6000 - Typical System Configuration (Wiring)

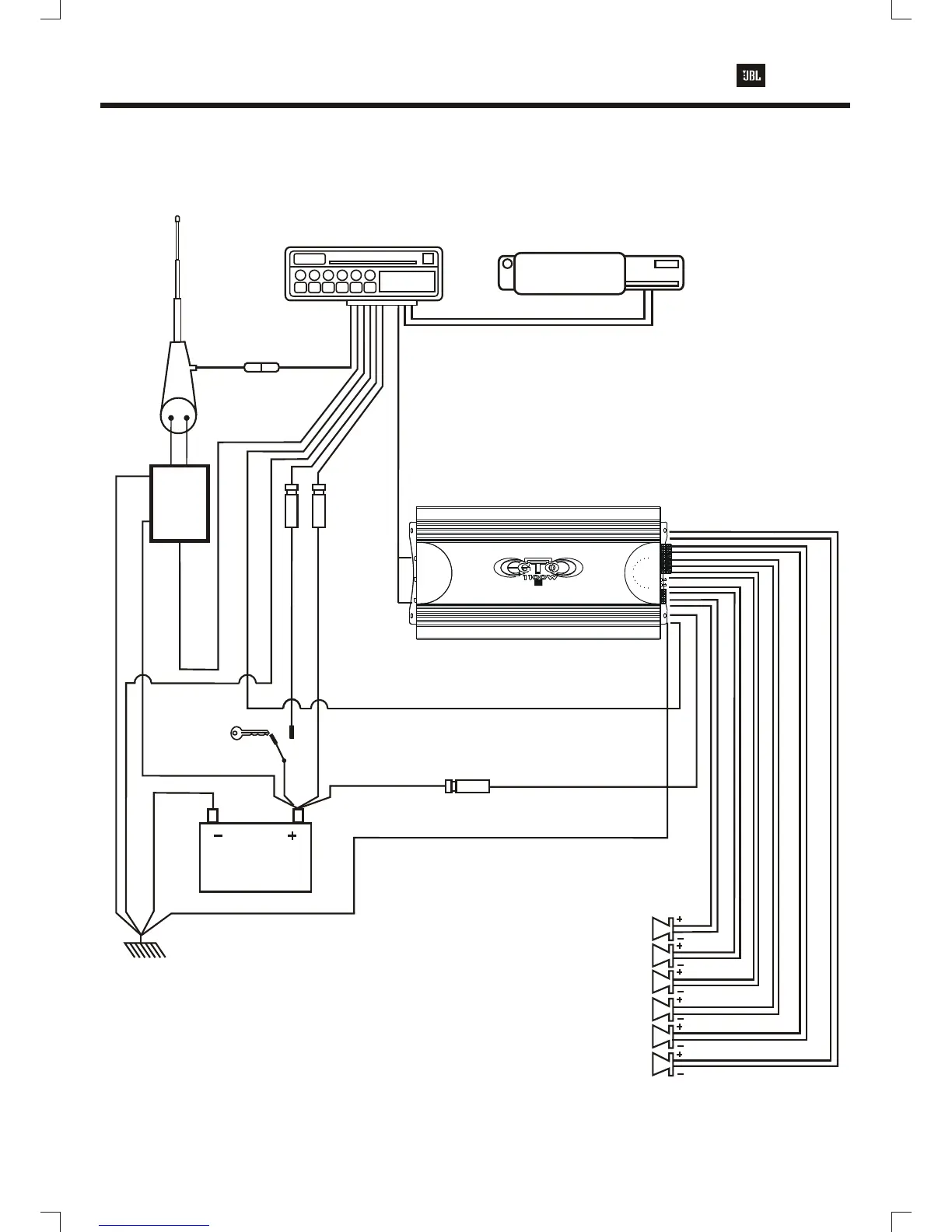

Typical System Configuration
4
Vehicle Battery
Chassis Ground
Ignition
Switch
CD Player or Changer
Cassette/CD Tuner
(Head Unit)
Power Ground
60 Amp (Not Included)
Main +12V
Amplifier
Power
Connection
Line
Level
Input
Remote On/Off
Remote Antenna
Power Supply
Antenna Motor Ground
Remote On/Off
Black - Power Ground
Red - Main +12V
Black Power
Antenna Input
Power
Antenna
Cassette/Receiver
Power Supply
Wires
Fuse
Fuse Fuse
Power
Antenna
Relay
Speakers
6 Channel Power Amplifier
Gto 6000
6/5/4/3 Channel Power Amplifier
GTO 6000
-3 dB
-8 dB
-13 dB
-13 dB
-3 dB
-8 dB
0 dB
+3 dB +3 dB
0 dB
-13 dB
-13 dB
