gX-a602 Input connectIons: brIdged operatIon

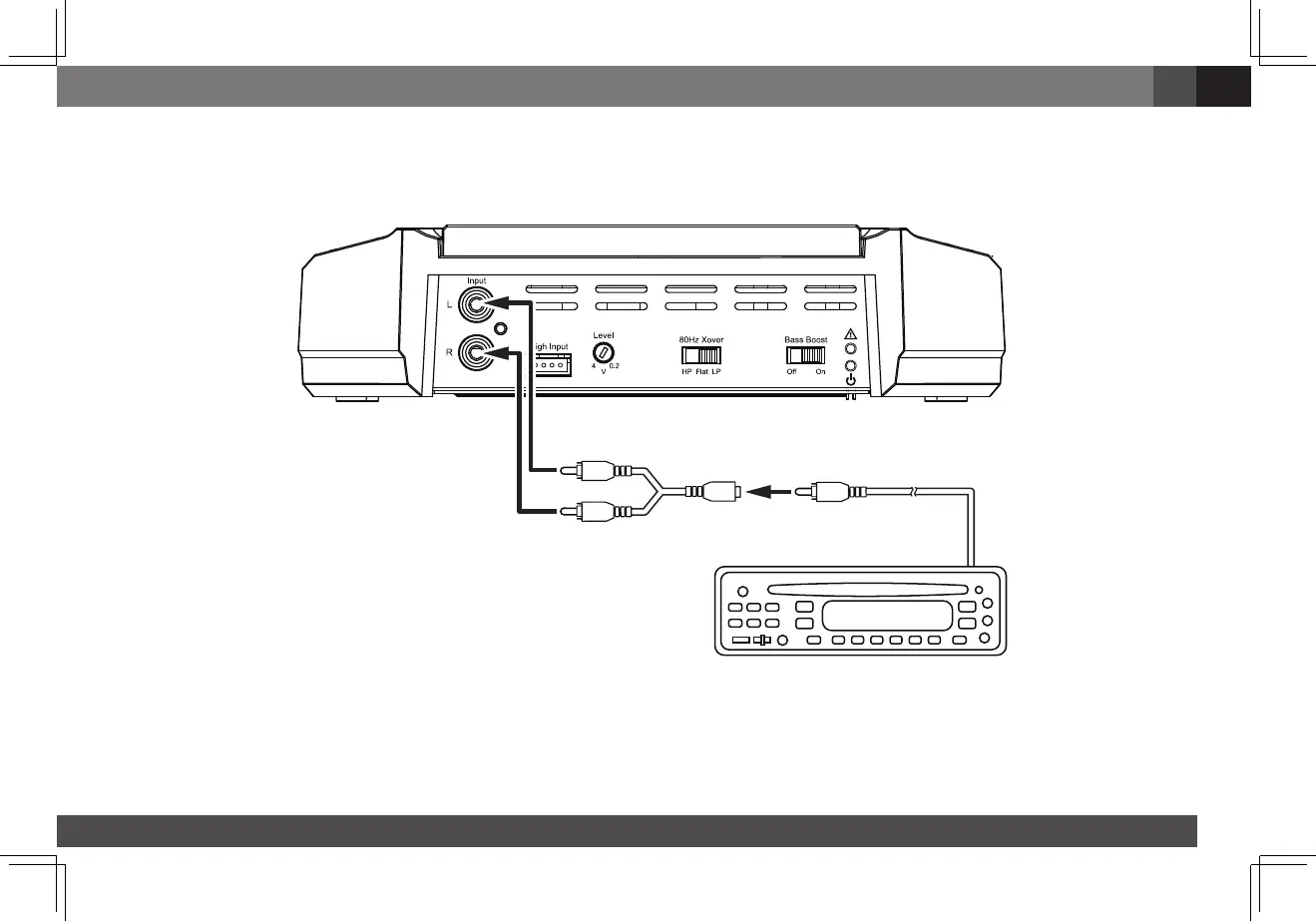

Connectyoursourceunitorprocessor’ssubwooferlineoutputtotheamplifier’sleftinput,asshownintheillustrationbelow.
NOTE: Usea"Y"-adaptertoconnectthesourceunittotheamplifier’sleftandrightinputjacks.
L+L–R–R+
Source Unit
"Y"-Adapter
Subwoofer
Output
See Set The Crossover Controls, onpage20,forinformationaboutsettingtheamplifier’scontrolsforbridgedoperation.
To use the speaker-level inputs instead of the line-level inputs, see Using The Speaker-Level Inputs, on page 12.

JBL GX-A602 Specifications

General

Signal-to-Noise Ratio (SNR)	93 dB
Number of amplifier channels	2 channels
Frequency response	20 Hz
