JBL GX-A602 User Manual
4
of 1
of 1 rating
28 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
10
10
GX-A604 SPEAKER CONNECTIONS: 2-CHANNEL OPERA
TION
Minimum speaker impedance: 4 ohms (each)

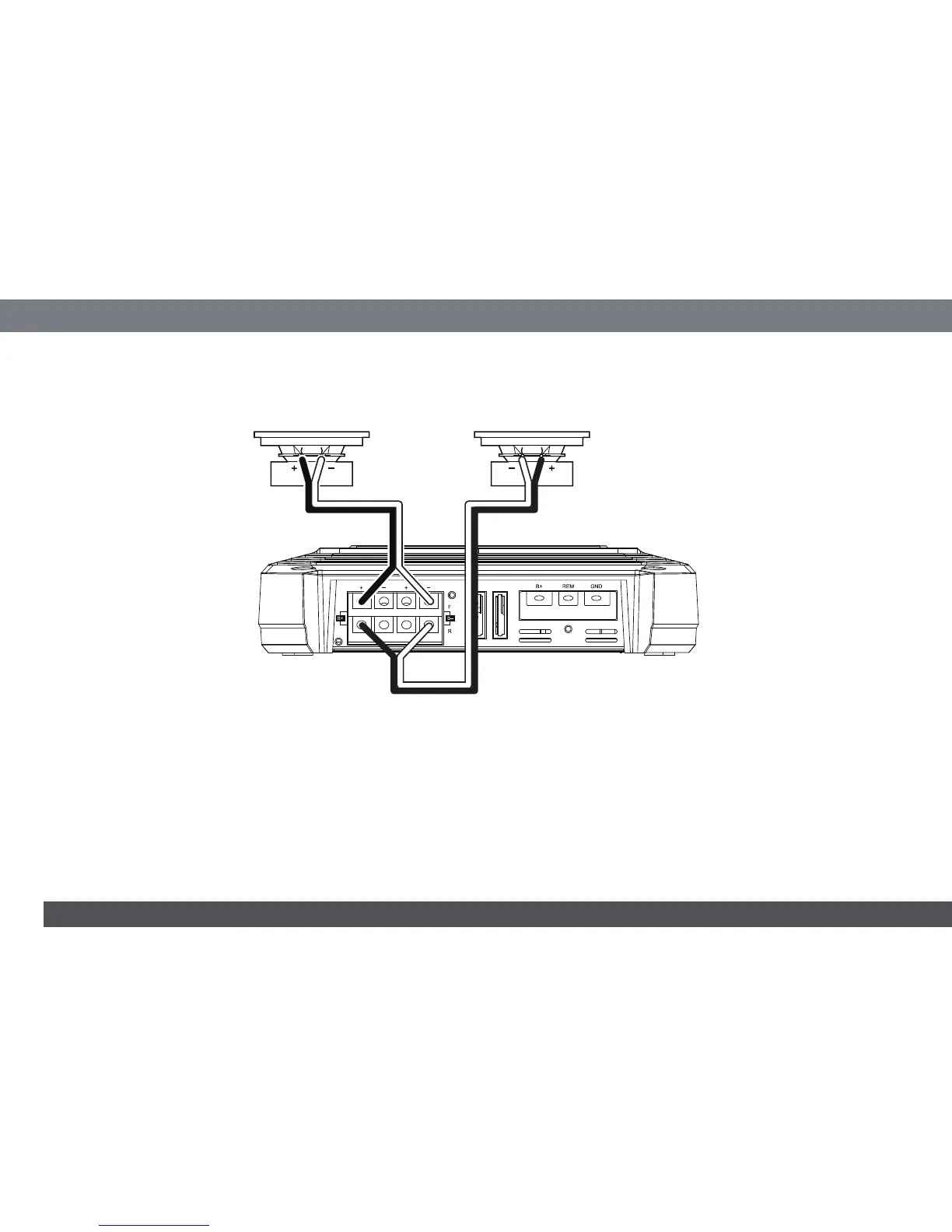

Connect the left and right speakers as shown in the illustration below
.
Speaker
Fuses 20A
Left Speaker
Right Speaker
9
11
Table of Contents
Location and Mounting
2
Included Items
2
Installation Warnings and Tips
2
Installation Location
3
Mounting the Amplifier
3
Power and Ground Connections
4
Using the Connectors
4
Speaker and Input Connections
6
Using the Speaker-Level Inputs
12
Set the Crossover Controls
20
Set the Input Level
22
Set the Bass Boost
23
Power and Protection Leds
23
Troubleshooting
24
Specifications
26
