Appendix (F) - Typical HLA Array Setups
Performing Arts Theatre, Typical
Multipurpose Proscenium Theatre
32m to rear of hall, 18m Proscenium opening, 32m at widest point
Typical medium sized venue with good acoustics for cultural show
or small rock, jazz, or pop act.
Purpose:
Dimensions:
Setup:
HLA Array Data:
Symmetrical flown systems either side of stage

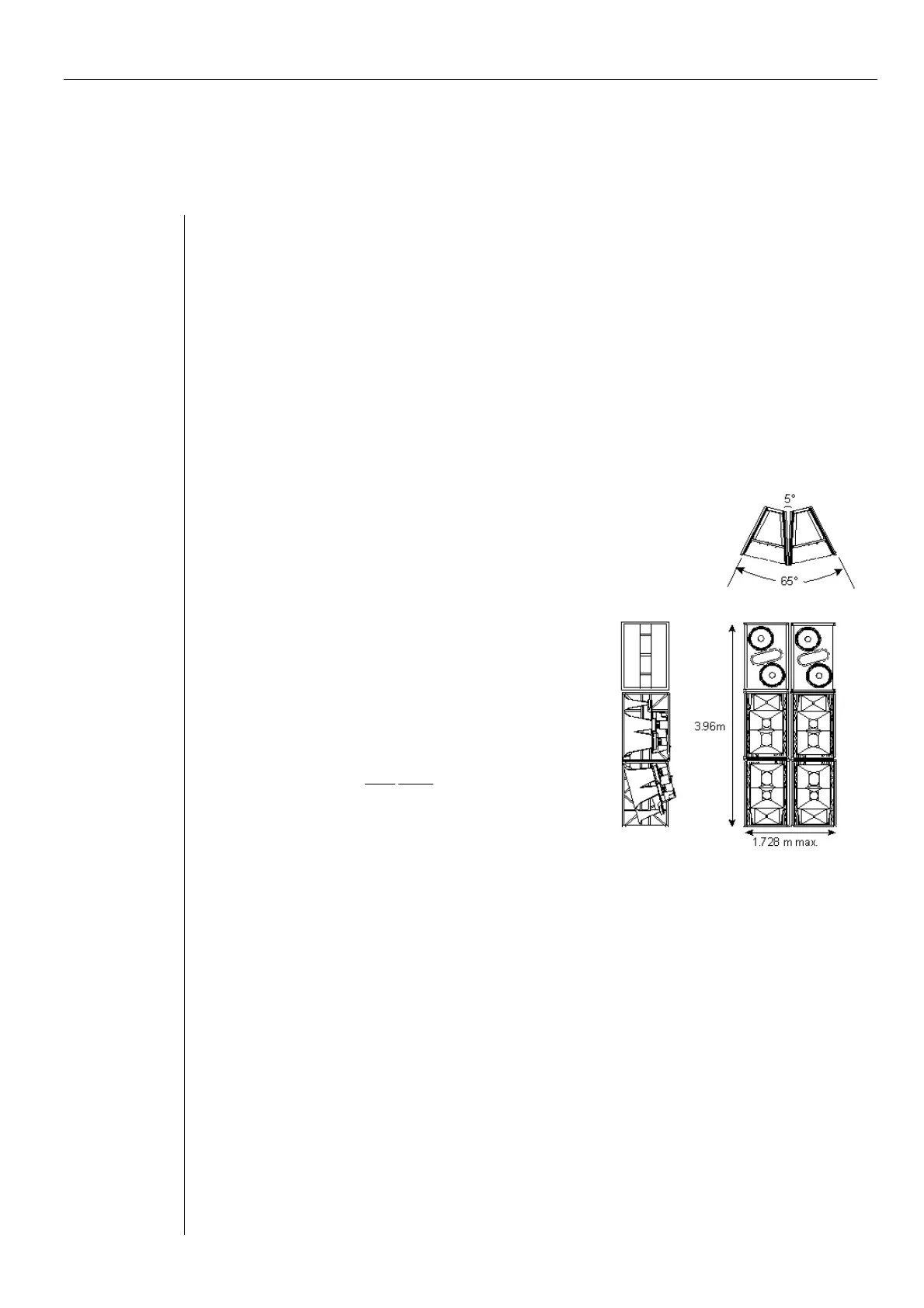

2x3 cluster: four 4895 and two 4897
Coverage: 65°H x 45°V each cluster
Trim height: 4m to Lower Edge
Max SPL @1m: 152 dB SPL
@ rear of venue: 129 dB SPL
Weight: 574 kg w/o rigging
Requires 5 amplifiers for entire
system
To Next Page
