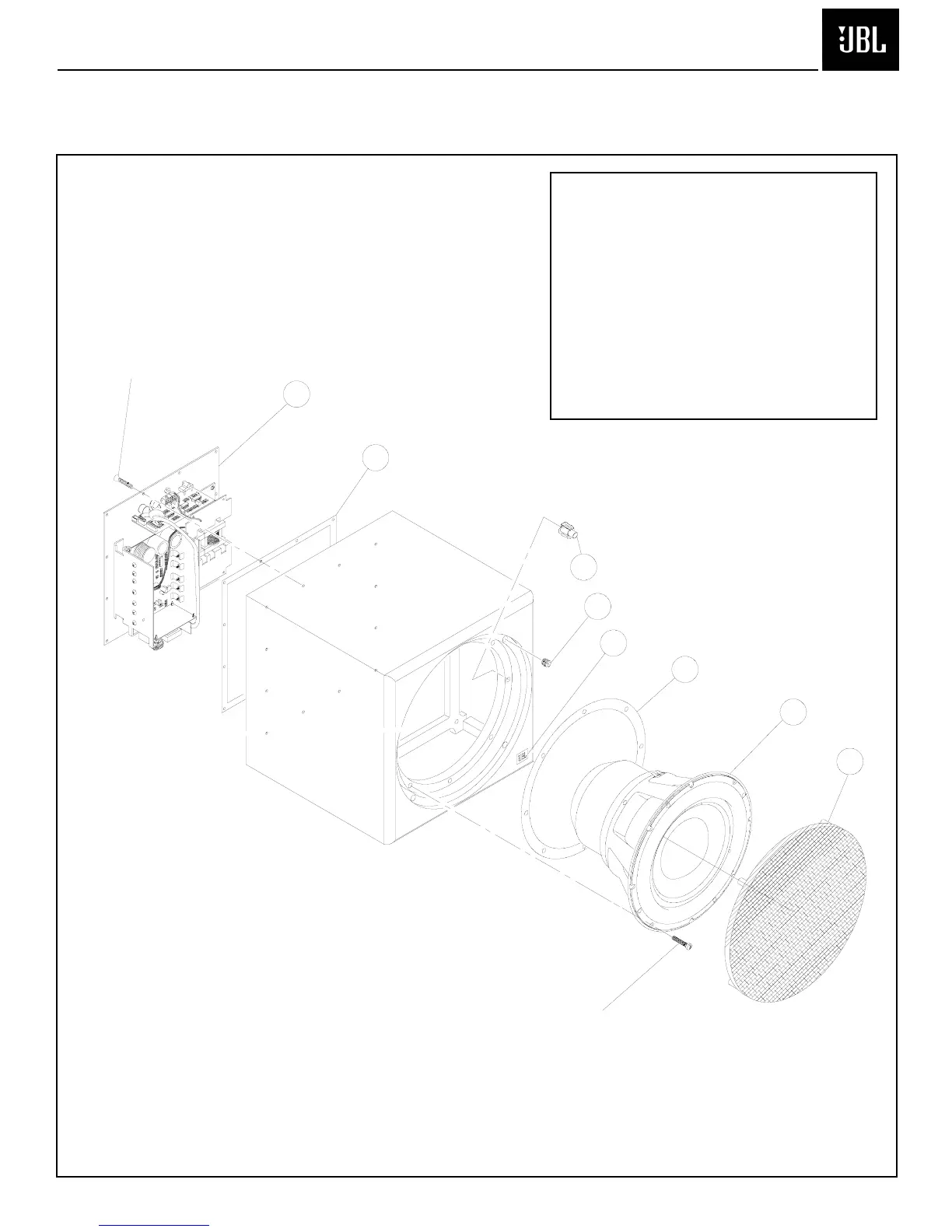

JBL HTPS-400 THX - Exploded View

HTPS-400 SUBWOOFER
12
1
4
5
2
3
SCREW, (8)
#10-32X1"
61861
SCREW, (12)
#8X.75
PB,FPH
903601-012
00339
6
7
8
Exploded View
MECHANICAL PARTS LIST
1 AMPLIFIER (Not for Sale)
2 T-NUT (8) 61861
3 GRILLE CUP (4) 333249-001
4 12” WOOFER, 336063-001
SHIELDED, DCR=8.1 ohms ±10%
5 GRILLE ASSEMBLY, FRONT 336071-001
6 LOGO, GOLD, JBL 75060-01
7 WOOFER GASKET 335481-001
8 AMPLIFIER GASKET 336074-001
