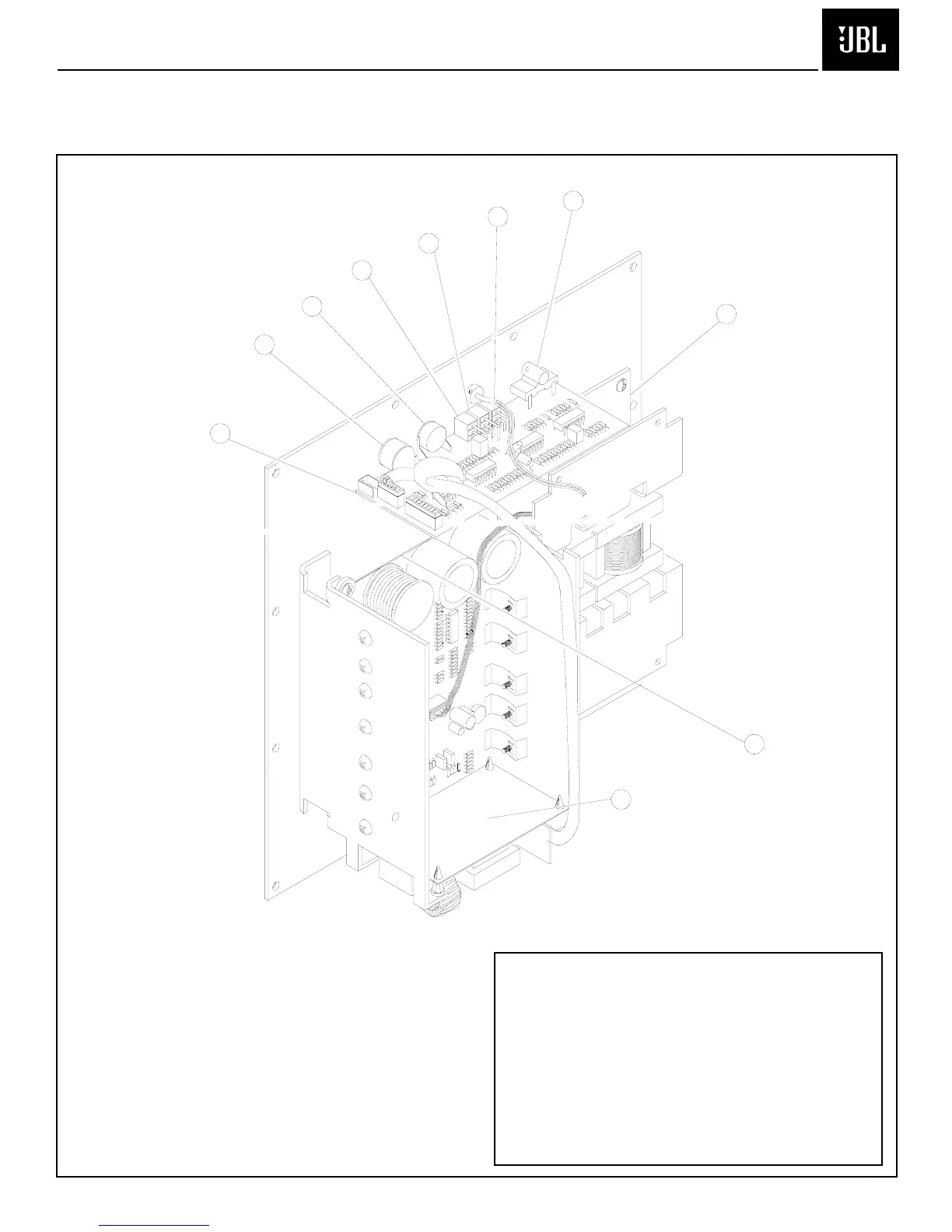

JBL HTPS-400 THX - Exploded View of Amplifier

HTPS-400 SUBWOOFER
13
HTPS-400 Amplifier
6
4
5
4
3
2
7
1
9
00349
8
1 FEATURE BOARD
2 POTENTIOMETER, 50K DUAL, CROSSOVER RP0036
3 POTENTIOMETER, 10K SINGLE, GAIN RP0063
4 SWITCH, SPDT TOGGLE, EQ & PHASE SR0007
5 SWITCH, 3P TOGGLE, AUTO ON/OFF SR0013
6 DUAL RCA HORZ MT JACKS JC0106
7 POWER SUPPLY BOARD
8 LINEAR BOARD
9 EMI BOARD
