JBL LSR28P - Page 57

57
LSR28P

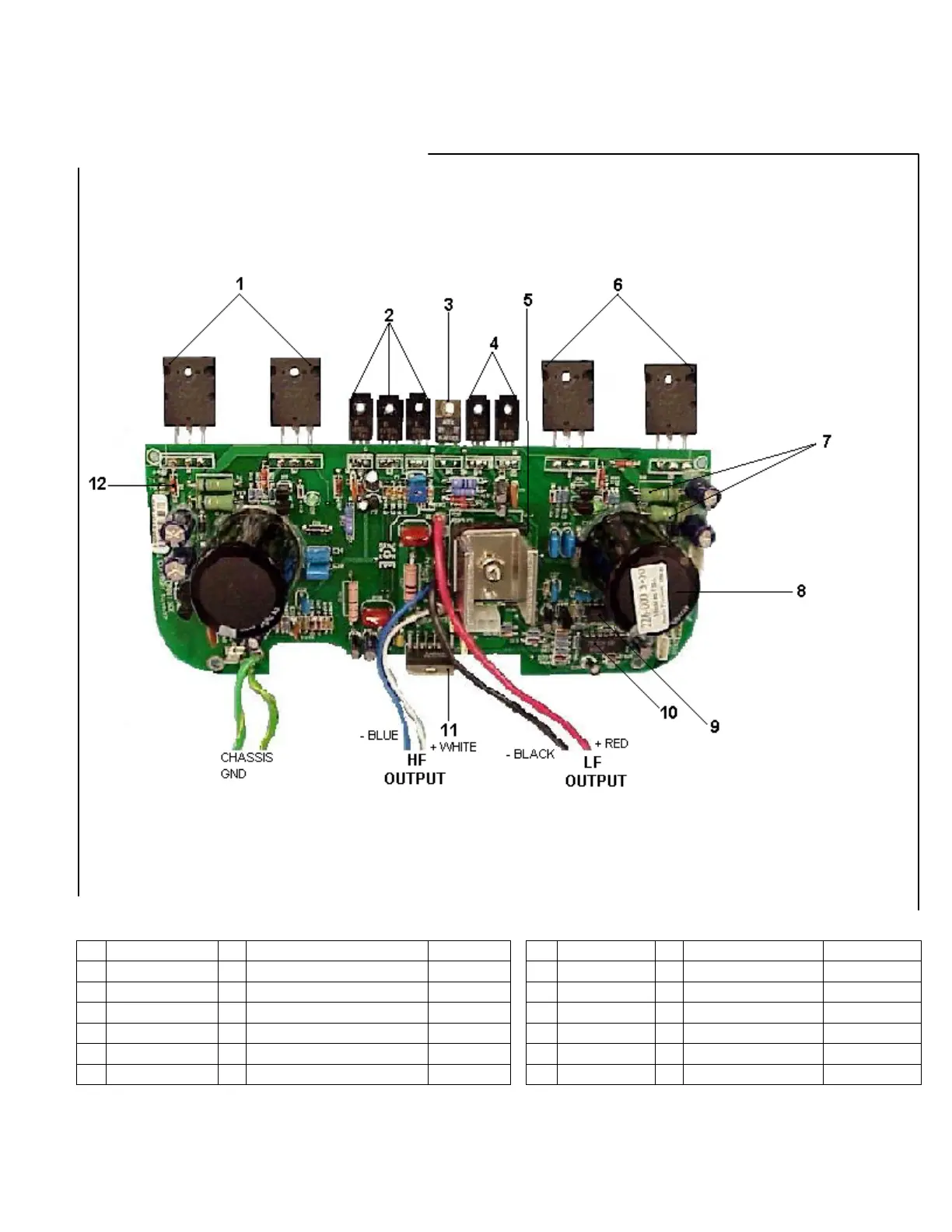

COMPONENT EXPLODED VIEW
COMPONENT PARTS LIST
Item Part No. Qty. Description Ref.Des. Item Part No. Qty. Description Ref.Des.
1 682-00011-00 2 XSTR,NPN, 2SC3281 Q6,Q7 7 632-71008-50 4 RES.10 OHM 5% 3W R6,R8,R23,R25
2 682-00006-00 3 XSTR, NPN, 2SD1763A Q1,Q2,Q3 8 604-06109-60 2 CAP,10,000 UF, 63V C16,C17
3 548-00015-00 1 SW, THERM, 67F090 SW1 9 684-00003-00 1 IC,NJM4560D U1
4 682-00007-00 2 XSTR, PNP 2SB1186A Q4,Q5 10 684-00006-00 1 IC,NJM2901N U3
5 676-00016-00 1 DIODE,BRIDGE,KBPC1502W D13 11 72-0015 1 IC.LM3886 U2
6 682-00010-00 2 XSTR, PNP, 2SA1302 Q8,Q9 12 633-32207-50 4 RES,FUSE,2.2 OMH R1,R2.R3.R5
