JBL MR-145 - Control Functions and Operations; CD and Radio Control Buttons; Audio, Mode, and Special Function Controls

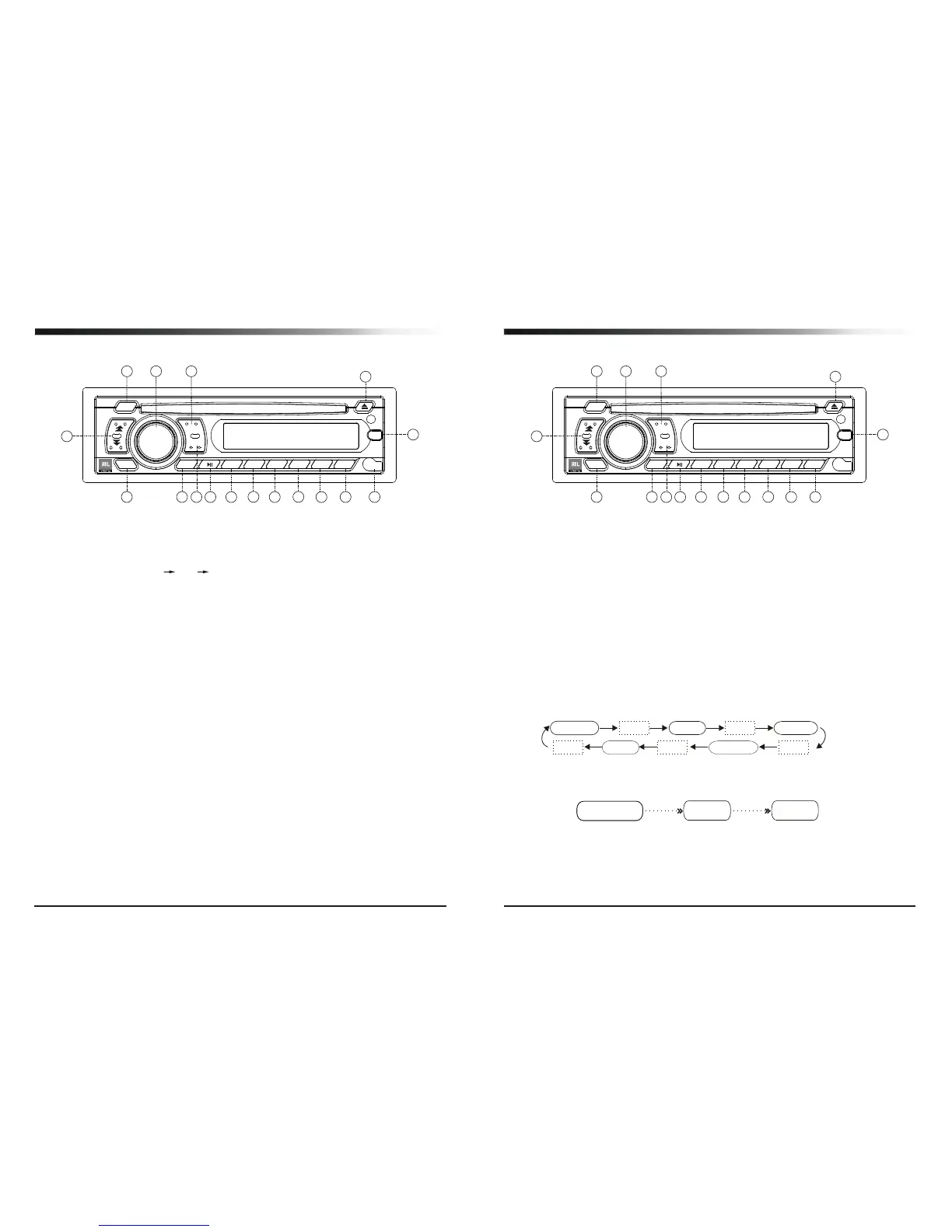

1. CD eject button
2. Electronic function SELECT button, Volume control knob
3. MOD button ( Radio CD AUX IN )
4. IEQ button ( FLAT - CLASSIC - POP - ROCK )
5. POWER ON/OFF button
6. BD/LD button ( FM1, FM2, FM3, AM1, AM2) / LOUD button
7. Radio tune UP/DOWN, CD track UP/DOWN
8. CD play / pause, radio preset 1 button
9. CD intro Scan button, radio preset 2 button
10. CD repeat track button, radio preset 3 button
11. CD random play button, radio preset 4 button
12. Radio preset 5 button
13. Radio preset 6 button
14. MUTE button
15. T/F button
16. A.PS - Auto Preset Scan button
17. AUX IN Hole
7
Identification of Control Functions
1. POWER ON/OFF button (5)
Push the button (5) to turn on the unit. Push the button again to turn off the unit.
2. SELECT button (2)
1) Audio control ( VOLUME / BASS / TREBLE / BALANCE / FADER )
Press the select button quickly to select the following features;
"VOL" display - volume control > press key (2)>
"BAS" display - bass tone control >press key (2)>
"TRB" display - treble tone control > press key (2)>
"BAL" display - balance control > press key (2)>
"FAD" display - fader control > press key (2)>
If the key or one of the keys is not pressed within 5 seconds, the radio automatically
switches into volume level control mode.
These settings are indicated on the display window.
2) Beep 2nd , I-Vol , Area Selection
When the select button is pressed over 2 seconds, the unit will be operated as below:
a. Beep 2nd
On the beep 2nd, you can control the beep on or beep 2nd by turning the spindle knob.
- Beep on : You can hear "beep" sound when you press all buttons.
- Beep 2nd :You can hear "beep" sound when you press the button over 1.5 secs.
