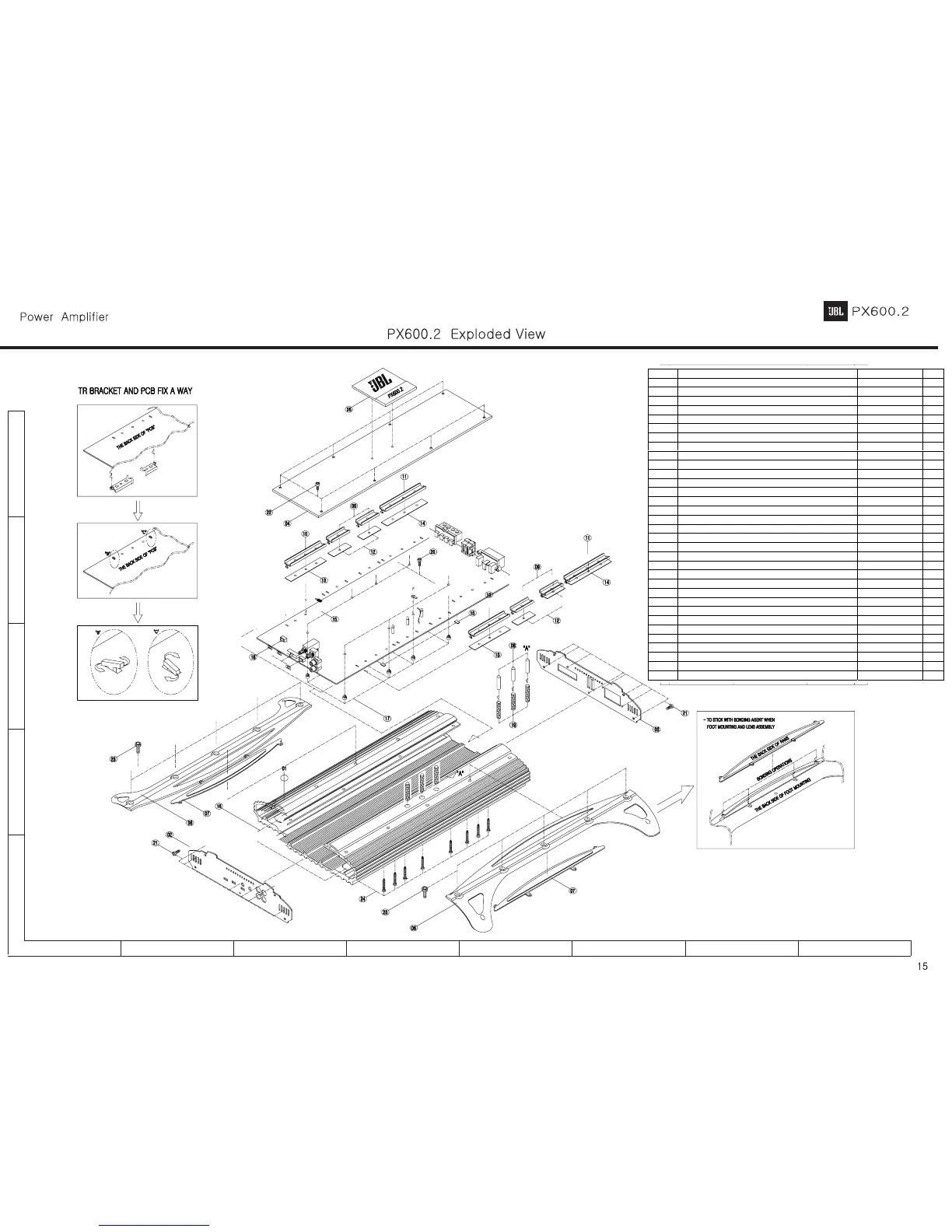

Ref# Description Part Number Qty
01 HEAT SINK MAIN AL/EXTRUSION (L=430mm) HEA-01-575A0 1
02 FRONT PANEL EGI 1.2T PAN-06-560A0 1
03 REAR PANEL EGI 1.2T PAN-06-563A0 1
04 WINDOW ACRYLIC 3.0T COV-22-623B0 1
05 BADGE AL BAD-01-515A0 1
06 MOUNTING FOOT ADC-7 DIE CASTING FOO-01-504B0 2
07 LENS, ACRYLIC (WITH SILKSCREEN) COV-22-549AA 1
LENS, ACRYLIC (WITHOUT SILKSCREEN) COV-22-549A0 1
08 INDICATOR ACRYLIC (CLEAR) ILL-22-503A0 3
09 BRACKET TR(A) CR,47 X 15 X 1.5T (NI-P) BKT-05-519A0 4
10 BRACKET TR(B) CR,91 X 15 X 1.5T (NI-P) BKT-05-520A0 2
11 BRACKET TR(C) CR,103 X 15 X 1.5T (NI-P) BKT-05-521A0 2
12 CUSHION BKT-TR(A) FIBER 43 X 15 X 0.5T SUB-28-572A0 4
13 CUSHION BKT-TR(B) FIBER 87 X 15 X 0.5T SUB-28-573A0 2
14 CUSHION BKT-TR(B) FIBER 99 X 15 X 0.5T SUB-28-574A0 2
15 CUSHION RUBBER (A) 12 X 7 X 1.6T SUB-33-513A0 3
16 SILICON PAD (SP1000) 22 X 0.3T SIL-34-001A0
17 SUPPORT PCB NYLON L=4.5mm SUP-29-502A0 8
18 SWITCH DECAL FELT 12 X 7 X 0.3T SUB-27-524A0 3
19 TUBE 5 X 40mm SUB-12-576A0 3
20 SCREW STT2 BH 3 X 12 NI-P SC5-NB-30120 8
21 SCREW STT2 BH 3 X 8 BK SC5-BB-30080 14
22 SCREW SML 3 X 6 NI (NO SERRATION) SC1-NL-30060 8
23 SCREW SML 4 X 10 NI-P SC1-NL-40100 10
24 SCREW STT1 PH 4 X 25 BK SC4-BP-40250 16
