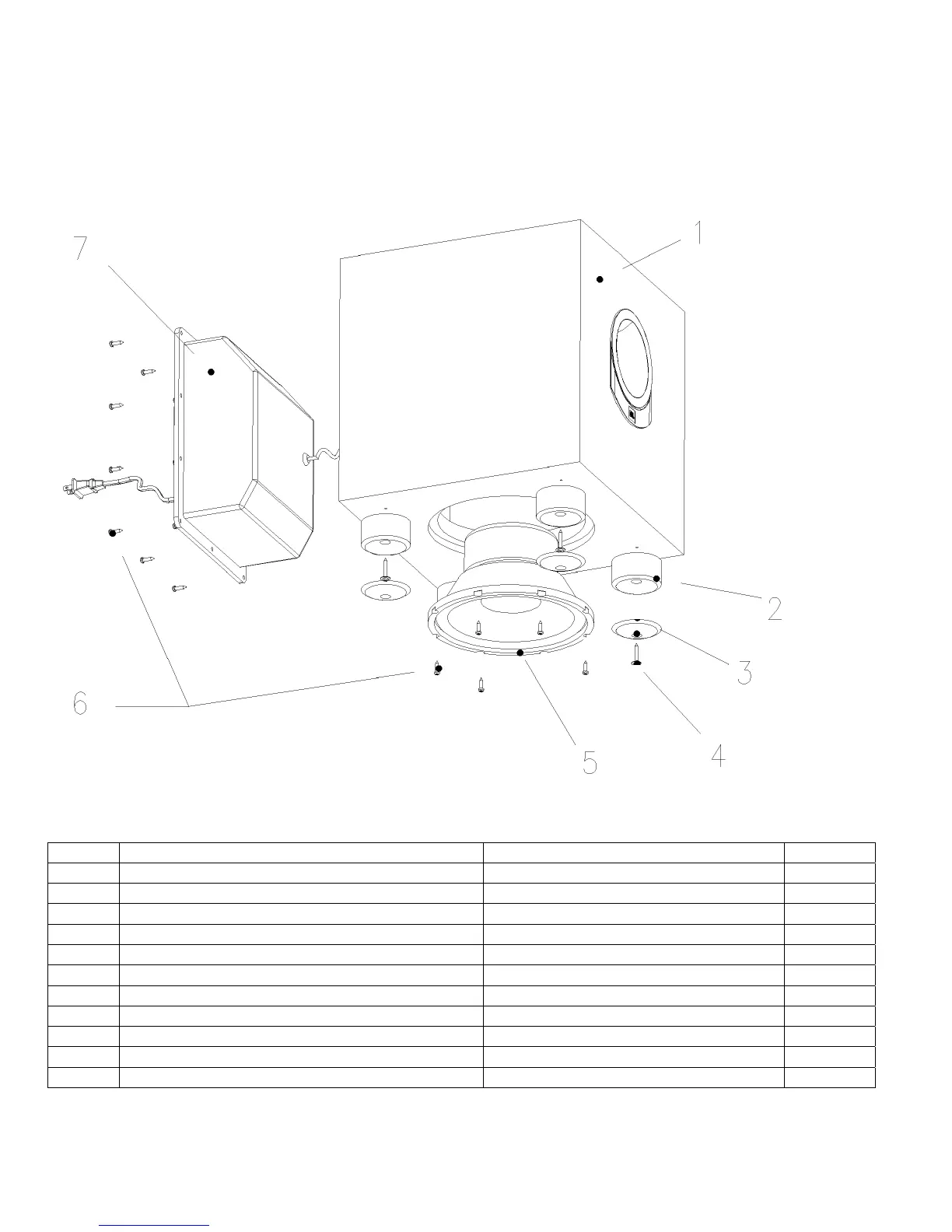

SUB150/160/180 EXPLODED VIEW
Ref# Description Part Number Qty
1 SUB150/160/180 CABINET NOT FOR SALE 1
2 FOOT – MAIN PLASTIC BODY (SCS150SI) WI5447 4
“ (SCS160SI) 321-ABS-00008 4
“ (SCS180.6) 321-ABS-00008-0LA 4
3 FOOT – RUBBER BOTTOM (SCS150SI) WI5448 4
“ (SCS160SI/180.6) 321-ABS-00009 4
4 FOOT SCREW T4*30L 06-T43005 4
5 10” WOOFER 25MF12DZB-DW02 1
6 AMPLIFIER/WOOFER SCREWS T4*20L 06-T4205012 15
7 SUB150/160/180 AMPLIFIER NOT FOR SALE 1
