JBL SF22SP/230 User Manual

JBL SF22SP/230
COMPONENTS
JBL SF22SP
4
5
6
7
8
9
10
11
12
13
14
3
2
1
4
5
67
89
10
10
3
2
2
1

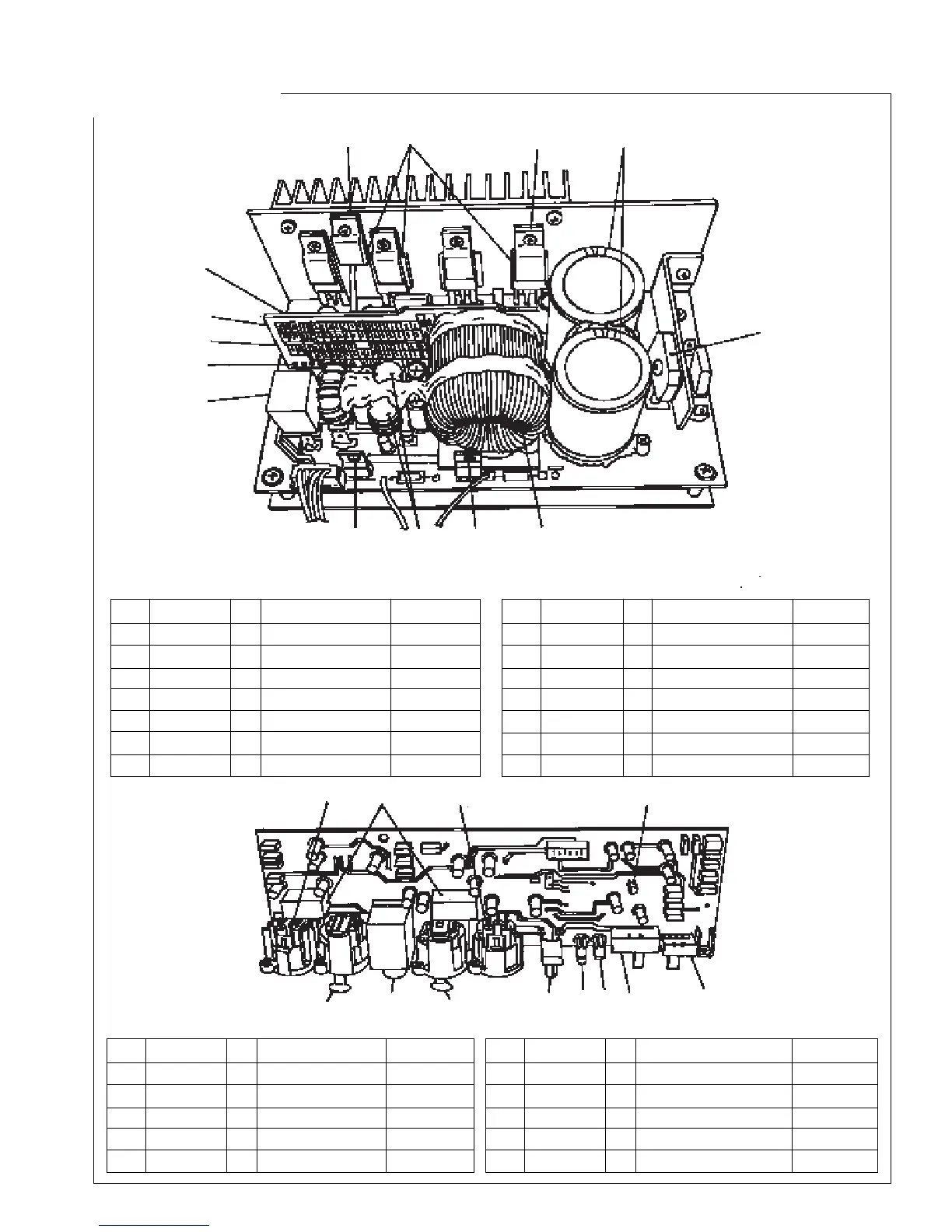

INPUT BOARD
MAIN BOARD
COMPONENT PARTS LIST: Main PCB 351044-001
Item Part No. Qty Description Ref. Des.
1 351047-001 1 TSE-103 K L:50MM TH1
2 351056-001 4 IRFP250N Q11,13,15,17
3 351036-001 5 Brkt Pwr Transistor P. Transistors
4 351049-001 2 10000 UF63V C1, C4
5 351059-001 1 400V, 8A BR1
6 351053-001 1 70UH L8
7 351060-001 1 LM317T Q6
Item Part No. Qty Description Ref. Des.
8 351051-001 2 30MH L9, L10
9 351061-001 2 LM337T Q8
10 351070-001 1 48VDC RELAY RLY1
11 351052-001 1 56 UH L12
12 351072-001 1 SF22SP DRIVE PIN 1 A
13 351398-001 1 7 PIN CONN
14 331399-001 1 11 PIN CONN
COMPONENT PARTS LIST: Input PCB 351086-001
Item Part No. Qty Description Ref. Des.
1 351104-001 2 TRS-5VDC K1, K2
2 351098-001 2 PN: NC3MAH JK201,JK204
3 351090-001 1 J113 Q206
4 351103-001 1 PO12BA-PA8 SW S202
5 351102-001 1 P242BLB-PC10 SW S201/SW201
Item Part No. Qty Description Ref. Des.
6 351089-001 PN: LT6431-81 D213
7 351088-001 1 PN: LT6421-81 D210
8 351087-001 1 PN: RD09L1120032-EJ VR201
9 351100-001 1 PN: SCJ628R3 NAS1B00 JK1
10 351099-001 2 XLR (NEUTRIK) JK202,JK204
