COMPONENTS

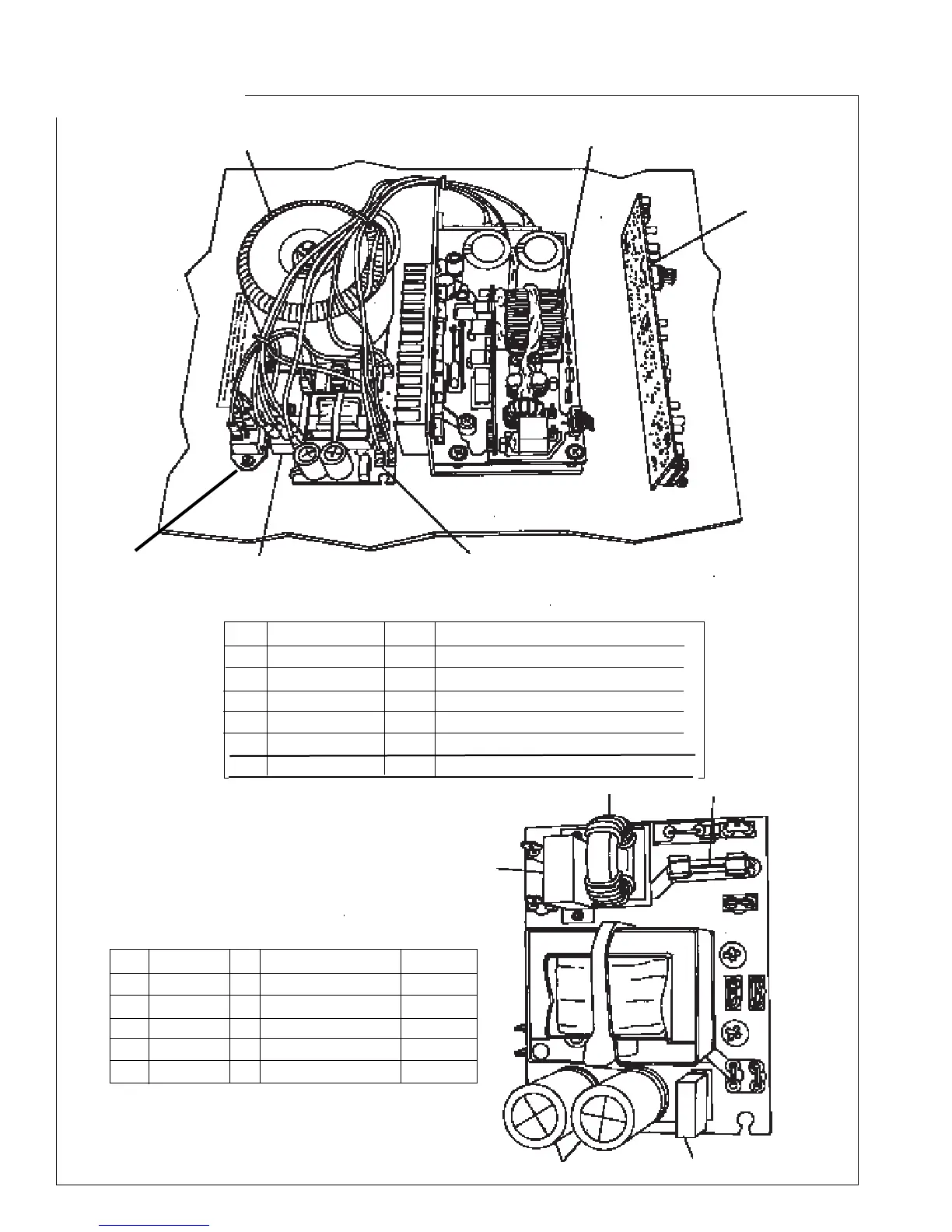

FINAL ASSEMBLY
FUSE – PT2 BD
COMPONENT PARTS LIST: Final Assembly
COMPONENT PARTS LIST: Fuse PT2 BD 351105-001
2
3
4
5
5
4
3
2
1
1,6
Item Part No. Qty Description
1 351032-001 1 PN:TTO-10654-01 Toroid Transformer 120V
2 351044-001 1 Main
3 351086-001 1 SF22SP Pre PCB
4 351105-001 1 Fuse/PT2 BD
5 351255-001 1 Power Switch
6 351619-002 1 PN;TTO-10655-02 Toroid Transformer 220V
Item Part No. Qty Description Ref. Des.
1 351109-001 1 200V, 2A BR2
2 351106-001 2 4700UF/25V 85C C15, C16
3 351107-001 1 PN:XG275M224VHS2 CXAC18
4 351108-001 1 324UH L13
5 351111-001 1 7A/250V 5X20MM F1
Fuse Holder, 351110-001
351804-001
AC Plug
