JBL SRX835P User Manual

14
HPF
LPF
EQ LIMADC
DAC

MIC LINE CONSUMER MIC LINE CONSUMER
CH2
SIGNAL 1
SIGNAL 2 LEVEL 2
LEVEL 1
PRESETS
GAIN
MASTER
SIGNAL
LIMIT
CROSSOVER
DSP
CH1
IN IN
OUT OUT
CH2
MIX
CH1
HF MR LF

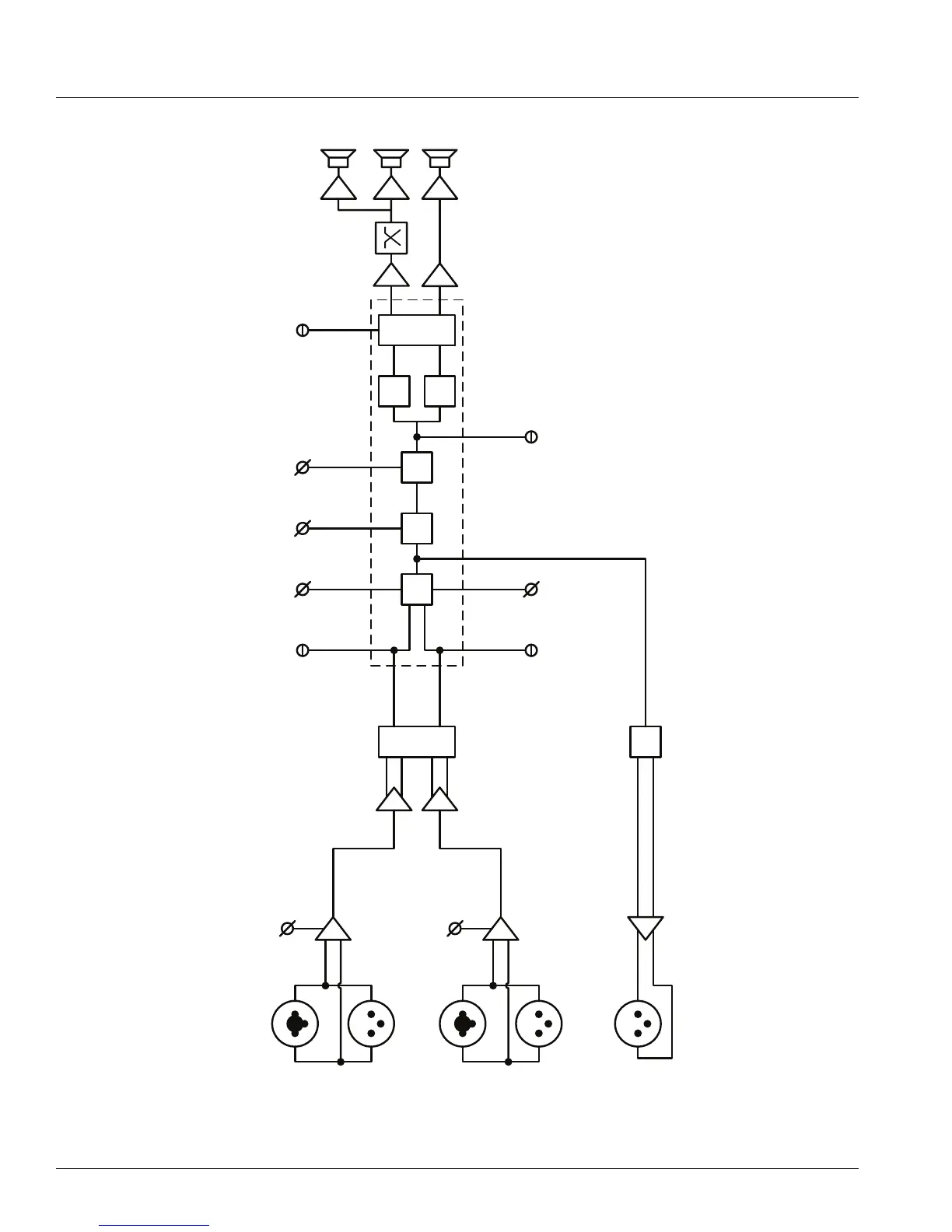

SRX835P - BLOCK DIAGRAM

JBL SRX835P Specifications

General

Power Rating	2000W Peak
Coverage Pattern	60° x 40°
Amplifier Design	Class D
Output Connectors	XLR
Weight	38.2 kg (84.2 lb)
System Type	Self-powered 15" three-way bass reflex
Frequency Response (-10 dB)	35 Hz - 21 kHz
Max SPL	136 dB peak
LF Driver	1 x 15" (380mm)
MF Driver	1 x 6.5" (165mm)
HF Driver	2432H 3 in (75 mm) voice coil compression driver
Input Connectors	XLR/1/4" Combination
Enclosure	18 mm plywood
Suspension / Mounting	M10 Suspension Points
Dimensions (H x W x D)	29.5 x 18.5 x 17.5 inches (750 x 470 x 445mm)
Maximum SPL Output	136 dB peak
Maximum SPL	136 dB peak
Dimensions	29.5 x 18.5 x 17.5 inches (750 x 470 x 445mm)
Height	29.5 inches (750mm)
Width	18.5 inches (470mm)
Depth	477.5 mm (18.8 in)
Net Weight	85 lbs (38.6 kg)
