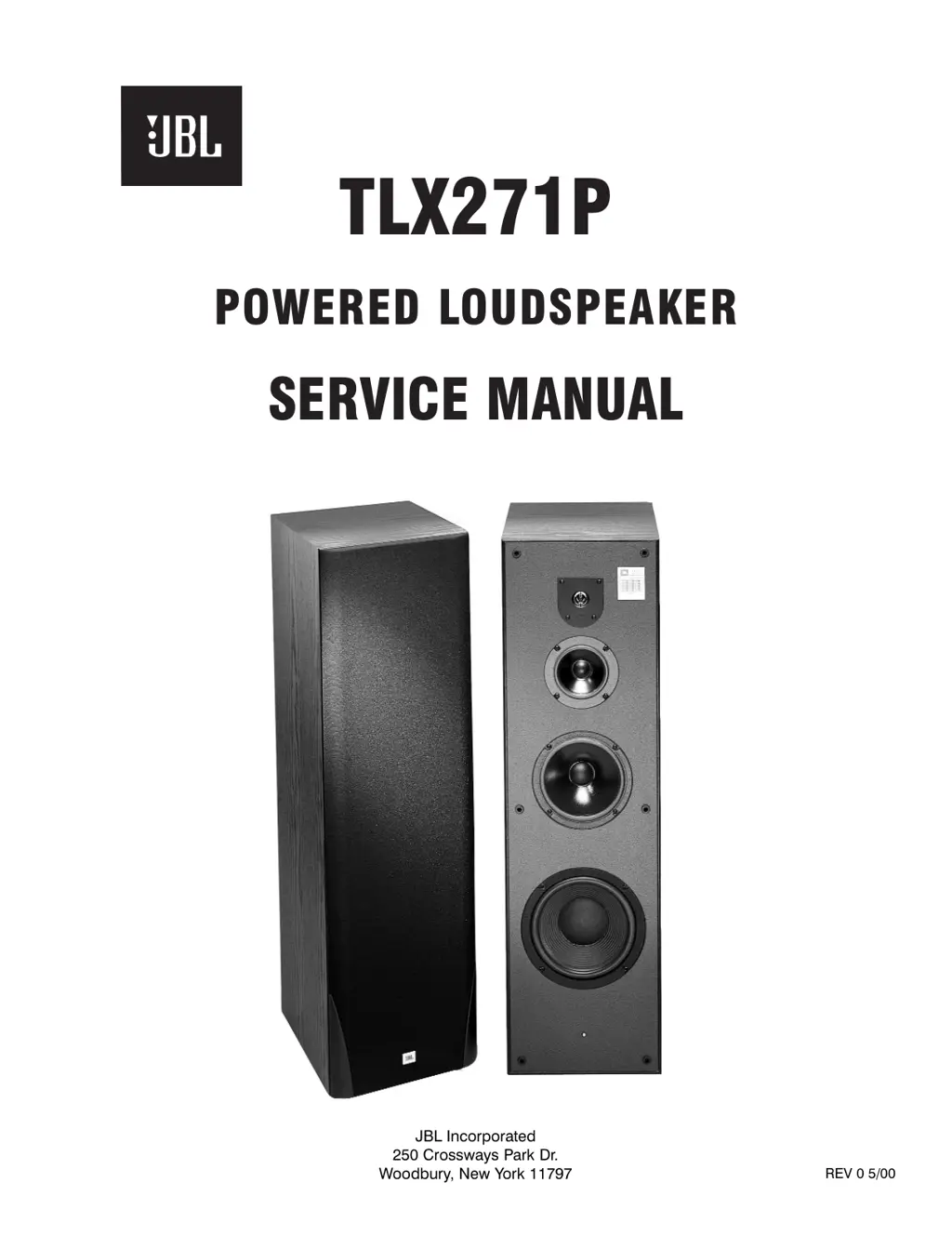

JBL TLX271P - User Manual

Other manuals for JBL TLX271P

Simple Setup Guide6 pages

Questions and Answers

M
Martha KaneAug 5, 2025
What to do if there is no sound from JBL TLX271P when using line-level inputs?
- A
  adam89Aug 6, 2025
  If you're experiencing no sound from your JBL speakers when using line-level inputs, ensure that your receiver/amplifier is powered on and playing a source. Also, confirm that the TLX271P is properly plugged in. Inspect all wires and connections between the receiver/amplifier and speakers, ensuring all wires are connected and none are frayed, cut, or punctured. It's also recommended to review the correct operation of your receiver/amplifier.
M
Michael LopezAug 12, 2025
What to do if there is no sound from JBL TLX271P Speakers when using high-level inputs only?
- K
  Kayla LloydAug 12, 2025
  If you're getting no sound from any of your JBL speakers when using high-level inputs only, first ensure that your receiver/amplifier is on and a source is playing. Also, make sure the TLX271P is plugged in. Check all wires and connections between the receiver/amplifier and speakers, ensuring all wires are connected and none are frayed, cut, or punctured. Finally, review the proper operation of your receiver/amplifier.
M
matthewmcbrideAug 18, 2025
Why is the bass output so low on my JBL speakers?
- D
  david17Aug 18, 2025
  To address low bass output from your JBL speakers, first ensure that the connections to the left and right “Speaker Inputs” have the correct polarity (+ and –). Also, make sure that the TLX271P is plugged into an active electrical outlet.
H
Heather PhillipsAug 23, 2025
What to do if JBL speaker system shuts off as volume is increased?
- M
  Michael GonzalezAug 23, 2025
  If your JBL speaker system plays at low volumes but shuts off as the volume is increased, check all wires and connections between the receiver/amplifier and speakers.
S
Sarah TurnerAug 29, 2025
How to fix a JBL speaker with no sound?
- V
  vincent20Aug 30, 2025
  If there is no sound coming from one of your JBL speakers, check the “Balance” control on your receiver/amplifier. Also, check all wires and connections between the receiver/amplifier and the speakers. Make sure all wires are connected and that none of the speaker wires are frayed, cut, or punctured.

Summary

Specifications

Electrical Specifications

Details line voltage, amp parameters, input sensitivity, impedance, filters, and protection features.

Signal to Noise Ratio

Specifies SNR values for various conditions, critical for audio quality assessment.

Speaker Connections and Operation

Speaker Placement Guidelines

Advises on optimal tweeter height and speaker positioning for best sound quality.

Speaker Wiring and Connections

Explains proper connection of speakers to amplifier terminals for correct phase and sound.

Operation Modes and LED Status

Describes speaker operation modes, power states, and corresponding LED indicator colors.

Troubleshooting Common Issues

No Sound or Low Volume Problems

Steps to diagnose and resolve issues with no sound output or significantly reduced volume.

Bass Output and Phase Correction

Addresses problems like weak bass and incorrect speaker wiring polarity for optimal performance.

Input and Power Connectivity Checks

Guides on verifying input signals and power supply for sound-related troubleshooting.

Service Bulletin

LED Color Cycling Correction Procedure

Details a modification to fix incorrect LED color sequence in TLX271P loudspeakers.

Product Details and Schematics

Acoustic, Electrical, and Physical Specifications

Comprehensive listing of speaker performance parameters, dimensions, and weight.

System Components and Packaging

Lists main speaker parts, drivers, and packaging materials for the TLX271P.

Wiring Diagram and Passive Networks

Visual representation of internal wiring and crossover filter circuits.

Exploded View of Components

Circuit Board Layout

Electrical Parts List

Power Transformer Specifications

Schematic Diagram

Revision Status History

JBL TLX271P Specifications

Audio Specifications

frequency response	30Hz – 25kHz
subwoofer amplifier power	100 watts
recommended maximum amplifier power	150 watts
sensitivity	90dB
nominal impedance	8 ohms
crossover frequencies	120Hz, 600Hz, 4000Hz

Speaker Components
