IMPORTANT NOTES;
All wiring configurations shown above use 8-conductor speaker cables terminated with Neutrik NL8 "Speakons".
Ensure that each conductor in the cable is a minimum of #11 AWGuage (3-4 mm). Users might also consider using
TWO NL8 cables for each 4 boxes which are wired in parallel at the rack for a total of 4 cables running to the cluster.
JBL VT4889:
The HF section of a VT4889 has three 2435H drivers (5.3Ω) wired in Series. =16Ω Pins 4±
The MF section of a VT4889 has four 2250H drivers (8Ω) wired in Series / Parallel =8Ω Pins 3±
The LF section of a VT4889 has two 2255H drivers (8Ω) wired Independently =8Ω / 8Ω Pins 2± / 1±

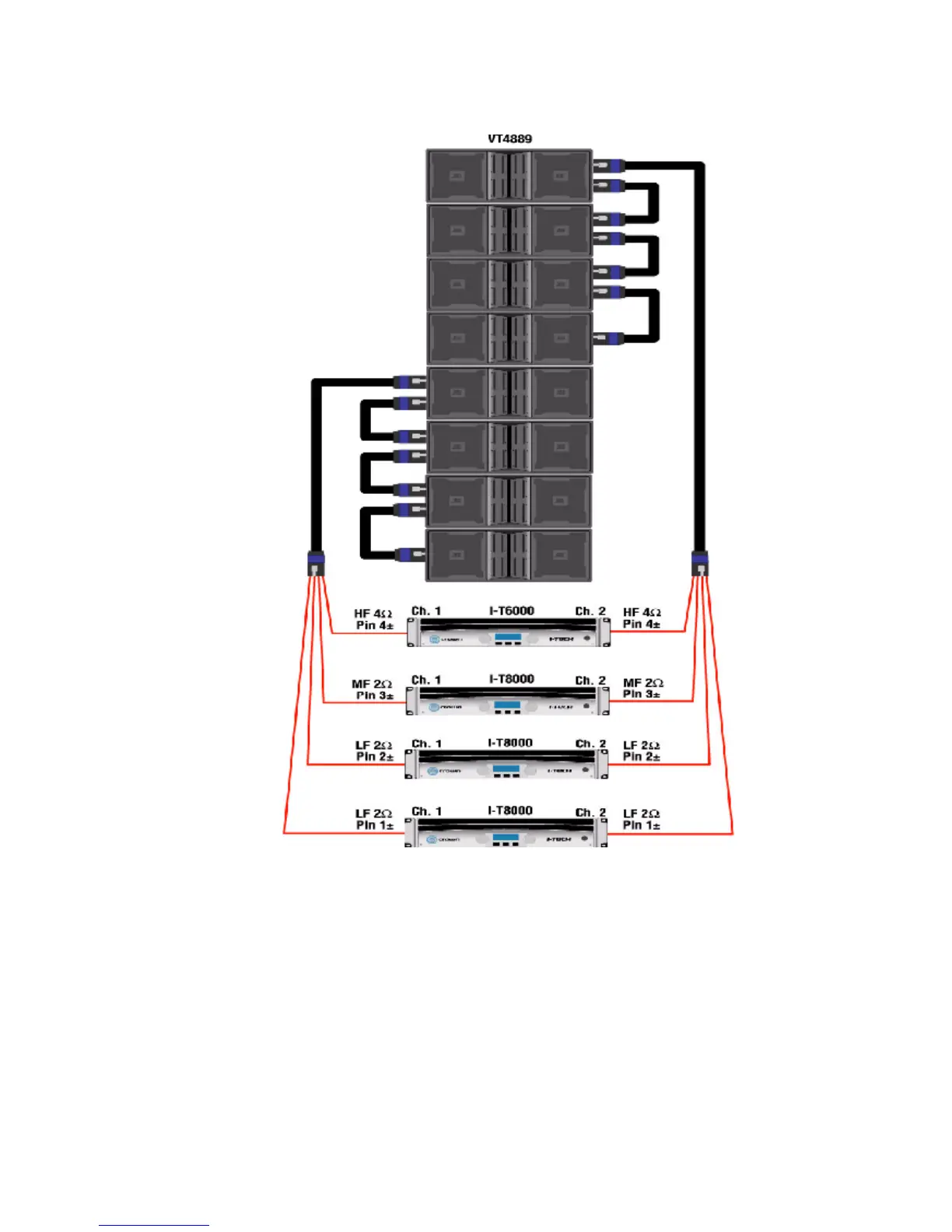

4 x Power Amplifiers
JBL VerTec VT4889 Line Array
Power Amplifier configurations - 8 Box Array
