IMPORTANT NOTES;
All wiring configurations shown above use 8-conductor speaker cables terminated with Neutrik NL8 "Speakons".
Ensure that each conductor in the cable is a minimum of #13 AW (3-4mm).
JBL VT4887:
The MF & HF section of a VT4887 has an internal passive crossover network. =8Ω Pins 4±
This network connects two 2407H HF drivers (8Ω) wired in series
and four 2104H MF (8Ω) wired in Series / Parallel.
The LF section of a VT4887 has two 2168J drivers (16Ω) wired in Parallel. =8Ω Pins 3±
JBL VT4881:
The single 15" 2256G VLF device has two 8Ω coils wired independently. =8Ω/8Ω Pins 1±, 2±

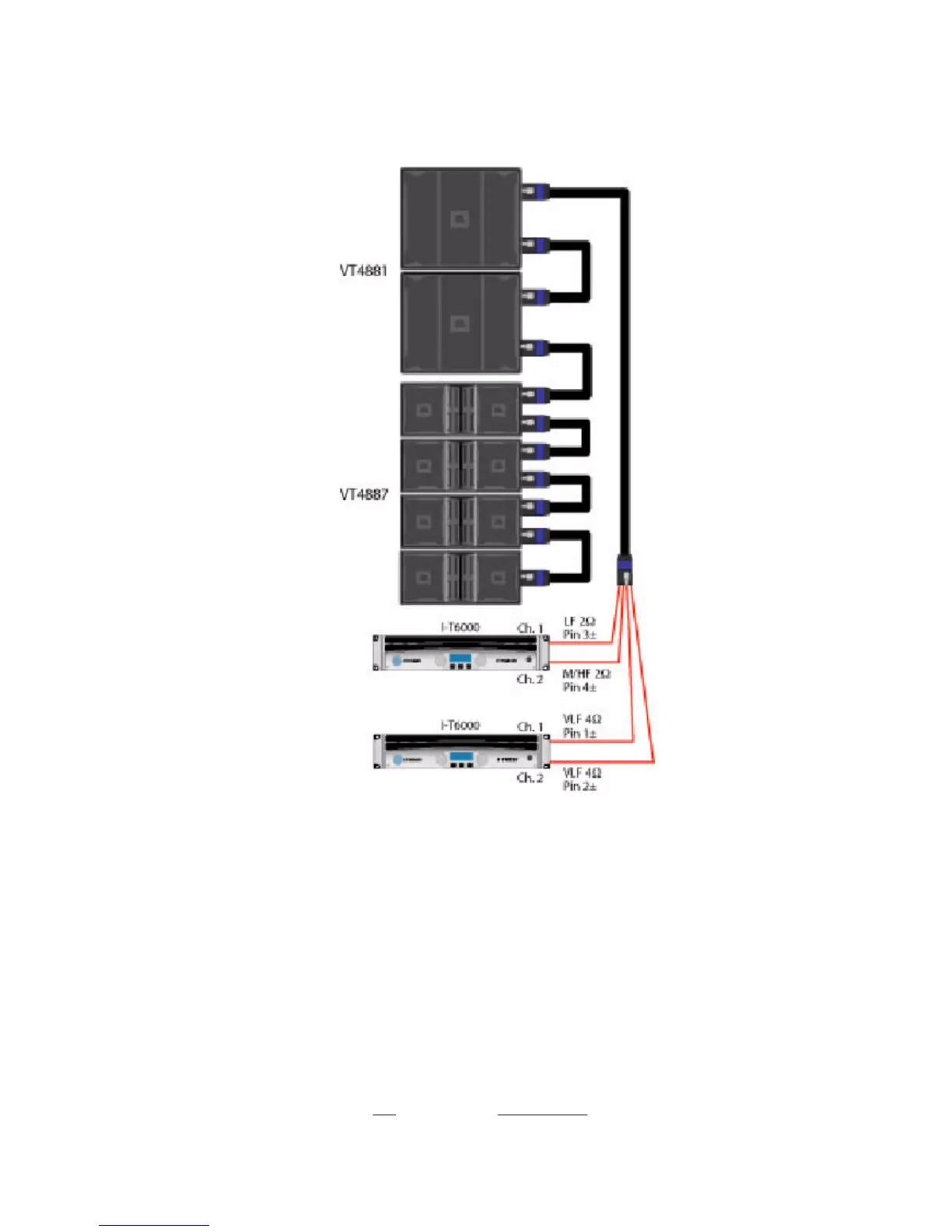

2 I-T6000 Power Amplifiers
JBL VerTec VT4887 with VT4881
Power Amplifier configurations - 4 +2 Box Array
