JBL VP7212 - Page 2

Waveguide
338650-001
Gasket
351577-001
Screw (10)
804-41110-20
10-32 x 1 1/4
PAN,PH,BLK ZINC,
LCS
Low Freq, Driver
2452H-SL
(352328-003X)
Diaph Kit
D8R2452
Stud (4)
75815
#1/4-20 x 1.5 LG
Washer (4)
845-00110-08
#5/16 x .08
FLT PLREGBLK,
ZINC,CS
Nut (4)
834-30010-00
1/4-20 Keps
BLK ZINC, LCS,
RIGHT
Handle Assembly (2)
363366-001
Small
T-Nut (8)
61860
8-32x11/32
T-Nut (32)
61861
10-32x7/16
Step Barrel
Mounting Support (6)
381-00023-01
90 Degrees 2x M10
Screw (8)
883-41110-08
8 x 1/2
PAN,PH,PB,BLK
ZINC,LCS
Bolt (9)
352051-001
M10 x 25MM
HEX, BLK
Rear Mounting Bracket (2)
363926-001
Screw (4)
883-41110-08
8 x 1/2
PAN,PH,PB,
BLK ZINC,LCS
Amp Board
w/Modulator PCB
5009380
Input Board
5009382
Interface PCB
5009381
Screw (10)
804-51110-12
10-32 x 3/4
OVAL, PH, BLK
ZINC,LCS
Wire Harness
363640-001
Screw (2)
883-11100-08
8 x 1/2
FLT,PH, PB,CLR
ZINC, LCS
Amplifier Trim
363560-001
Screw (20)
803-51010-16
8-32 x 1
OVAL, PH,BLK
ZINC, LCS
Handle Backing
Plate (4)
363614-001
Screw (8)
883-11100-08
8 x 1/2
FLT,PH,PB,CLR
ZINC,LCS
T-Nut (4)
804-90003-00
1/4-20
Short Barrel
Pole Mount
365645-001
Screw (4)
806-61010-16
1/4-20 x 1
FLAT 100, PH,
BLK ZINC
Grille Support (2)
365653-001
Driver, Low Freq.
2262FF
(363946-001X)
Cone Repl
C2X2R2262
Gasket
339391-001
Rear 12”
Screw (8)
804-01110-16
10-32 X 1
FIL,PH, BLK ZINC,LCS
Dome
71646-001
Grille Assembly
365659-001
Screw (4)
804-51110-40
10-32 x 2 1/2
OVAL,PH,BLK ZINC,
LCS

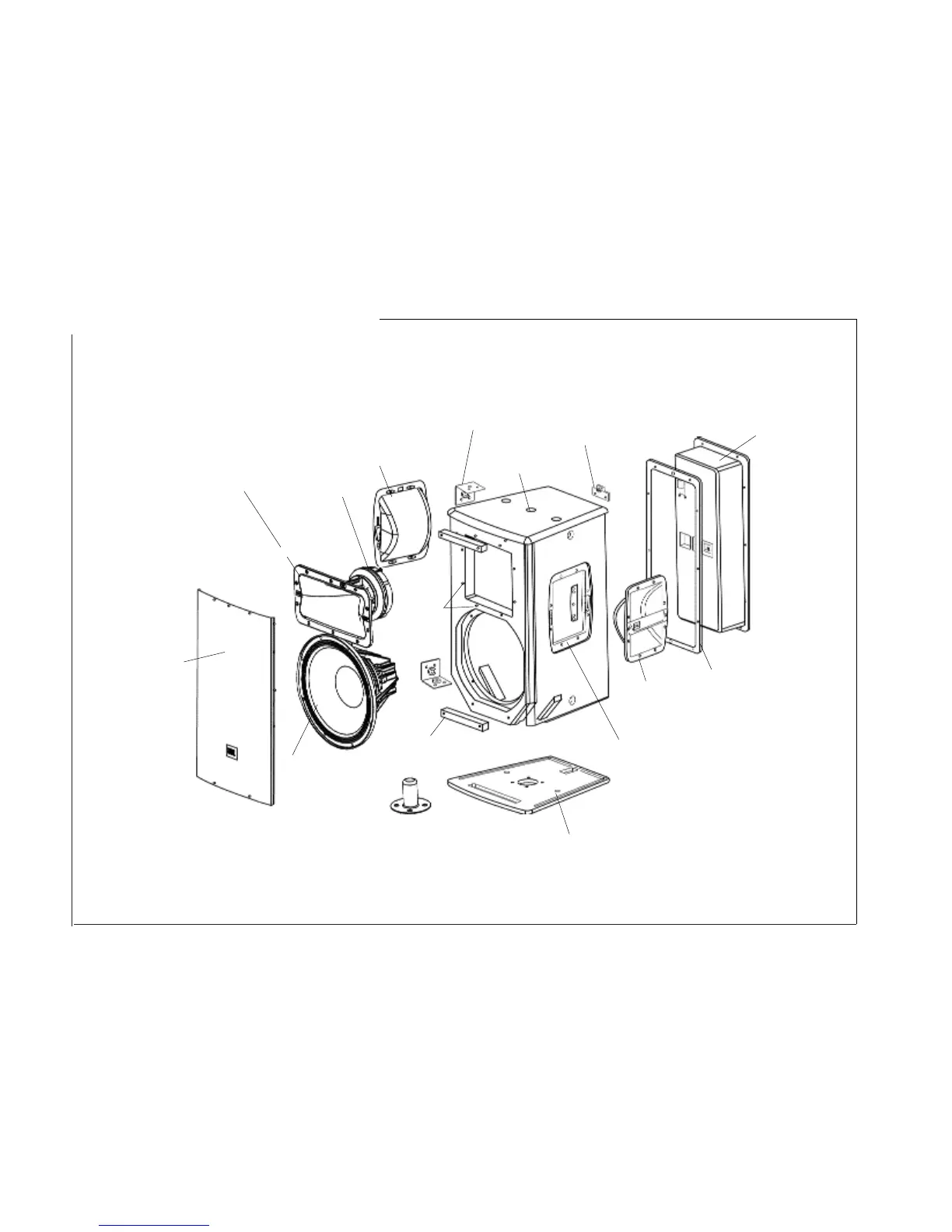

COMPONENT EXPLODED VIEW
JBL VP7212/95DPC
JBL VP7212/95DPC
Enclosure Assembly
VP7212-95DCP
(Not Available for Sale)
