JBL VRX932LA-1 - Crossover Schematic; Crossover Network Components; Input and Output Connections

JBL VRX932LA-1

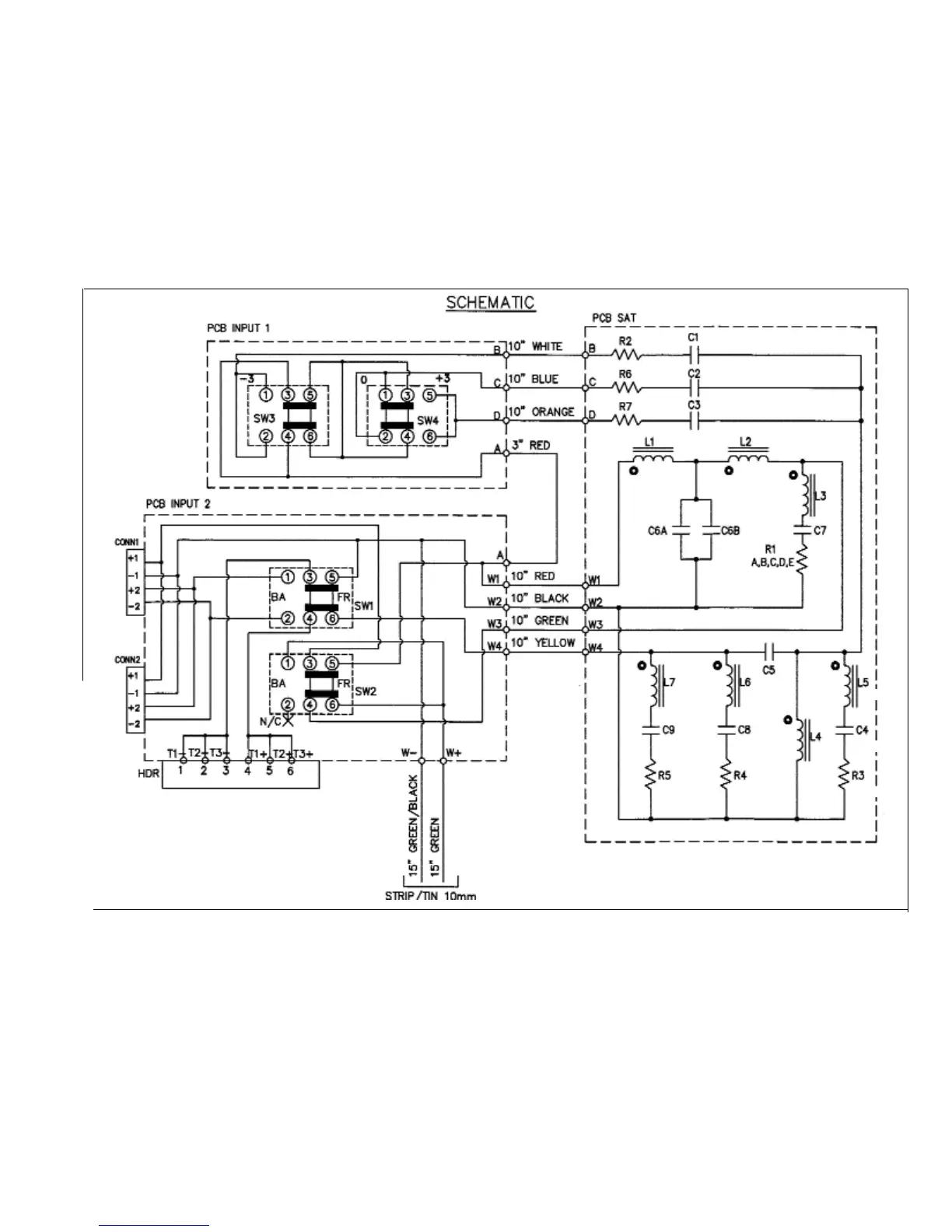

SCHEMATIC 443853-001
JBL VRX932LA-1
2.1uF, 250V
3.0uF, 250V
4.3uF, 250V
5.1uF, 250V
24uF, 250V
12uF, 250V
12uF, 250V
14uF, 250V
850nF, 250V
2.00mF
0.60mH
4.8mH
20uF,
250V
0.35mH
0.80mH
0.15mH
0.30mH
100.0 Ohm,25W
4.0 Ohm, 25W
1.8 Ohm, 25W
0.5 Ohm, 25W
20.0 Ohm, 25W
2.5 Ohm, 25W
1.8 Ohm, 25W
Individual Parts for the above crossover are not available.
A complete replacement assembly should be ordered.
