INTRODUCTION TO THE VRX-AF
T

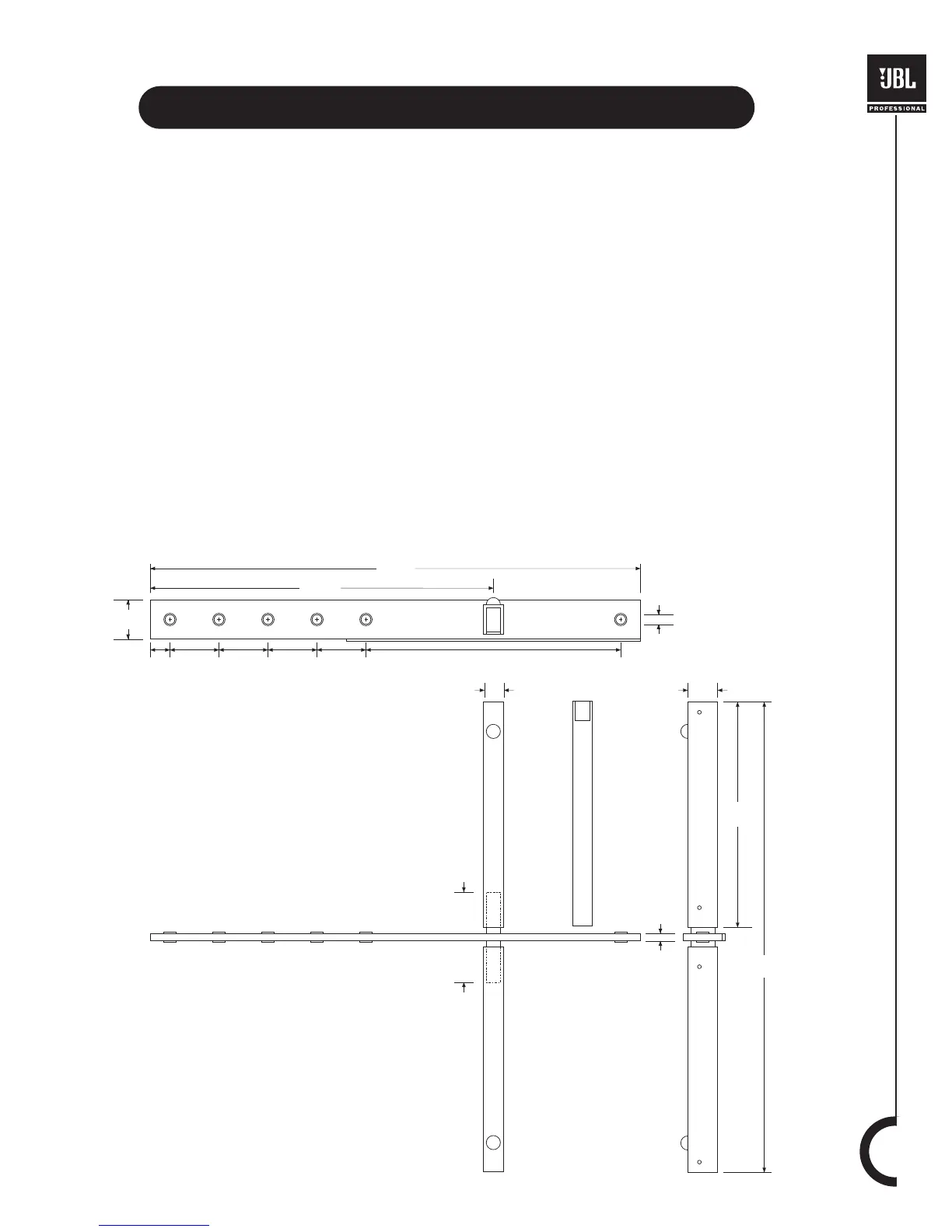

he VRX-AF is an array frame designed to be used for suspension of the VRX932LA and VRX918S
loudspeaker systems. The optional array frame kit includes the following items:
• 1 x center frame
• 2 x side arms
• 4 x quick release pins
•
2 x drop levers
• 2 x 3/8˝ shackles
5
1 mm
(2.0 in)
292 mm
(11.5 in)
117mm
(4.6 in)
610 mm
(24.0 in)
13 mm
(0.5 in)
10 mm
(0.4 in)
25 mm
(1.0 in)
38 mm
(1.5 in)
2
5 mm
(1.0 in)
6
5 mm
(2.5 in)
6
5 mm
(2.5 in)
6
5 mm
(2.5 in)
6
5 mm
(2.5 in)
3
30 mm
(13.0 in)
445 mm
(17.5 in)
6
35 mm
(25.0 in)
Working Load Limit
The VRX-AF and VRX932LA-AF array frames have been precisely engineered to work together with the VRX
line of speakers as a system. The working load limit depends upon the configuration of array frame and speak-
ers being suspended. Please refer to the "DEPLOYING THE SYSTEM" section of this user guide for maximum
allowable load limits when using the VRX-AF or VRX932LA-AF frame.
The VRX-AF and VRX932LA-AF array frames have been specifically designed to work only with the VRX speak-
er line. Use of the array frames in any manner other than as described in this manual could result in damage to
the frame and pose a risk of injury or death.
Please refer to page 14 and 15 of the “DEPLOYING THE SYSTEM” section of this user guide for important safe-
ty and related information regarding the use of the array frame.
