jcb 1T-2 High Tip User Manual

18 Please see operator manual for full details.
A
A

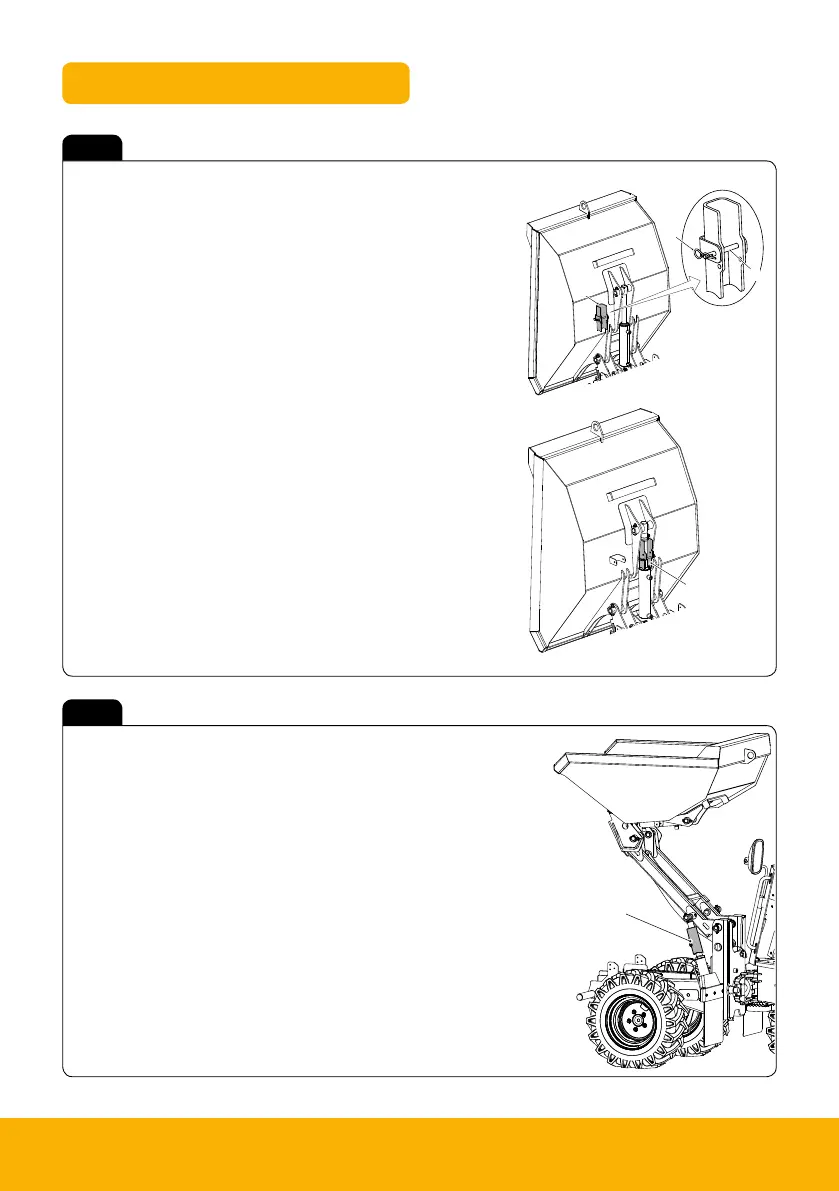

Fig 17
Fig 18
Maintenance Position (Dumper Skip Tipped)
Installation of the safety strut
1. Fully tip the dumper skip.
2. Remove the maintenance strut from its stowage position
and place over the piston rod of the ram.
3. Install the pin to the support and secure with the R clip.
4. Carefully lower the dumper skip until the weight is
supported on the maintenance strut.
A Maintenance strut – Stowage position
B Pin
C R clip
D Maintenance strut – installed position
Maintenance position
A
C
B
D
Maintenance Position (Dumper Skip Raised)
Installation of the safety strut
1. Fully raise the dumper skip.
2. Remove the maintenance strut from its stowage position
and place over the piston rod of the ram.
3. Install the pin to the support and secure with the R clip.
4. Carefully lower the dumper skip until the weight is
supported on the maintenance strut.
A Maintenance strut – installed position
