jcb 1T-2 High Tip - Machine Transport; Tie-Down Points and Decals; Securing Machine on Trailer (45° Angle); Securing Machine on Trailer (35° Angle)

1T-2 High Tip Site Dumper 9
Fig 4
A 45° B 35°
Fig 5
Fig 7
Fig 6

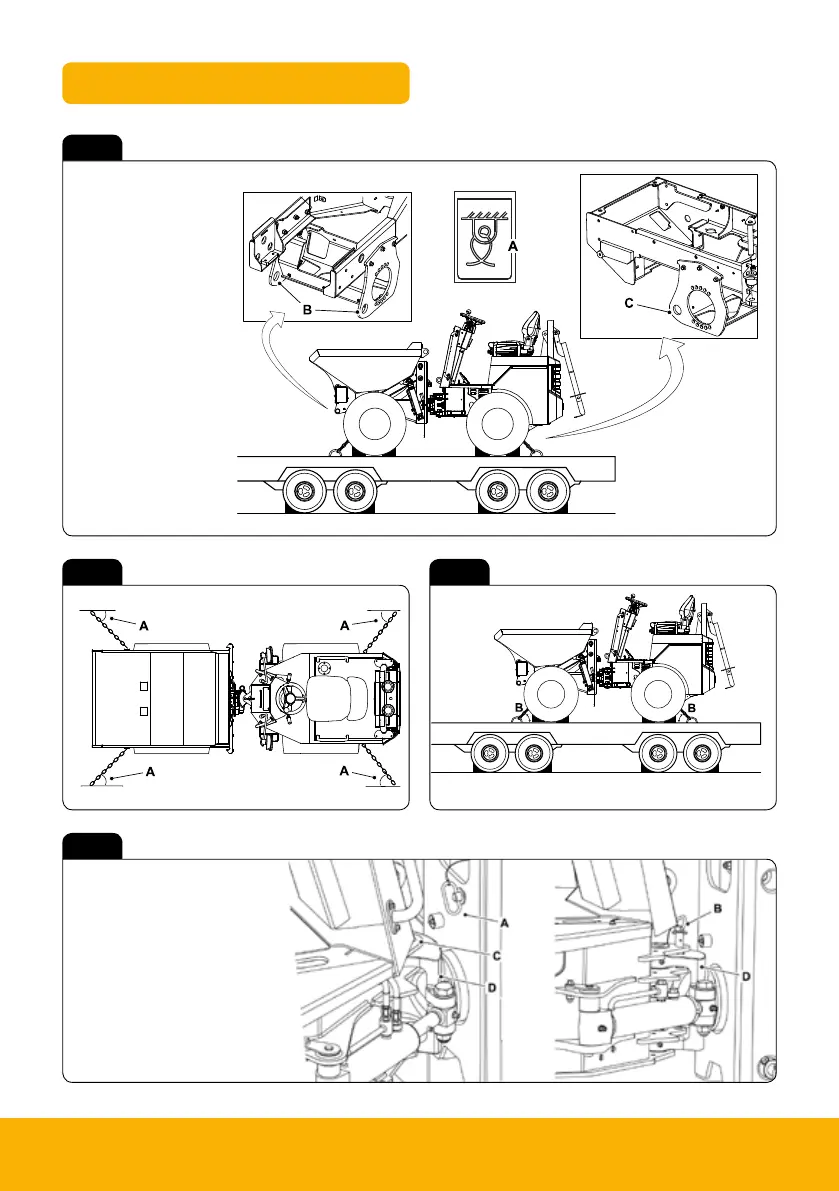

Machine transport
A Tie-down decal
B Front tie-down points
C Rear tie-down points
A Locking pin and
stowage position
B Locking pin in
installed position
C Locking hole
D Articulation joint
