28 Please see operator manual for full details.
Item Description
Machine with
standard tyres
Machine with
narrow tyres
A Overall length mm 3,095 3,095
B Wheelbase mm 1,500 1,500
C Minimum ground clearance mm 263 225
D Width over tyres mm 1,106 980
E Track width mm 850 782
F
Height to front lip of dumper body –
untipped (lowered/raised)
mm 1,134/ 2,259 1,096/ 2,221
G
Height to front lip of dumper body –
tipped (lowered/raised)
mm 452/1,573 414/1,535
H
Height to top of ROPS
(raised, with/without beacon
mm 2,792/2,602 2,754/2,564
H1 Height to top of ROPS (folded) mm 1,624 1,586
J Dump height (untipped/tipped) mm 1,865/3,037 1,827/2,999
K Discharge distance front (lowered/raised) mm 391/ 263 436/308
L Dumper body tip angle degrees 90 90
M Departure angle degrees 36 33
Standard tyres = 255/75-15.3 (8 ply)
Narrow tyres = 7.00 x12 (6 ply)

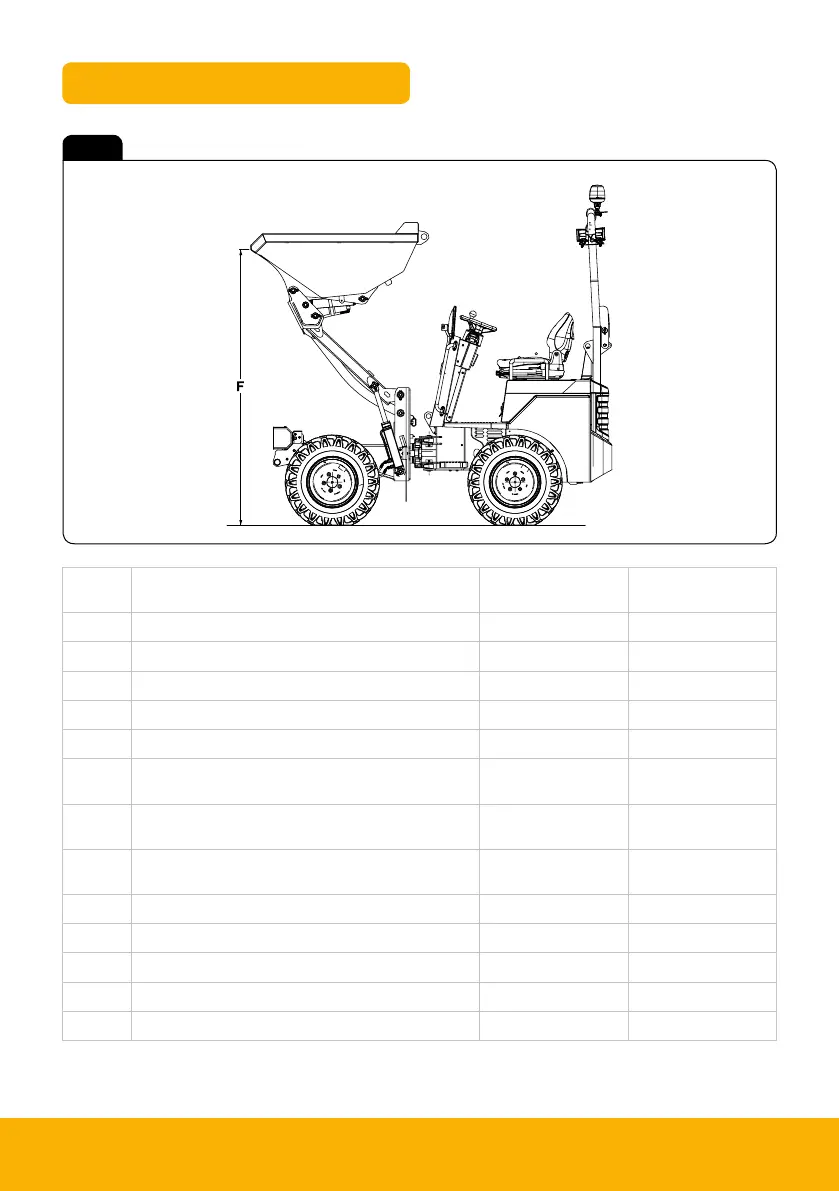

Fig 33
Dimensions
