jcb 215 Service Manual

Air Conditioning (cont'd)
Wiring Continuity Checks

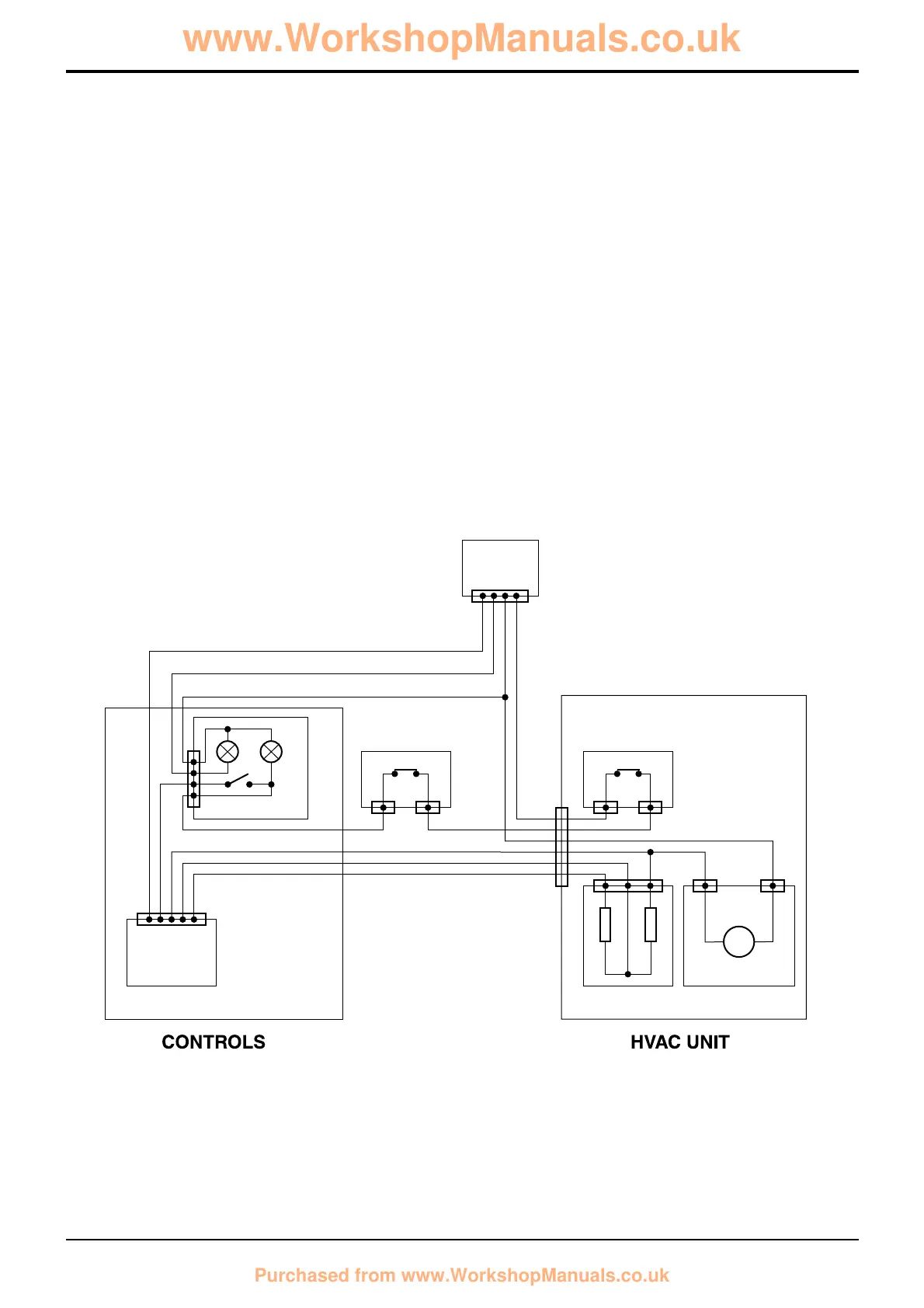

Use the illustration below to complete continuity checks on the HVAC/air conditioning system and heater harness wires.The
harness connects to the main machine harness via connector 1. Refer also to the main machine circuit diagram in Section C
Electrics.
Component Key:
1 Main Machine Harness Connector
2 Air Conditioning ON/Off Switch
2A Panel Illumination Bulb
2B Switch Illumination Bulb
3 Blower Switch
4 Binary Pressure Switch
5 Freeze Protection Thermostat
6 Blower Speed Resistor
7 Blower Unit Motor
10 - 8
Section B Body & Framework
9803/3280
Section B
10 - 8
Issue 1
Fault Finding
M
1
AB
2
3
67
45
A401410
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk

jcb 215 Specifications

General

Engine Power	74 hp
Rated Operating Capacity	2, 100 lbs
Lift Path	Vertical
Tipping Load	4, 200 lbs
Net Engine Power	74 hp
Width over Tires	1, 800 mm
Height to Top of Cab	2, 300 mm
Hinge Pin Height	2, 800 mm
Travel Speed	11 km/h
Travel Speed (High)	11 km/h
