jcb 507-42 Service Manual

15 - Engine
18 - Engine Belt
00 - General
15 - 93 9813/5050-2 15 - 93

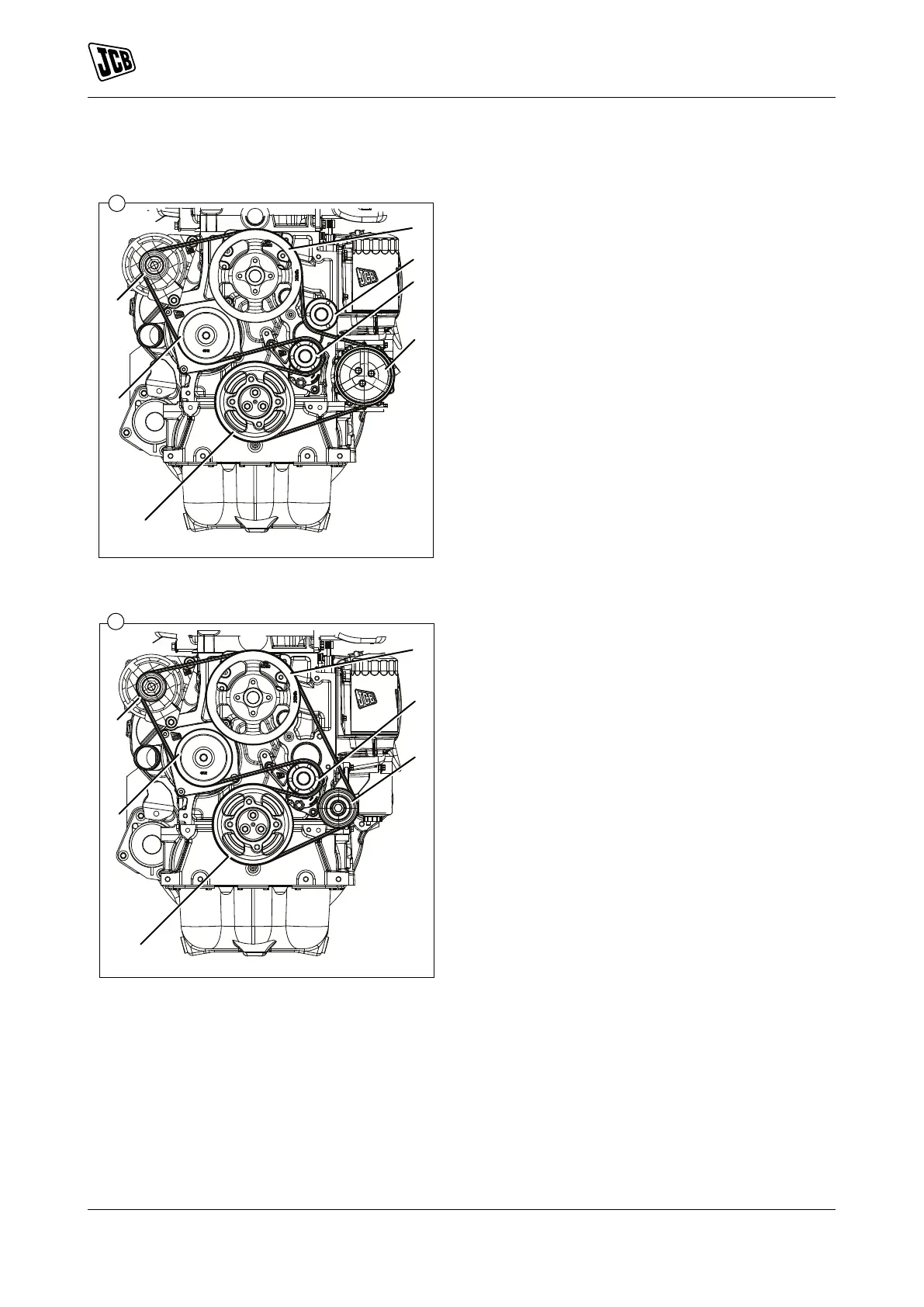

Figure 232. C - With air conditioning com-
pressor, cooling fan pulley installed
7
1
2
3
4
5
6
C
Figure 233. D - Without air conditioning
compressor, cooling fan pulley installed
1
2
3
5
4
6
D
1 Crankshaft drive pulley
2 Coolant pump drive pulley
3 Alternator drive pulley
4 Idler pulley
5 Tensioner pulley
6 Cooling fan drive pulley
7 Air conditioning compressor drive pulley

jcb 507-42 Specifications

General

Brand	jcb
Model	507-42
Category	Front End Loaders
Language	English
