jcb 507-42 Service Manual

15 - Engine
18 - Engine Belt
00 - General
15 - 92 9813/5050-2 15 - 92
Health and Safety
Turning the Engine
Do not try to turn the engine by pulling the fan or fan
belt. This could cause injury or premature component
failure.
WARNING! The engine has exposed rotating parts.
Switch off the engine before working in the engine
compartment. Do not use the machine with the
engine cover open.
Notice: A drive belt that is loose can cause damage
to itself and/or other engine parts.
Component Identification

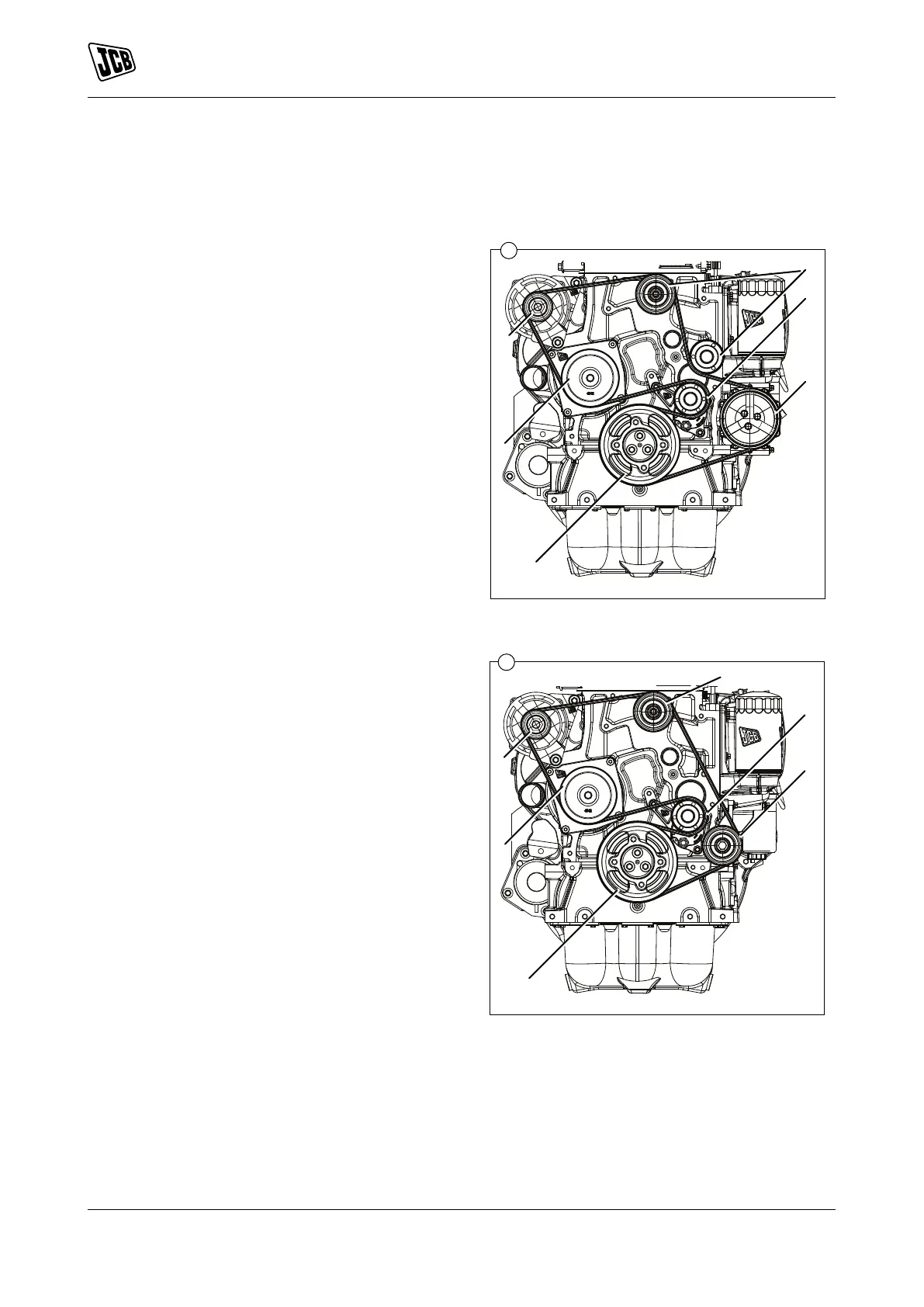

Figure 230. A - With air condition-
ing compressor, no cooling fan
7
1
2
3
4
5
A
Figure 231. B - Without air condi-
tioning compressor, no cooling fan
1
2
3
5
4
4
B
1 Crankshaft drive pulley
2 Coolant pump drive pulley
3 Alternator drive pulley
4 Idler pulley
5 Tensioner pulley
7 Air conditioning compressor drive pulley
