01 - Machine
03 - Safety
27 - Maintenance Positions
01 - 13 9813/7650-2 01 - 13
Lift Arm Raised
1. Install the maintenance strut.
Refer to: PIL 06-69.
(For: 535-v125 [T4F], 540-v140 [T4F], 540-
v180 [T4F])
You can complete most of the maintenance
procedures with the lift arm lowered. Unless a
maintenance procedure instructs you differently, you
must lower the lift arm.
Lift Arm Lowered
1. Park the machine on level, solid ground.
2. Make the machine safe.
Refer to: PIL 01-03.
3. Release the hydraulic pressure.
Refer to: PIL 30-00.
4. Retract and lower the lift arm.
5. Put the attachment flat on the ground.
6. Stop the engine and remove the ignition key. If
the keyless ignition option is installed stop the
engine and wait the specified time.
Duration: 15 s
7. Disconnect the battery to prevent accidental
operation of the engine.
Refer to: PIL 33-03.
8. Make sure there are no loose articles in the
enclosure.
9. If necessary, put blocks against the two sides of
the wheels before you get below the machine.

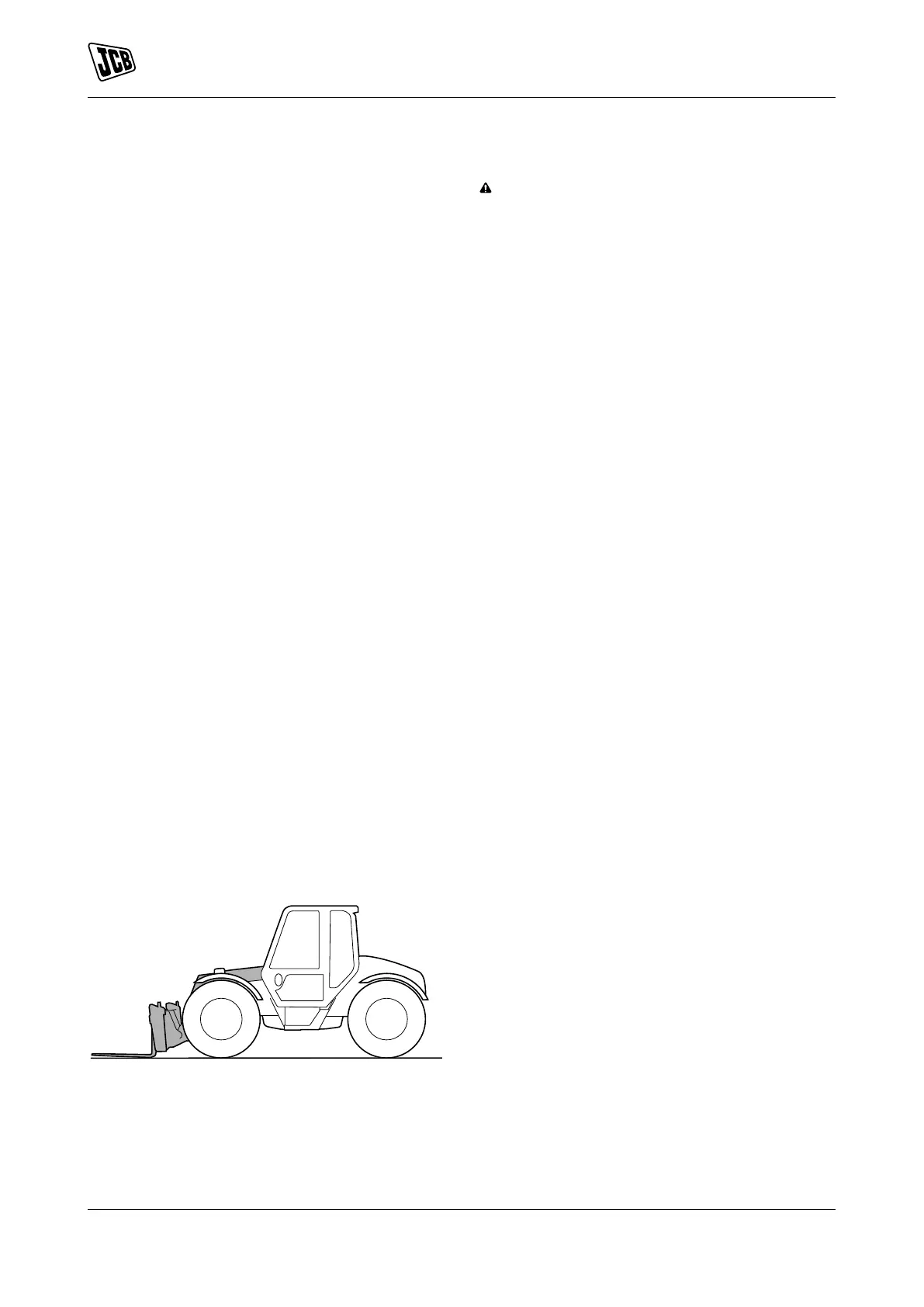

Figure 3.
A Lift Arm Lowered
Lift Arm Raised
1. Install the maintenance strut.
Refer to: PIL 06-69.
Health and Safety
WARNING Maintenance must be done only by
suitably qualified and competent persons.
Before doing any maintenance make sure the
machine is safe, it must be correctly parked on
solid, level ground.
To prevent anyone starting the engine, remove
the ignition key. Disconnect the battery (by means
of the battery isolator if installed) when you are
not using electrical power. If you do not take these
precautions you could be killed or injured.
WARNING Make the machine safe before getting
beneath it. Make sure that any attachments on
the machine are correctly attached. Engage the
park brake, remove the ignition key, disconnect
the battery.
