jcb 540-170 - Page 52

Section 1-5 - General Information
Service Tools
Tool Detail Reference
1-5-10 1-5-10
9803/3750-05 (1-06-00)

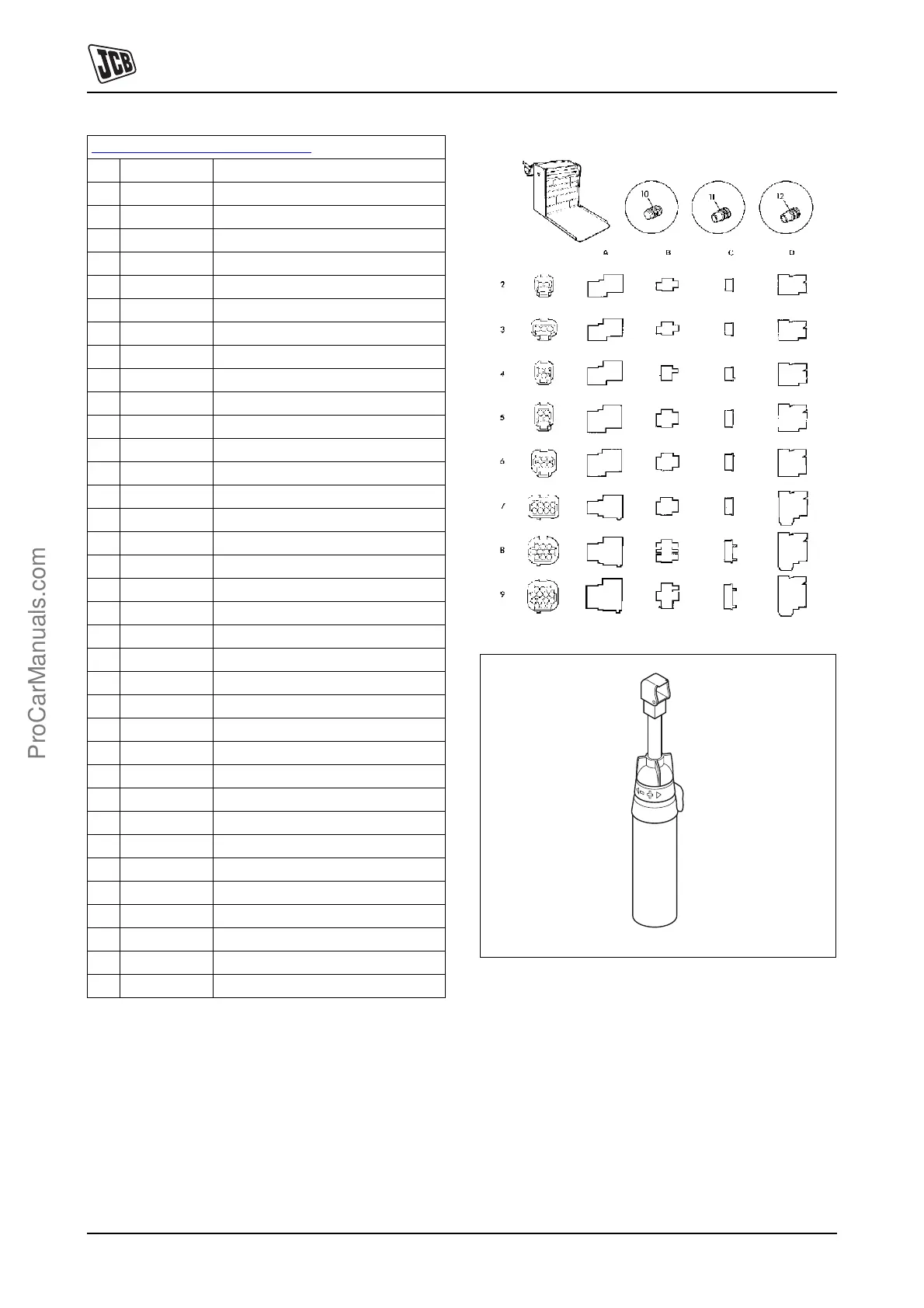

Fig 23. Electrical Repair Kit
K
Electrical Repair Kit ( T 1-5-10)
1 Electrical Repair Kit
2A 7212/0002 2 Way Pin Housing
2B 7212/0004 2 Way Pin Retainer
2C 7212/0003 2 Way Socket Retainer
2D 7212/0001 2 Way Socket Connector
3A 7213/0002 3 Way Pin Housing
3B 7213/0004 3 Way Pin Retainer
3C 7213/0003 3 Way Socket Retainer
3D 7213/0001 3 Way Socket Connector
4A 7213/0006 3 Way Pin Housing (DT)
4B 7213/0008 3 Way Pin Retainer (DT)
4C 7213/0007 3 Way Socket Retainer (DT)
4D 7213/0005 3 Way Socket Connector (DT)
5A 7214/0002 4 Way Pin Housing
5B 7214/0004 4 Way Pin Retainer
5C 7214/0003 4 Way Socket Retainer
5D 7214/0001 4 Way Socket Connector
6A 7216/0002 6 Way Pin Housing
6B 7216/0004 6 Way Pin Retainer
6C 7216/0003 6 Way Socket Retainer
6D 7216/0001 6 Way Socket Connector
7A 7218/0002 8 Way Pin Housing
7B 7218/0004 8 Way Pin Retainer
7C 7218/0003 8 Way Socket Retainer
7D 7218/0001 8 Way Socket Connector
8A 7219/0002 10 Way Pin Housing
8B 7219/0004 10 Way Pin Retainer
8C 7219/0003 10 Way Socket Retainer
8D 7219/0001 10 Way Socket Connector
9A 7219/0006 14 Way Pin Housing
9B 7219/0008 14 Way Pin Retainer
9C 7219/0007 14 Way Socket Retainer
9D 7219/0005 14 Way Socket Connector
10 7210/0001 Dummy Plug
11 7210/0002 Wire Seal (1.4 - 2.2 mm dia.)
12 7210/0003 Wire Seal (2.2 - 2.9 mm dia.)
Fig 24. 892/00350 Butane Heater Assembly
