Section 1-5 - General Information
Service Tools
Rivet Nuts
1-5-24 1-5-24
9803/3750-05 (1-06-00)
Fitting Procedure
1 Drill a hole in the machine body/framework where the
rivet nut is to be fitted. De-burr hole edges.

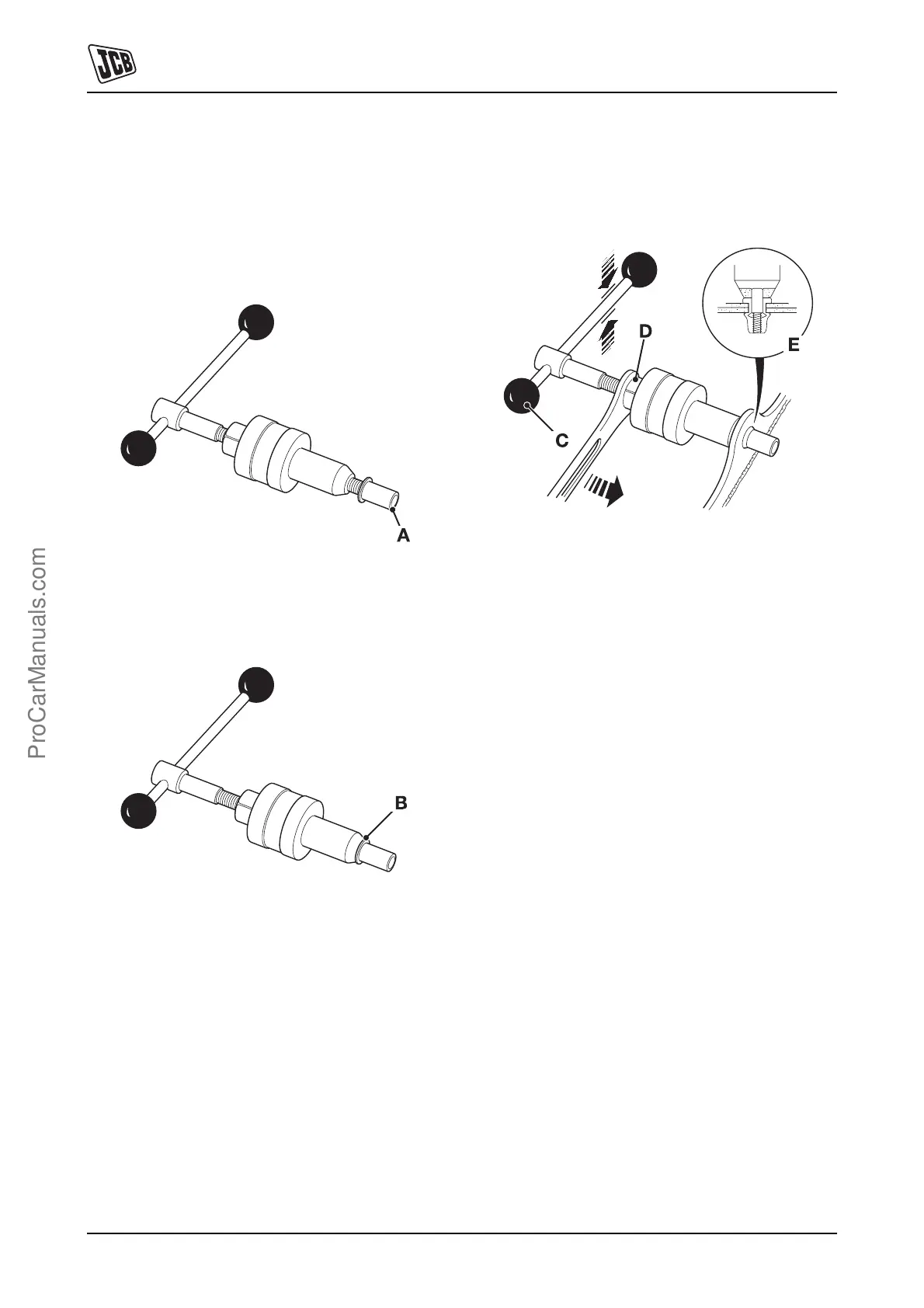

2 Screw the rivet nut onto the mandrel of the installation
tool. The bottom of the mandrel should be in line with
the bottom of the rivet nut 66-A.
Fig 66.
3 Wind the body of the installation tool down the
threaded mandrel until it touches the head of the rivet
nut 67-B.
Fig 67.
4 Insert the rivet nut (assembled to the tool) into the
hole drilled in step 1.
5 Hold handle 68-C and at the same time draw the
mandrel into the installation tool by turning nut 68-D.
The rivet nut will contract in length and form an 'upset'
(smooth bulge) seating itself against the body/
framework 68-E.
Note: The thread of the rivet nut must not be stripped, take
care when 'upsetting' the rivet nut.
Fig 68.
6 Remove the installation tool.
