Section 1 - General Information
Service Tools
Tool Detail Reference
1-20 1-20
9803/9360-3

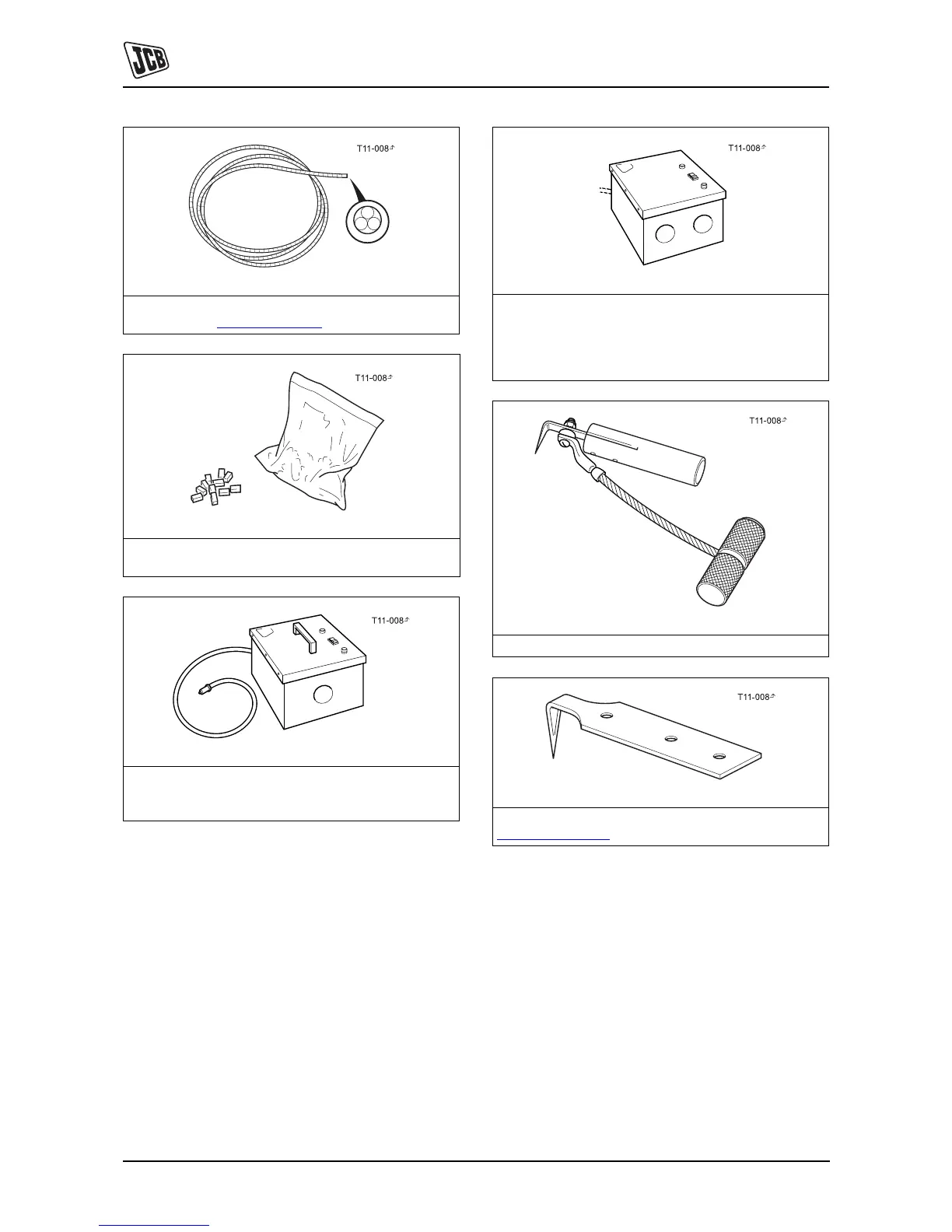

Fig 9. 892/00849 Braided Cutting Wire
Consumable heavy duty cut-out wire used with the glass
extraction tool. K
Fig 6. ( T 1-19). Approx 25 m length.
Fig 10. 926/15500 Rubber Spacer Blocks
Used to provide the correct set clearance between glass
edge and cab frame. Unit quantity = 500 off.
Fig 11. 992/12300 Mobile Oven 12V
1 cartridge capacity. Required to pre-heat adhesive prior
to use. It is fitted with a male plug (703/23201) which fits
into a female socket (715/04300).
Fig 12. 992/12400 Static Oven 240V
Required to pre-heat adhesive prior to use. No plug
supplied.
Note: 110V models available upon request - contact JCB
Technical Service.
Fig 13. 992/12800 Cut-Out Knife
Used to remove broken glass.
Fig 14. 992/12801 'L' Blades
25 mm (1 in.) cut. Replacement blades for cut-out knife.
K
Fig 13. ( T 1-20). Unit quantity = 5 off.
