Section 1 - General Information
Service Tools
Tool Detail Reference
1-19 1-19
9803/9360-3

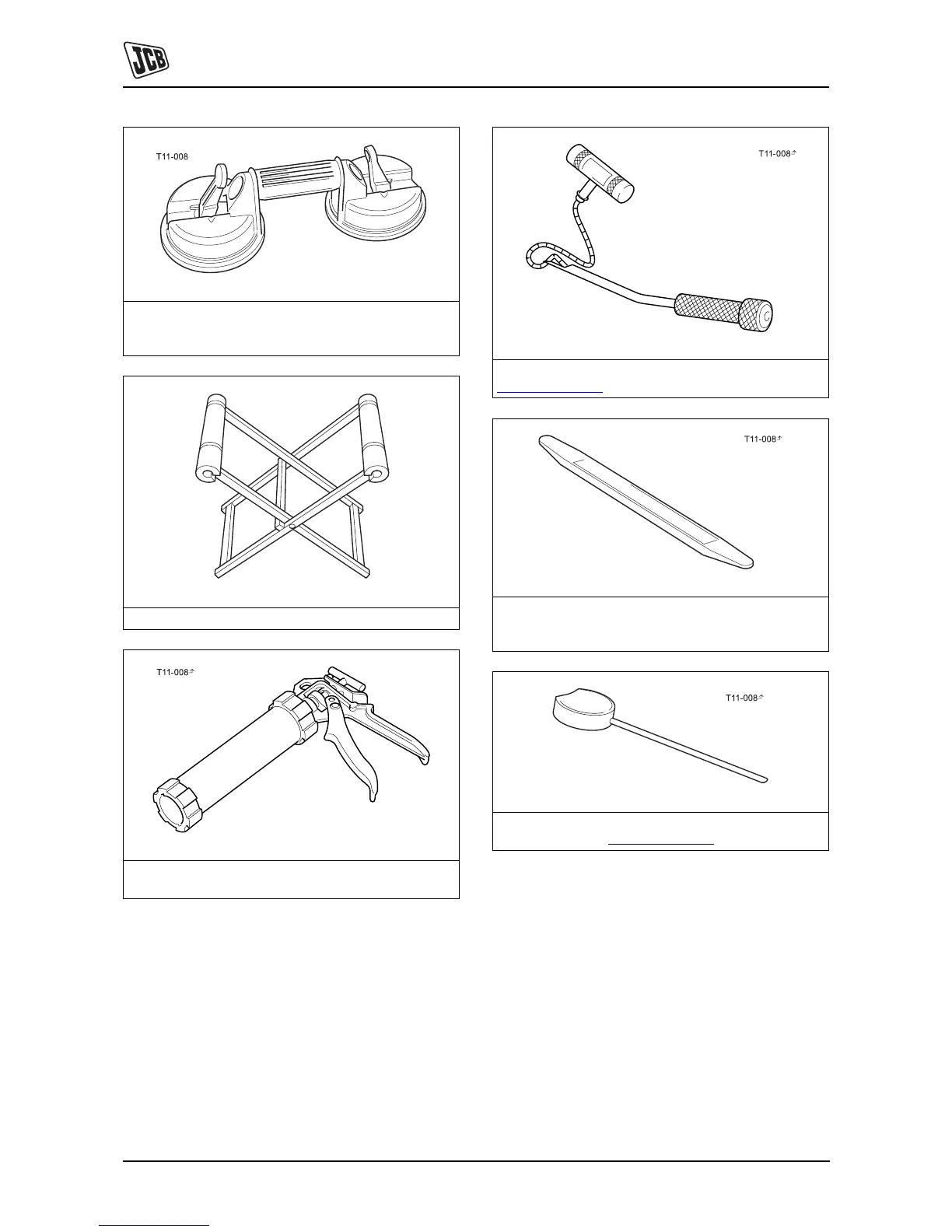

Fig 3. 892/00842 Glass Lifter
Minimum 2 off - Essential for glass installation, 2 required
to handle large panes of glass. Ensure suction cups are
protected from damage during storage.
Fig 4. 892/00843 Folding Stand
Essential for preparing new glass prior to installation.
Fig 5. 892/00845 Cartridge Gun
Hand operated. Essential for the application of sealants,
polyurethane materials etc.
Fig 6. 892/00846 Glass Extractor (Handles)
Used with braided cutting wire to cut out broken glass.
K
Fig 9. ( T 1-20).
Fig 7. 892/00847 Nylon Spatula
General tool used for smoothing sealants - also used to
re-install glass in rubber glazing because metal tools will
chip the glass edge.
Fig 8. 892/00848 Wire Starter
Used to access braided cutting wire through original
polyurethane seal. K
Fig 9. ( T 1-20).
