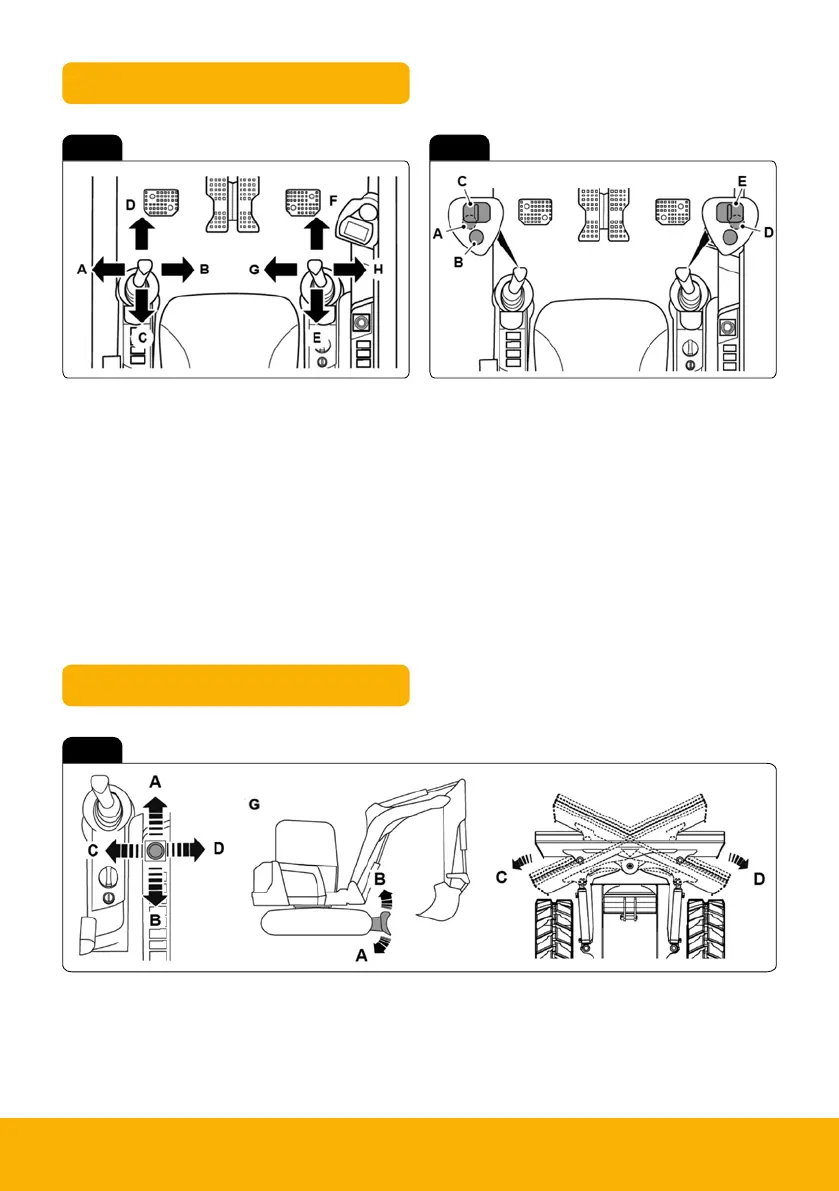

65R-1, 67C-1, 85Z-1, 86C-1, 90Z-1, 100C-1 11
Joysticks
Fig 10 Fig 11
Joystick Controls
A Slew left
B Slew right
C Raise boom
D Lower boom
E Dipper in
F Dipper out
G Crowd bucket
H Dump bucket
Auxiliary Controls
A Tilt/grab changeover for tilt-rotator
B Aux activation button
C Thumb wheel control – Aux 2 (Low flow)
D Continuous flow button – Hammer circuit
E Thumb wheel control – Aux 1 (High flow)
Note: A & D located underside of joystick
Dozer Lever
Fig 12
A Lower the dozer
B Raise the dozer
C Angle the dozer (left side in)
D Angle the dozer (right side in)
