jcb Access Series User Manual

ELECTRIC SCISSORS
21

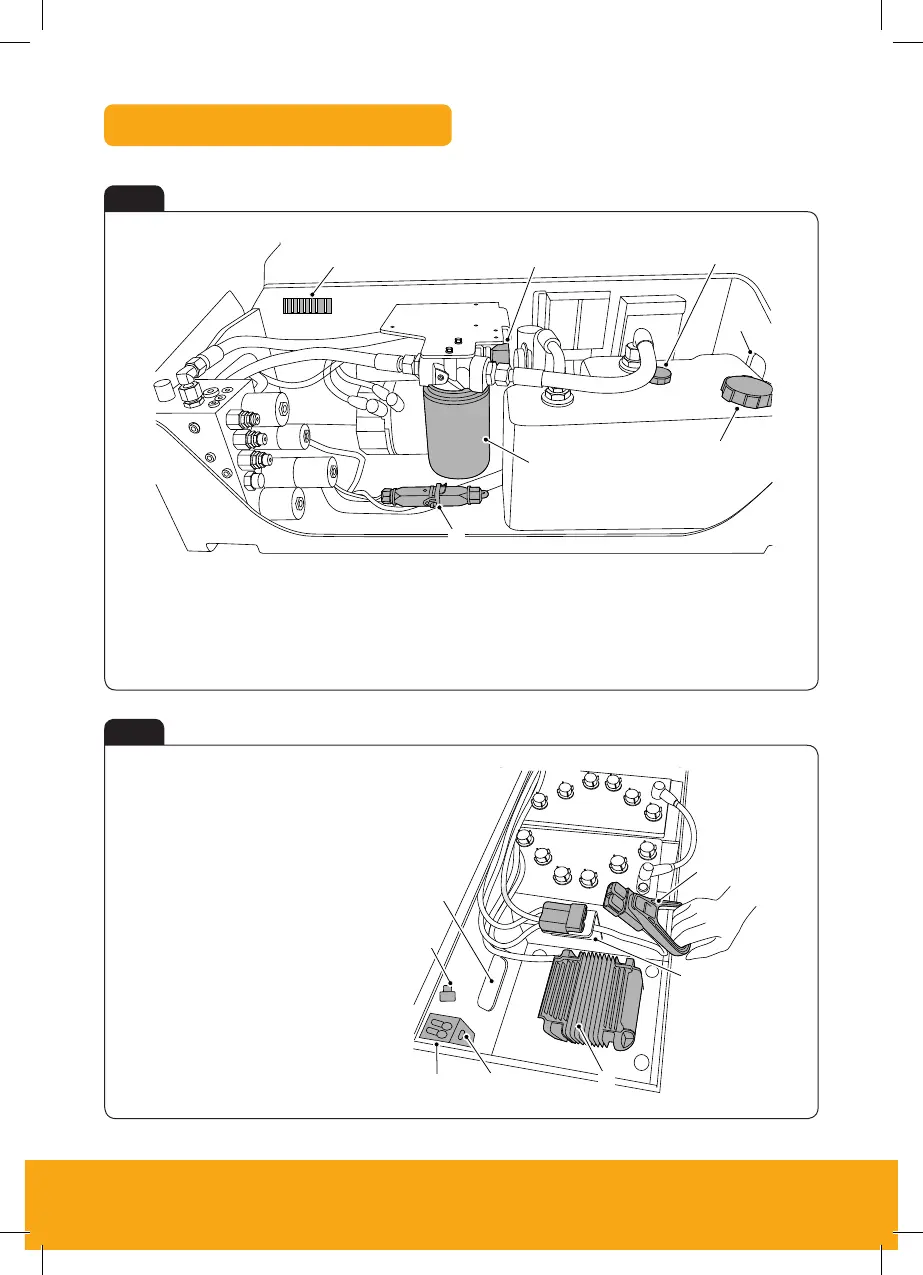

A Ignition Relay
B Hydraulic Level Viewing Window
C Hydraulic Oil Filter Cap
D Hydraulic Oil Filter
E Ground Control Connection
F Hydraulic Breather
G Secondary Fuses
Hydraulic Tray
Maintenance
Service Points
61 9831/3200-3 61
Service Points
General
Hydraulic Compartment
Figure 35.
B
A
E
D
C
F
G
A Main control relay B Hydraulic oil level indicator sight hole
C Hydraulic oil filler cap D Hydraulic oil filter
E Platform control connection F Hydraulic breather
G Secondary fuses
Fig 11
Fig 12
A Battery Isolator
B Primary Fuse (275A)
C Battery Charger
D Primary Fuse (20A)
E DC Contactor Resistor
F Charger Viewing Window
G DC Contactor
Maintenance
Service Points
62 9831/3200-3 62
Battery Compartment
Figure 36. Lead Acid Battery
B
C
A
E
G
D
F
A Battery isolator B Primary fuses (275A rating)
C Battery Charger D Primary fuse (20A rating)
E DC contactor resistor F Battery charger status sight hole
G DC contactor
Figure 37. Lithium Iron Phosphate Battery
E
GD
F
A
B
C
A Battery isolator B Primary fuses (275A rating)
C Battery Charger D Primary fuse (20A rating)
E DC contactor resistor F Battery charger status sight hole
G DC contactor
Battery Tray
Service Points
