Operation
Moving a Disabled Machine
57 9831/7750-1 57

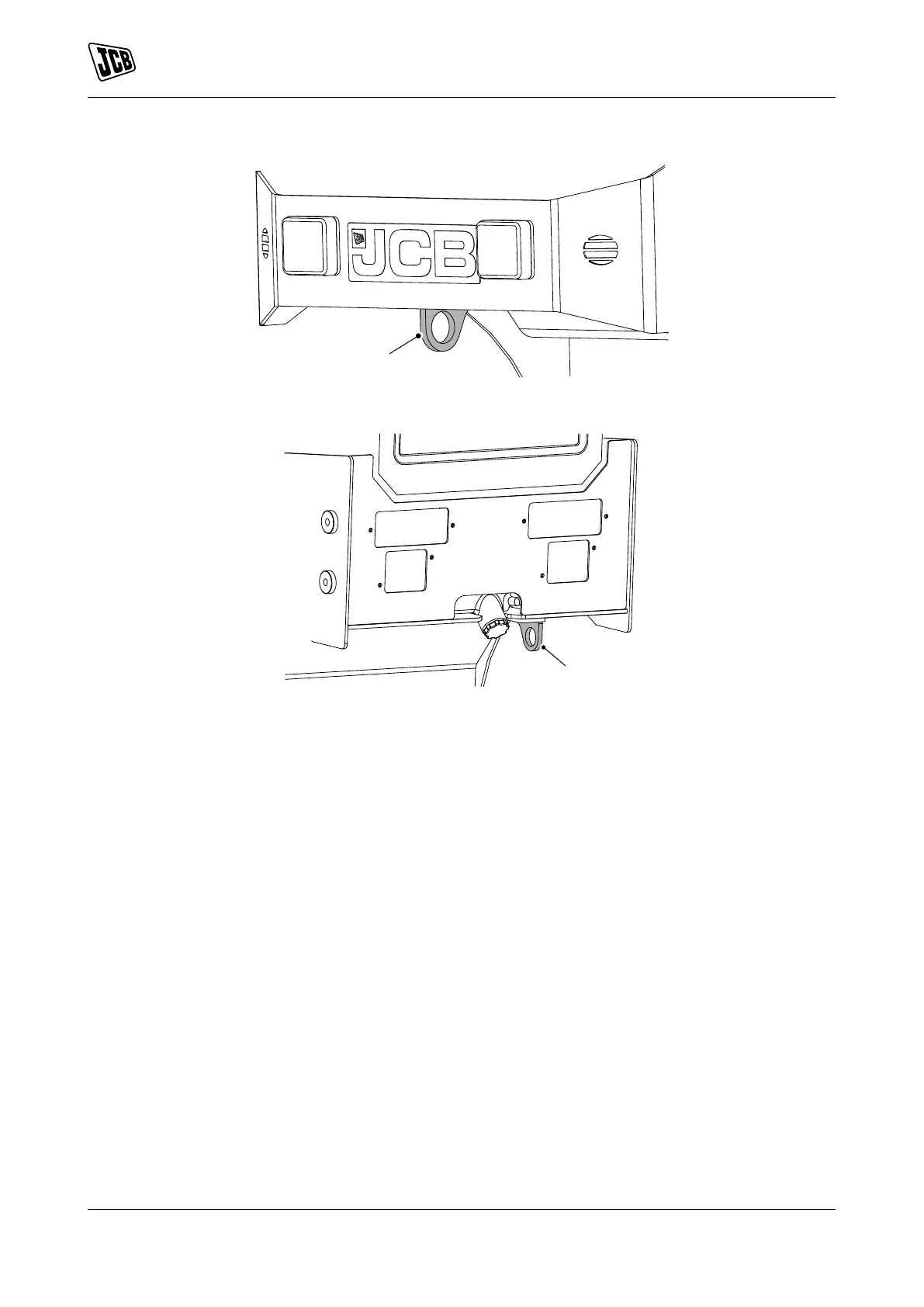

Figure 31.
A Front tow eye
Figure 32.
B Rear tow eye
WARNING! Always make sure the articulation lock has been removed before attempting to drive the
machine. The machine cannot be steered with the articulation lock installed.
3. Make sure that the articulation lock is in the drive position.
Refer to: Articulation Lock (Page 42).
Manual Mechanical Brake Deactivation
Machine installed with MSE02 Drive Motors- CT260
The maximum permissible towing force is 41 kN.
1. Remove and dispose the rubber plugs from the brake protector.
2. Tighten to the bottom of the threading without blocking the screw fitted with a nut and washer in the piston.
