Operation
Moving a Disabled Machine
59 9831/7750-1 59
Machine installed with MK04 Drive Motors- CT160
The maximum permissible towing force is 28 kN.

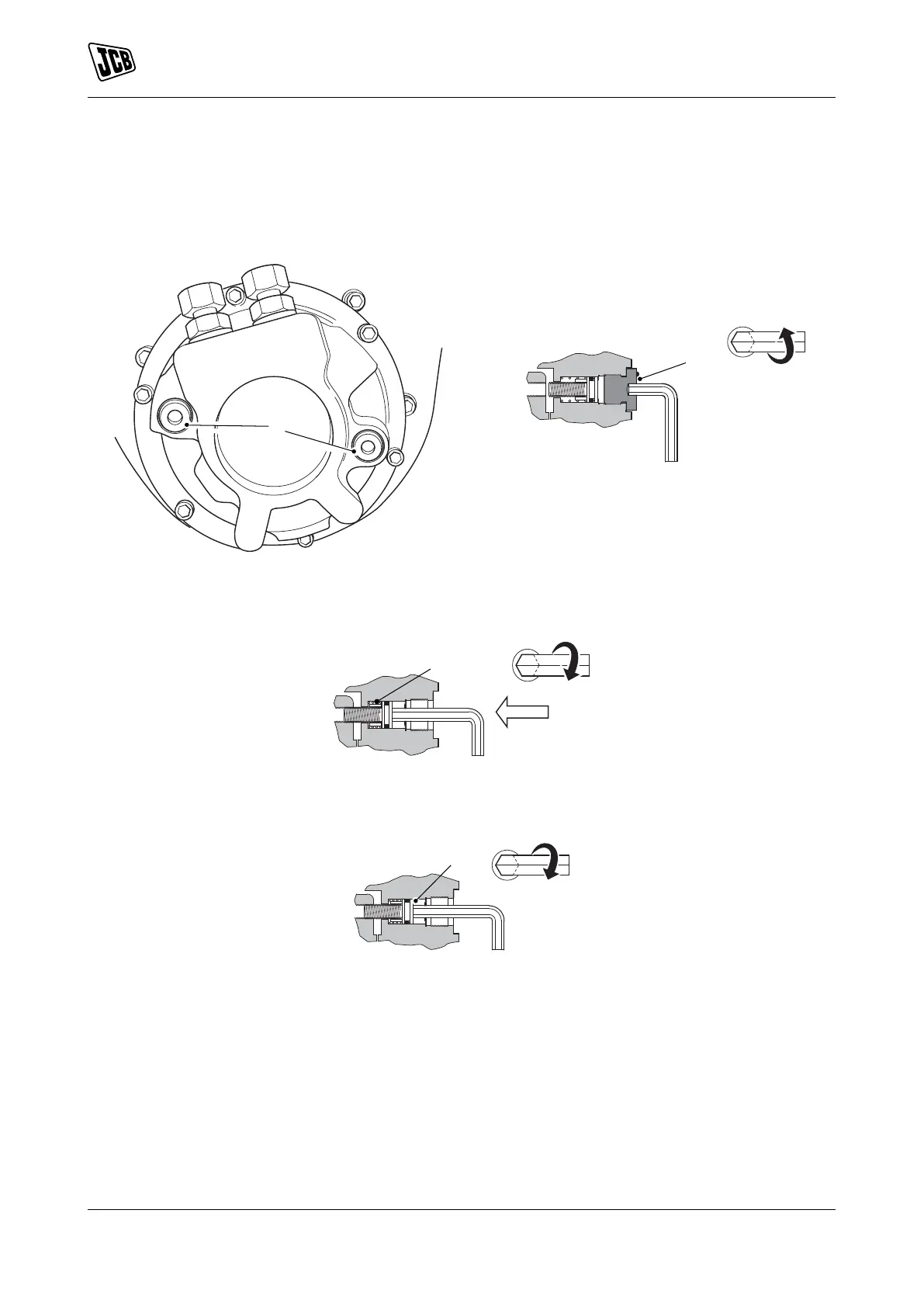

1. Remove the mechanical stopper.
Figure 36.
A Mechanical stopper
2. Press the screw spring to engage the park brake piston internal thread.
Figure 37.
B Spring
3. Tighten the screw until the motor shaft turns freely.
Figure 38.
C Screw
4. Tow the machine to a safe position.
5. Loosen the screw and install the mechanical stopper.
