Service Tools (continued)
SECTION E - HYDRAULICS
Slew Motor Unit - JS160

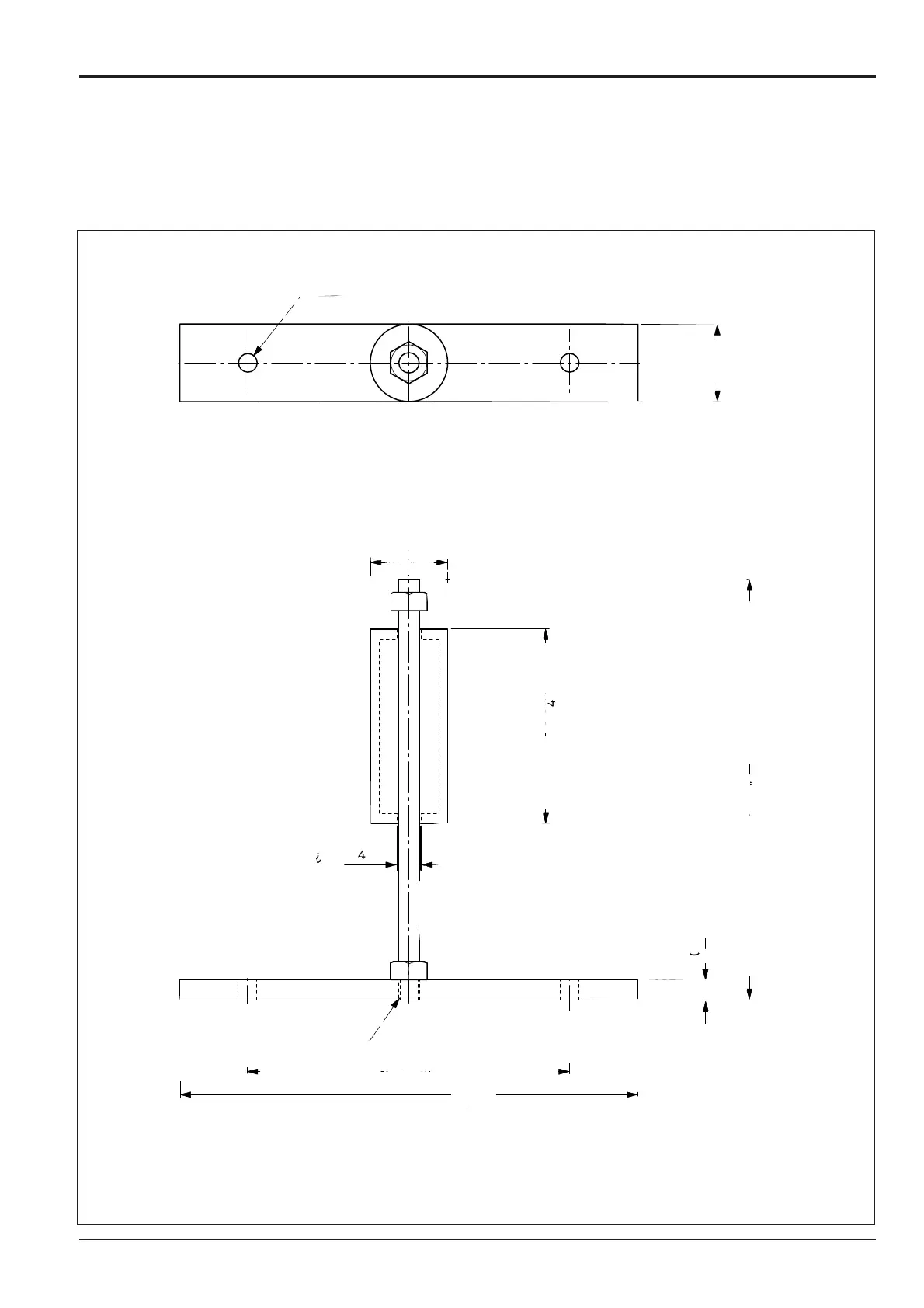

Puller for Brake Piston
Stud is threaded M10 on both ends for 20 mm (0.8 in) and fitted with two M10 nuts.
JS07100
40
(1.57")
40
(1.57")
2 x ¿9 (0.35")
100
(3.94")
200
(9.84")
10 (0.39")
180
(7.09")
240
(9.45")
M10
¿11 (0.43")
Inner diameter
250
