Slew Brake Valve
Technical Data (JS130)

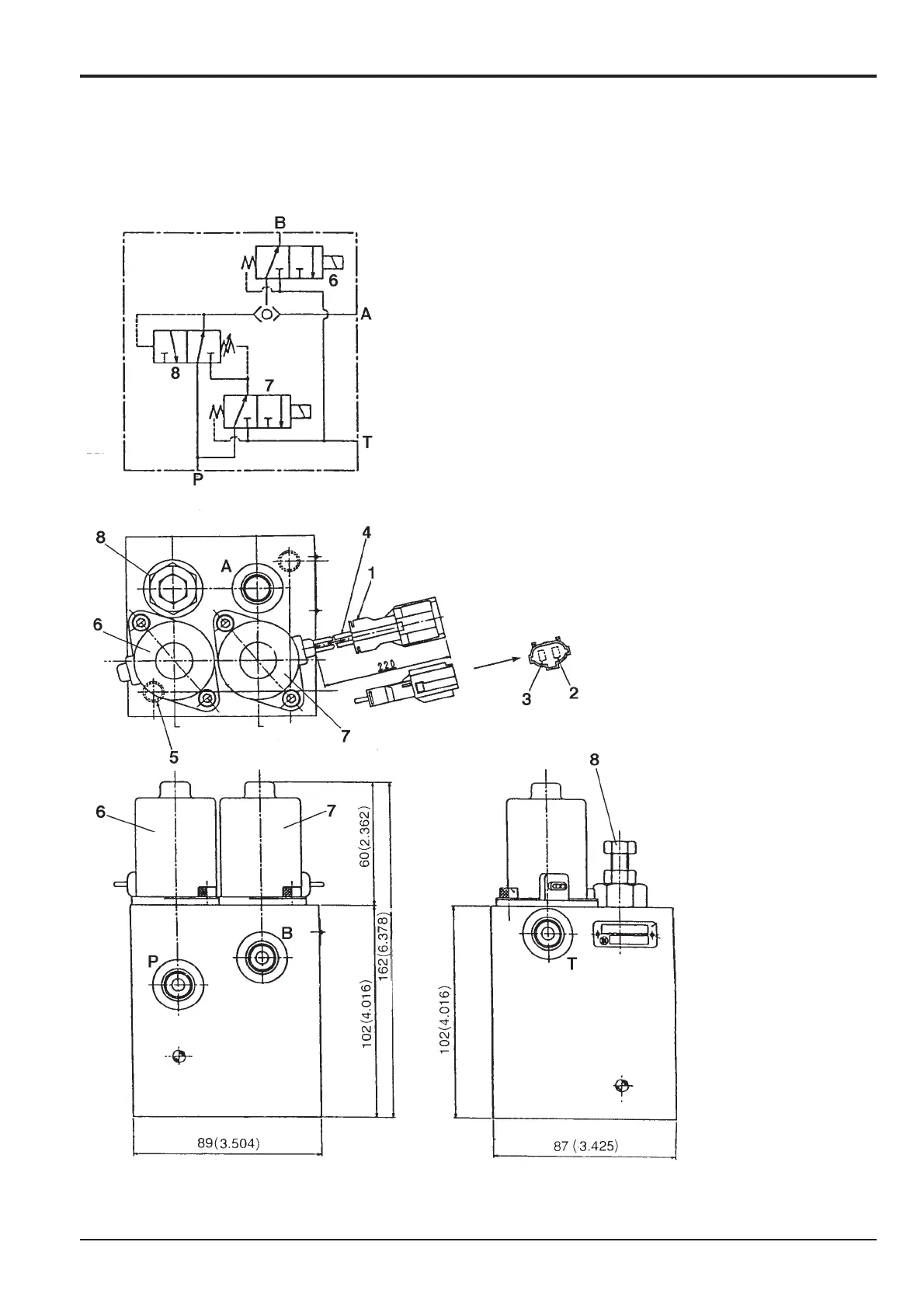

Key
6 Solenoid control valve (slew lock)
7 Solenoid control valve (slew brake)
8 Pressure reducing valve
Key
1 Waterproof, 2-pin electrical contact housing
2 Power source (pink)
3 Ground (grey)
4 Low voltage cable 0.85 mm (.00132 in
2
)
5 Mounting holes, 2 - M10 x 1.5, 15 (0.591 in) deep
6 Solenoid control valve slew lock
7 Solenoid control valve slew brake
8 Pressure reducing valve
