jcb JS160 - Spool Location

32 - 1
Section E Hydraulics
9803/6410
Section E
32 - 1
Issue 1
Control Valve
Key
TL = Left hand track motor
TR = Right hand track motor
AM = Dipper ram
OPT = Auxiliary supply to attachment (if fitted)
SW = Slew motor supply
BKT = Bucket ram
BM = Boom rams

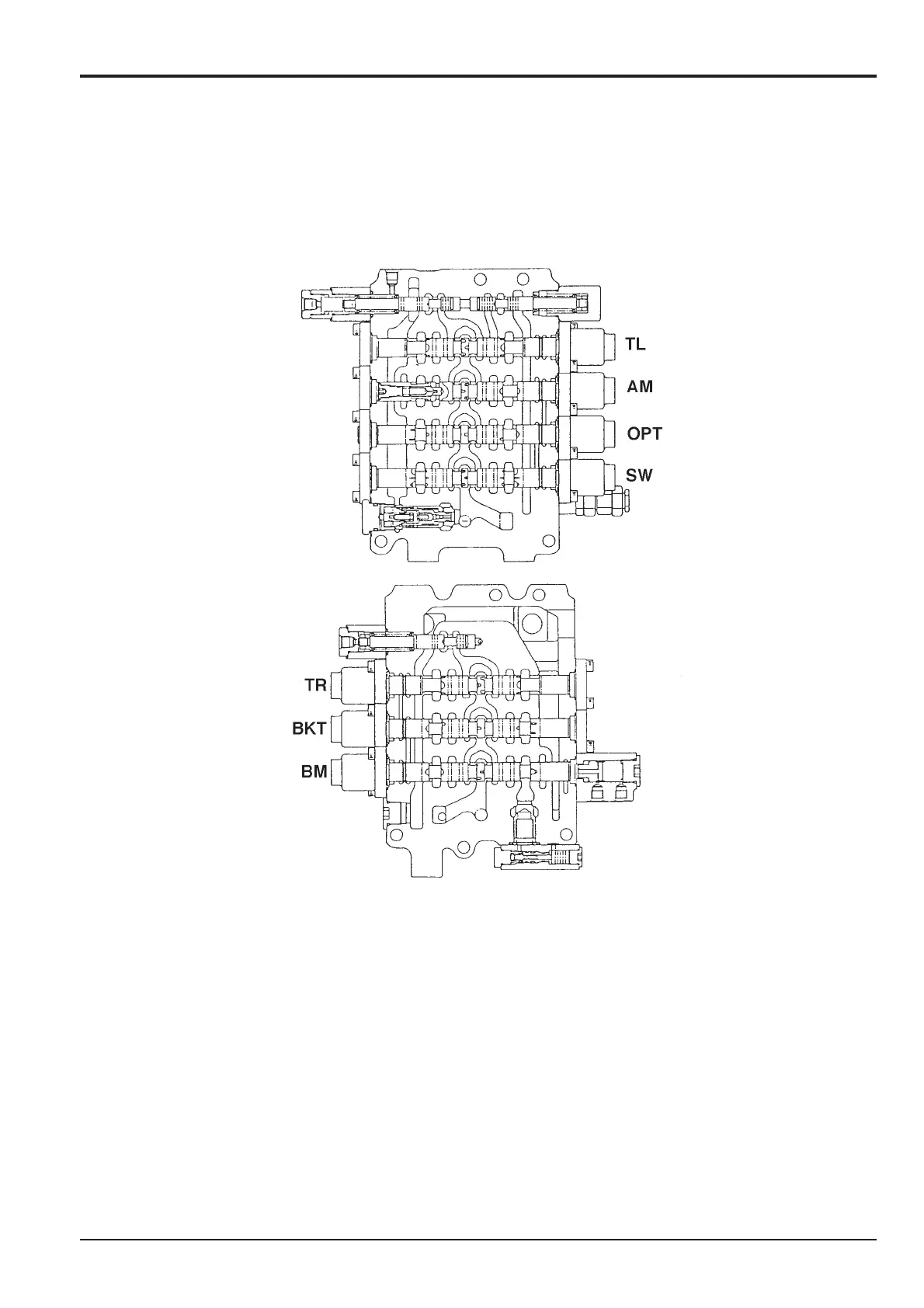

JS01950
Spool Location
