14 - 7
Section E Hydraulics
9803/6410
Section E
14 - 7
Issue 1
Hydraulic Pump/Regulator

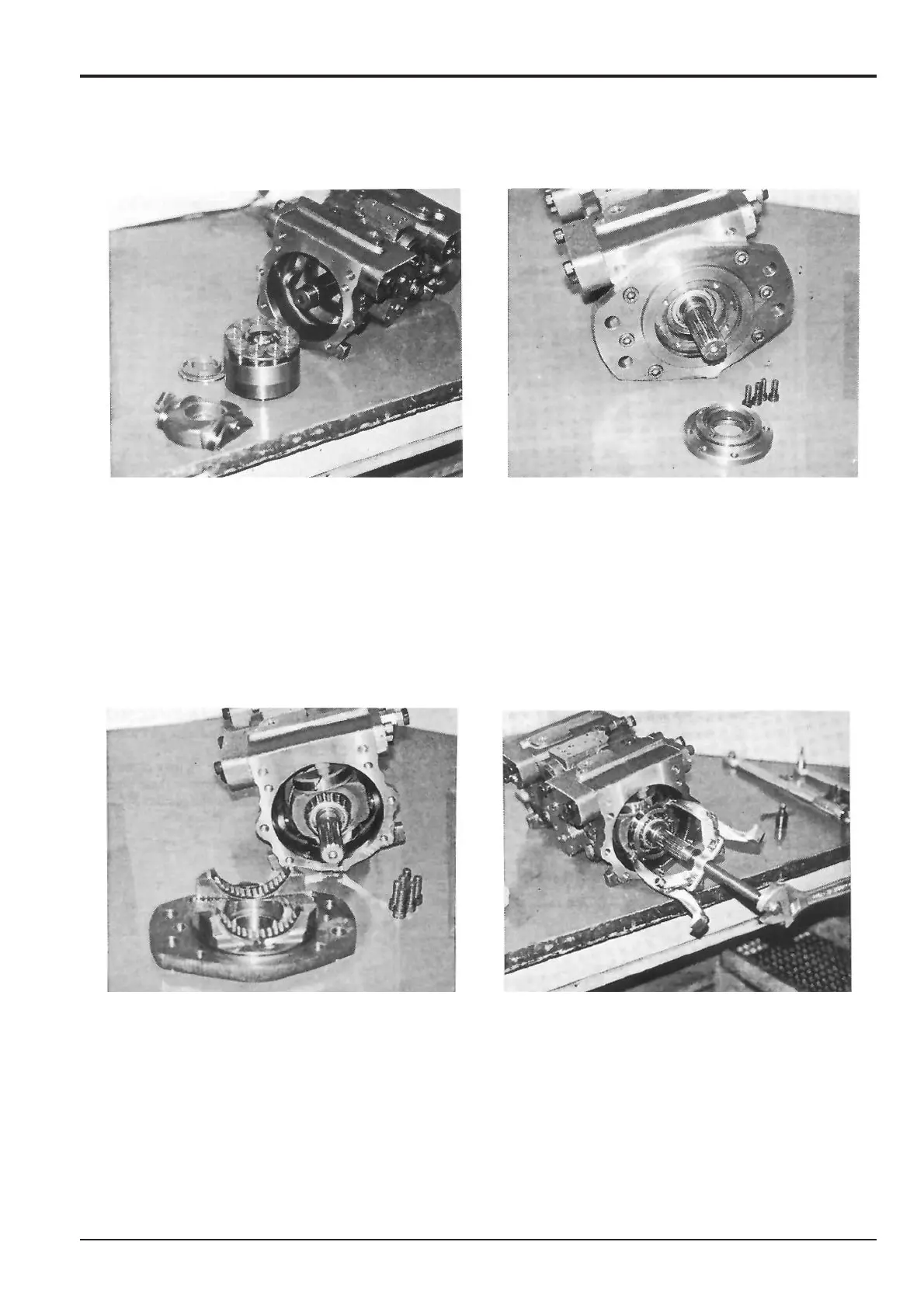

7 Remove rear swash plate 8 and the assembly
comprising cylinder block 4, piston assembly 6, retainer
plate 11, retainer holder 12, spring 19, spring seat 20
and valve plate 10.
8 Unscrew the four socket head bolts 75 and take out oil
seal case 16.
Note: Take care not to damage the oil seal lip with the shaft
spline.
Dismantling (cont’d)
9 Unscrew the six socket head bolts 73 and remove
flange 2. Then remove the bearings 14 from the swash
plate.
Note: It may be necessary to lightly tap the flange with a
plastic hammer to assist removal.
10 Remove bearing 13 on the front side, using the bearing
removal tool and the front shaft protection tool (see
Service Tools, Section 1).
To Next Page
