14 - 9
Section E Hydraulics
9803/6410
Section E
14 - 9
Issue 1
Hydraulic Pump/Regulator

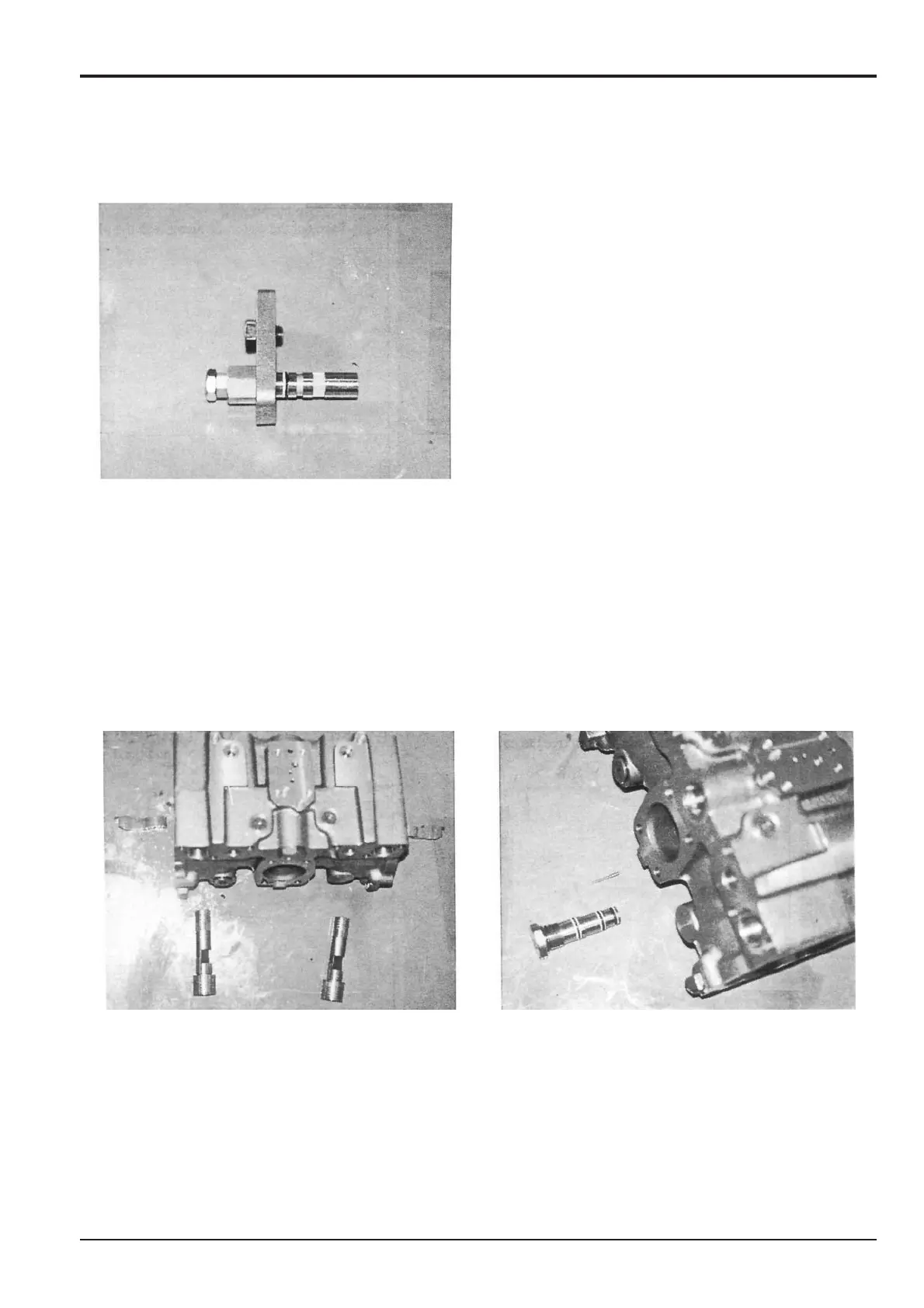

15 Unscrew the three socket head bolts 73 on the rear
side and remove cover ‘R’ 30.
16 Unscrew the three socket head bolts 72 on the front
side and remove cover ‘LF’ 52.
Remove sleeve 37 and spool 40 assembly.
Note: Take care not to mix these parts with those removed
at step 12.
Dismantling (cont’d)
17 Remove the stoppers 24 and 25 on the rear side using
an M6 bolt screwed into the threaded hole in the end of
each one.
Take out regulator piston 23 and bridging piece 29.
Repeat for front side, removing stoppers 24 and 25,
regulator piston 23 and bridging piece 29.
Note: Take care not to mix rear and front side components.
18 Remove plug 31 complete with piston 32.
To Next Page
