18 - 17
Regulator (cont’d)
Dismantling and Assembly (cont’d)
Dismantling (cont’d)

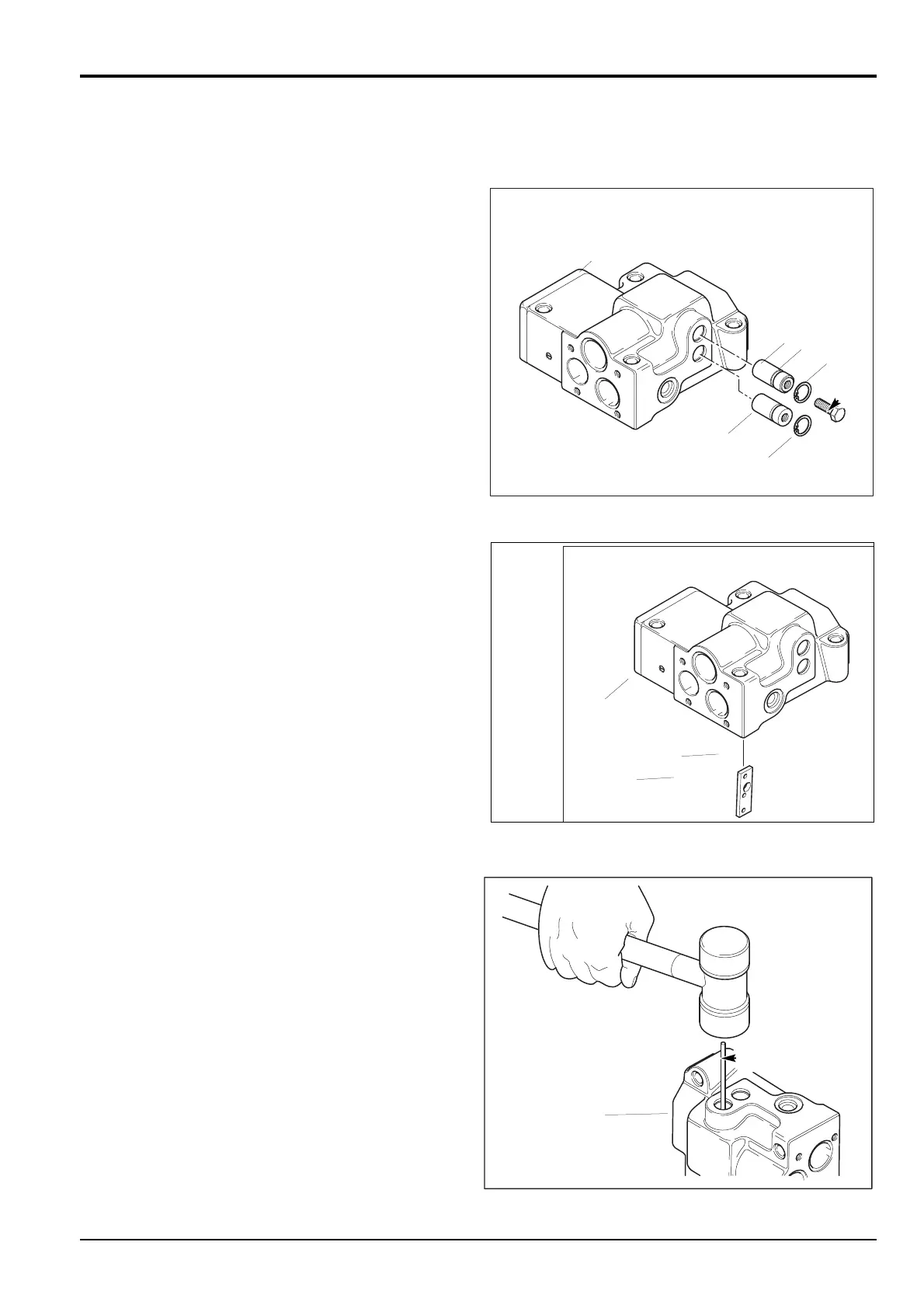

6 Remove snap ring 28 and take out fulcrum plug 29,
complete with pin 33. Remove snap ring 30 and take out
adjusting plug 31.
Note 2: Use an M6 screw Y attached to the ends of fulcrum
plug 29 and adjusting plug 31 to facilitate their easy removal.
7 Remove lever 32 leaving pin 33A in position on the lever.
8 Knock out pin 34 (4 mm dia.) using a suitable metal rod
X and a plastic hammer.
Section E Hydraulics
9803/6410
Section E
18 - 17
Issue 1
Hydraulic Pump/Regulator JS130, JS160
