46 - 1
Dismantling and Assembly
Notes:
1 All parts are precision made and require the utmost
care when being handled.
2 During dismantling do not use excessive force to
separate components. This could cause scratches or
burrs on bearing surfaces. Failure to observe this
instruction will cause oil leaks leading to poor
performance.
3 Label all parts during dismantling to ensure correct
assembly.
4 Storing the valve when dismantled could cause rusting
of parts. Ensure they are suitably protected by anti-rust
treatment.
5 During assembly ensure all parts are clean and free
from burrs and scratches. Remove minor damage by
lapping.
6 Renew all ‘O’-rings, seals and back-up rings.
7 During assembly apply hydraulic oil to ‘O’-rings and
seals.
8 Ensure all screws and bolts are tightened to the torque
settings given.
Section E Hydraulics
9803/6410
Section E
46 - 1
Issue 1
Remote Control Valve (Travel)

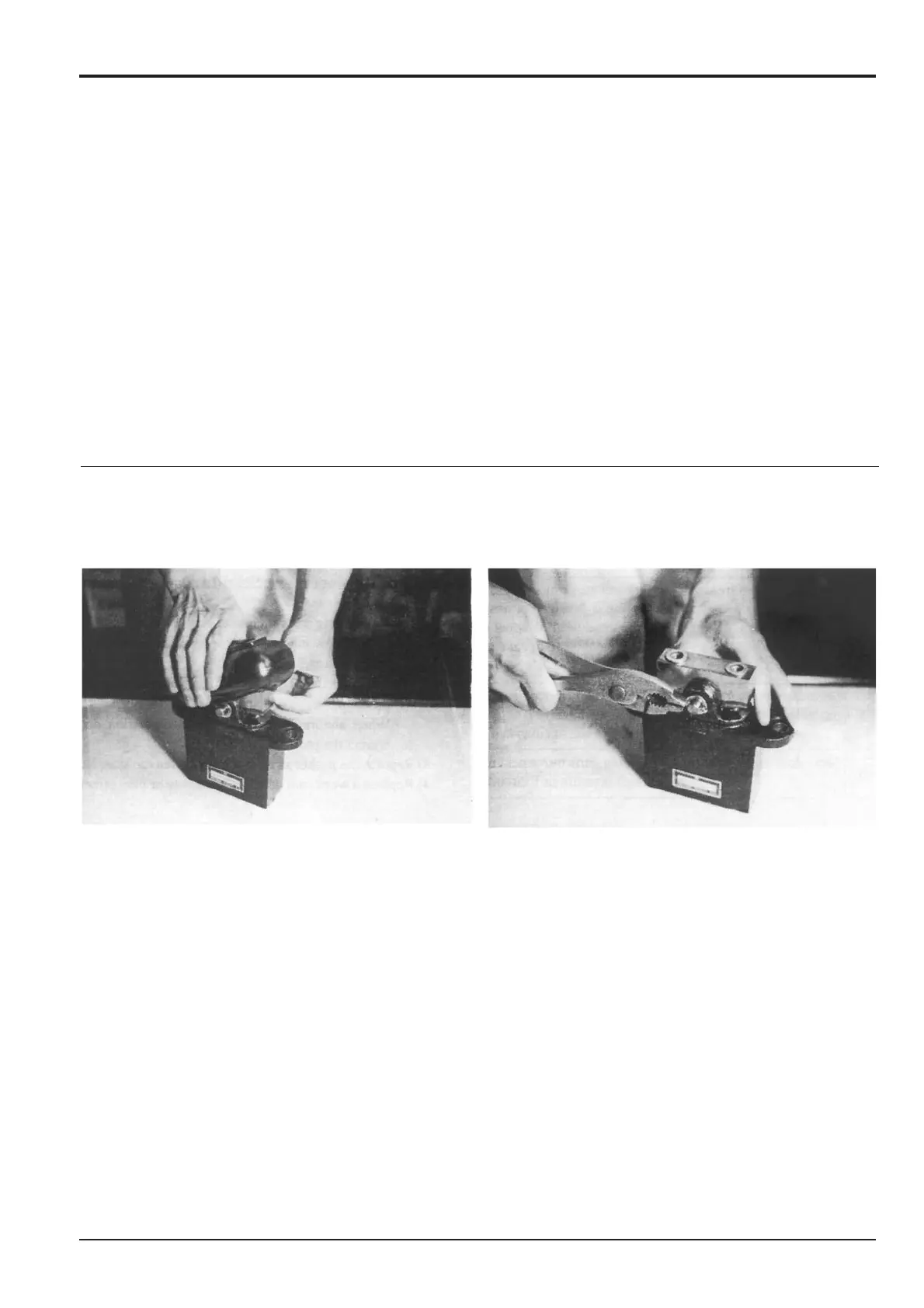

1 Remove boot 9 from body 3. 2 Remove split pin 23.
Note: Removal of one pin is sufficient.
Dismantling
To Next Page
