46 - 4
Section E Hydraulics
9803/6410
Section E
46 - 4
Issue 1

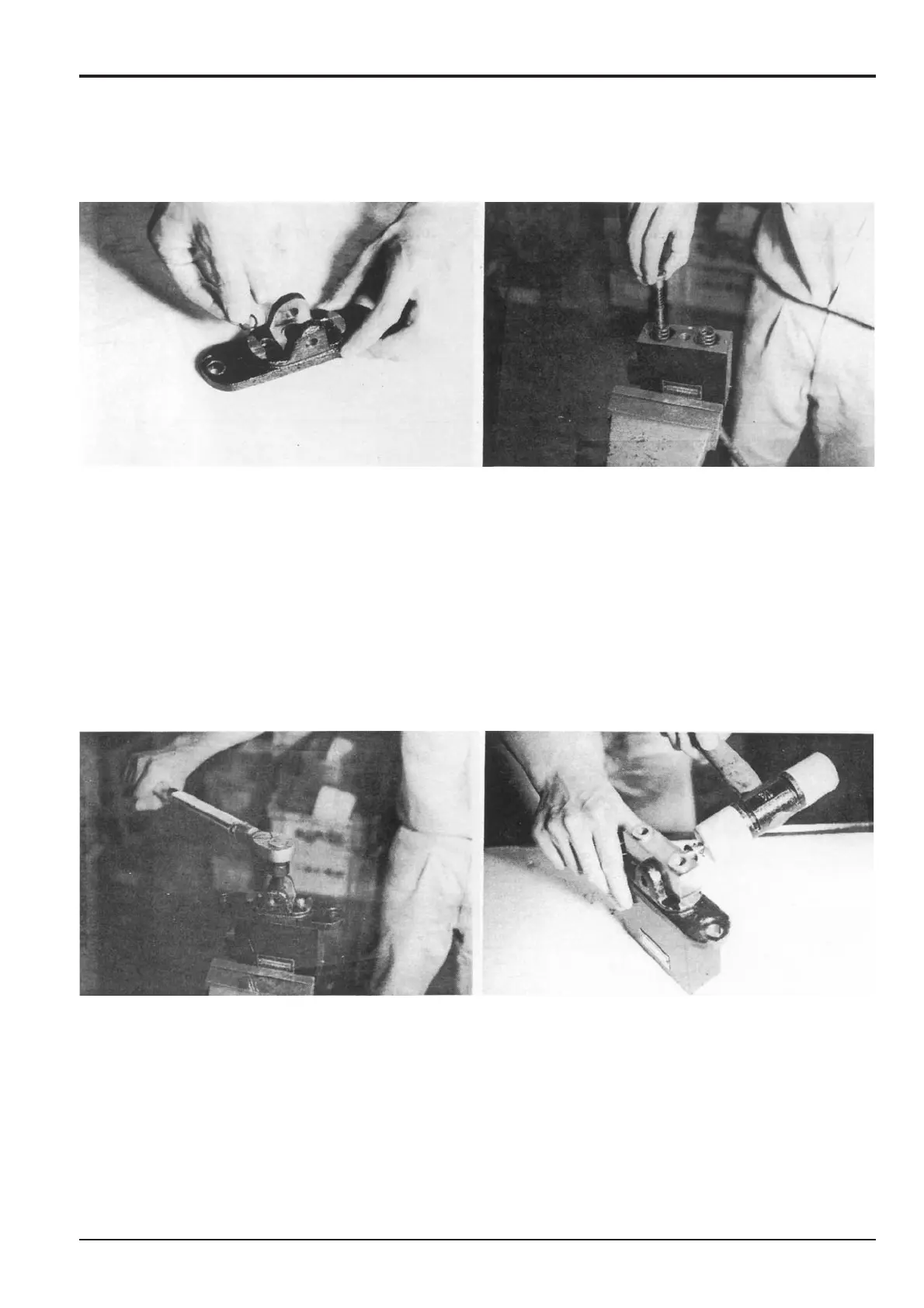

Remote Control Valve (Travel)
1 Install ‘O’-ring 25 and plunger assembly 28 into cover
6.
2 Note: If the spool assembly has been dismantled do
the following:
Using soft metal pads, clamp spool 4 into a vice.
Assemble washer 19, shim 15, spring 11 and sleeve 5.
Fit screw 18 and tighten to a torque of 2.98 Nm (2.2 lbf
ft). Insert spring 12 with the spool assembly into the
body 3. Ensure spools are in the correct locations.
Dismantling and Assembly (cont’d)
Assembly
3 Using soft metal pads, clamp valve body 3 into a vice.
Install ‘O’-ring 26 and spring pins 22 into valve body 3.
Locate cover 6 and tighten socket head screws to a
torque of 77.3 Nm (57 lbf ft).
4 Install cam 14 with pin 8.
To Next Page
