55 - 3
General Information (cont’d)
Section E Hydraulics
9803/6410
Section E
55 - 3
Issue 1

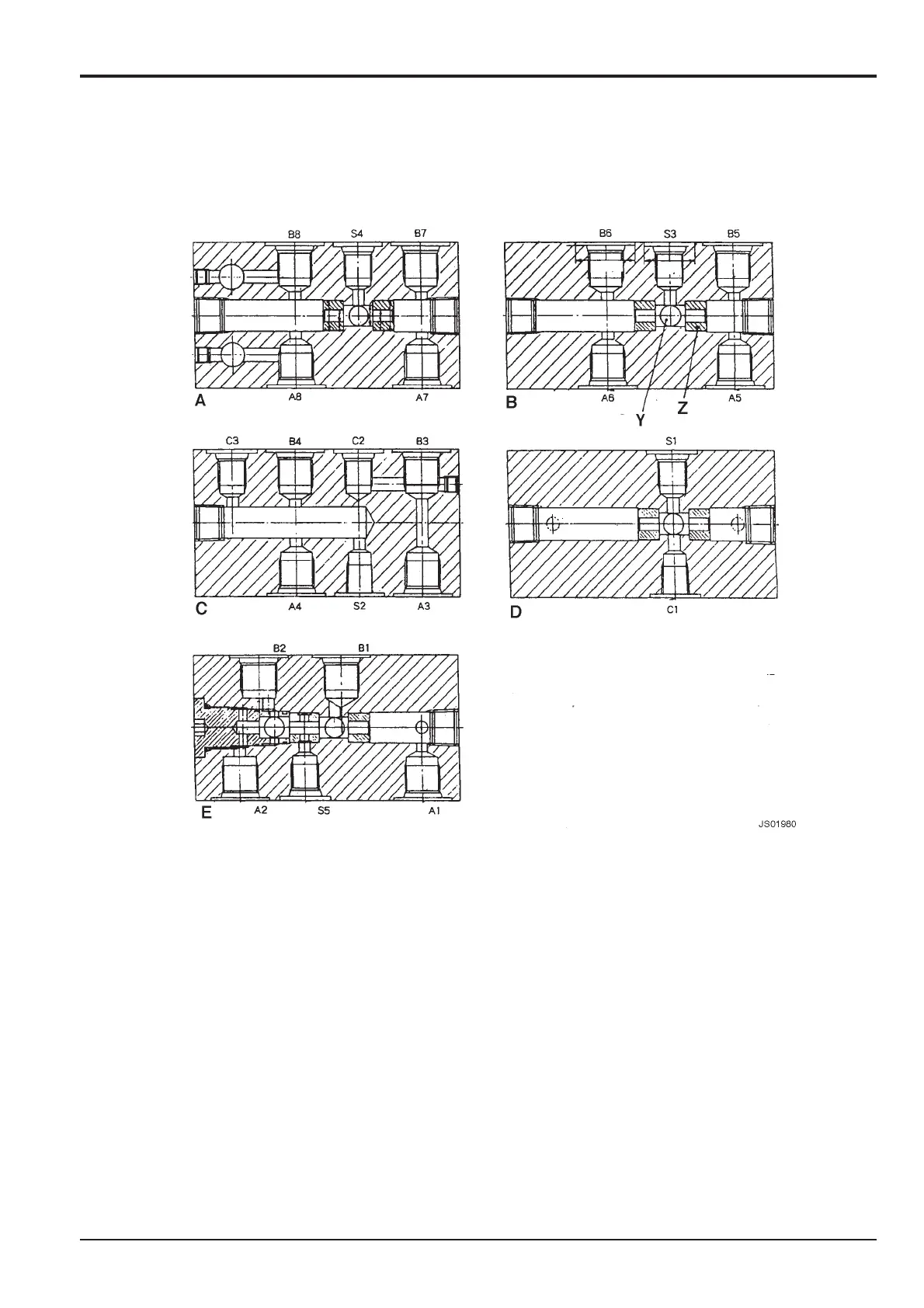

Shuttle Valve
Key
Y = Steel ball
Z = Valve seats
