Reconditioning (cont’d)
Bushing Removal (cont’d)
77 - 4
Section E Hydraulics
9803/6410
Section E
77 - 4
Issue 1
Hydraulic Rams

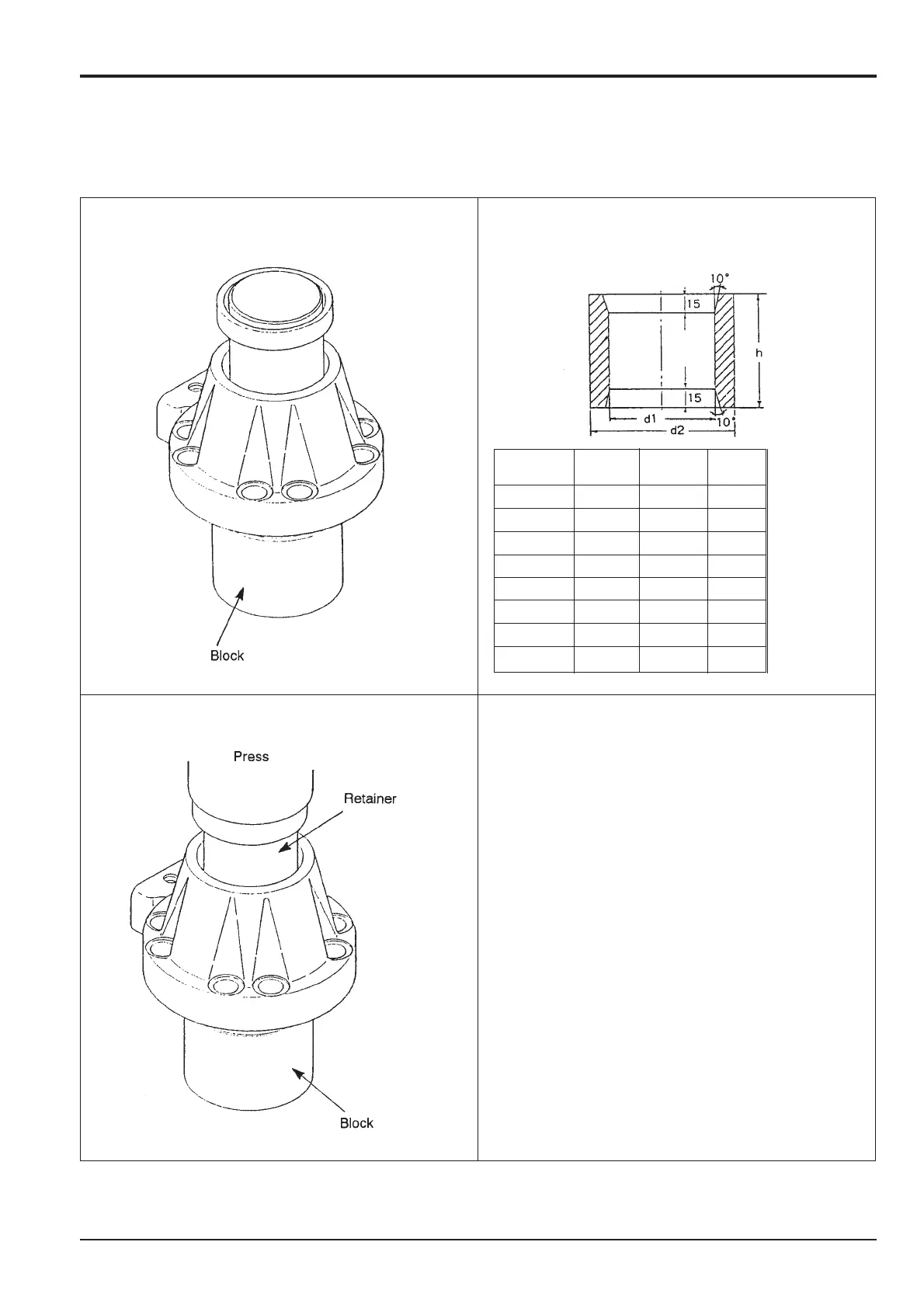

Choose a block suitable in shape and size from the table
below. Position the cylinder head centrally on the block
as shown.
1 Position the block and cylinder head assembly
underneath the press.
2 Gradually press the retainer upper surface until the
bushing falls out from the cylinder head.
Note: Normally it falls out with a load of less than 3
tonnes.
The press ram stroke varies with the cylinder head size
and is about 32~52 mm.
1 Use a retainer when pressing.
2 If the shaft centre of the block and cylinder head
assembly become misaligned, stop the press work
and realign before proceeding.
7 Block preparation
8 Removing bushing
Rod Dia. d1 d2 h
mm mm mm mm
75 82 110 80
80 87 112 80
85 92 124 80
90 97 130 80
95 102 136 80
100 107 140 80
105 112 146 80
110 117 150 80
JS02180
JS02190
