80 - 2
Section E
Hydraulics
9803/6410
Section E
80 - 2
Issue 1

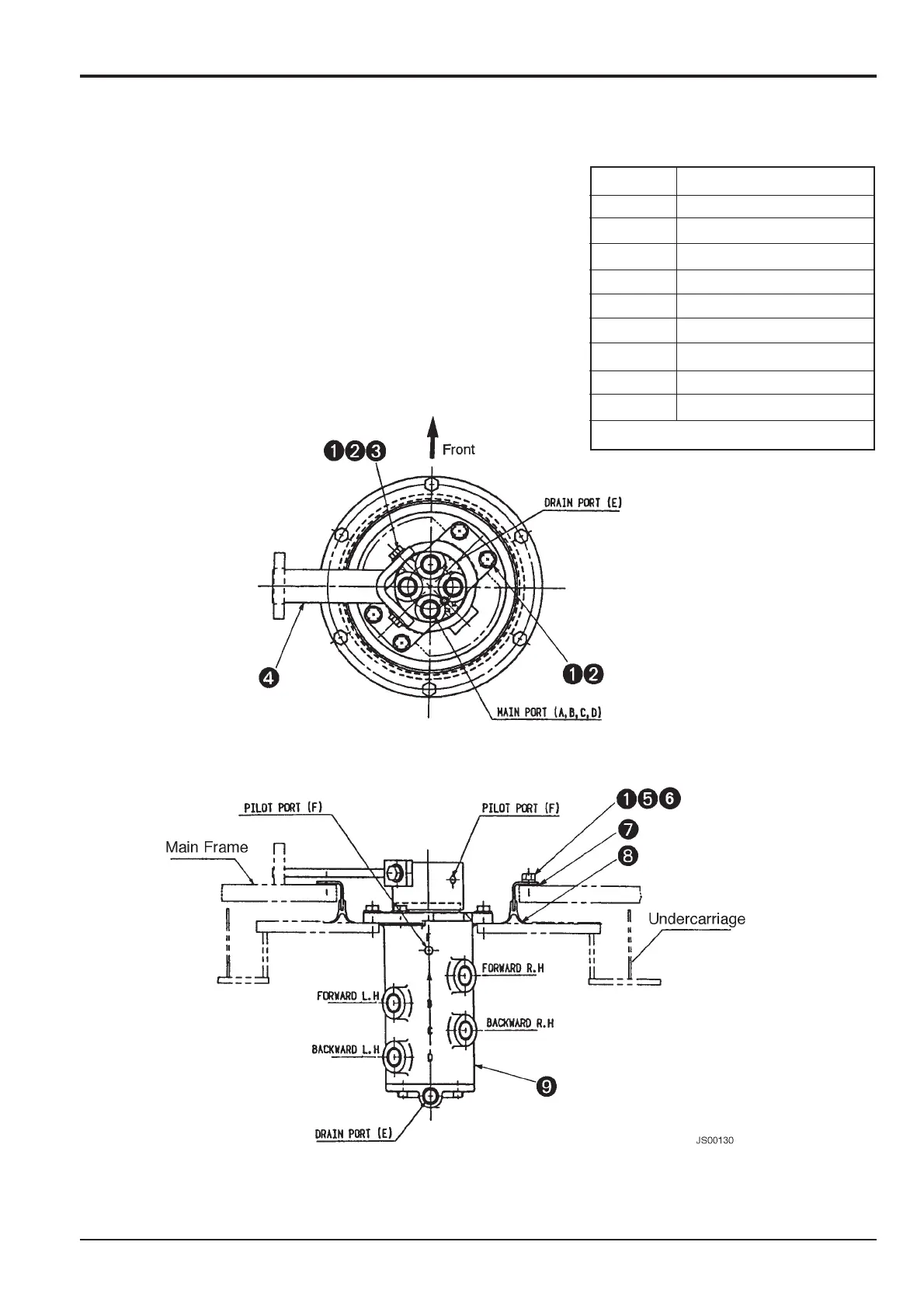

Rotary Coupling
T
echnical Data (cont’d)
Item
Part Name
1
High strength bolt
2
High strength washer
3
Loctite 262
4
Lock bar
5
Seal washer
6
Seal cap
7
Rubber packing
8
Seal ring
9
Rotary coupling
The unit weighs 35 kg.
397
399
