82 - 3
Dismantling

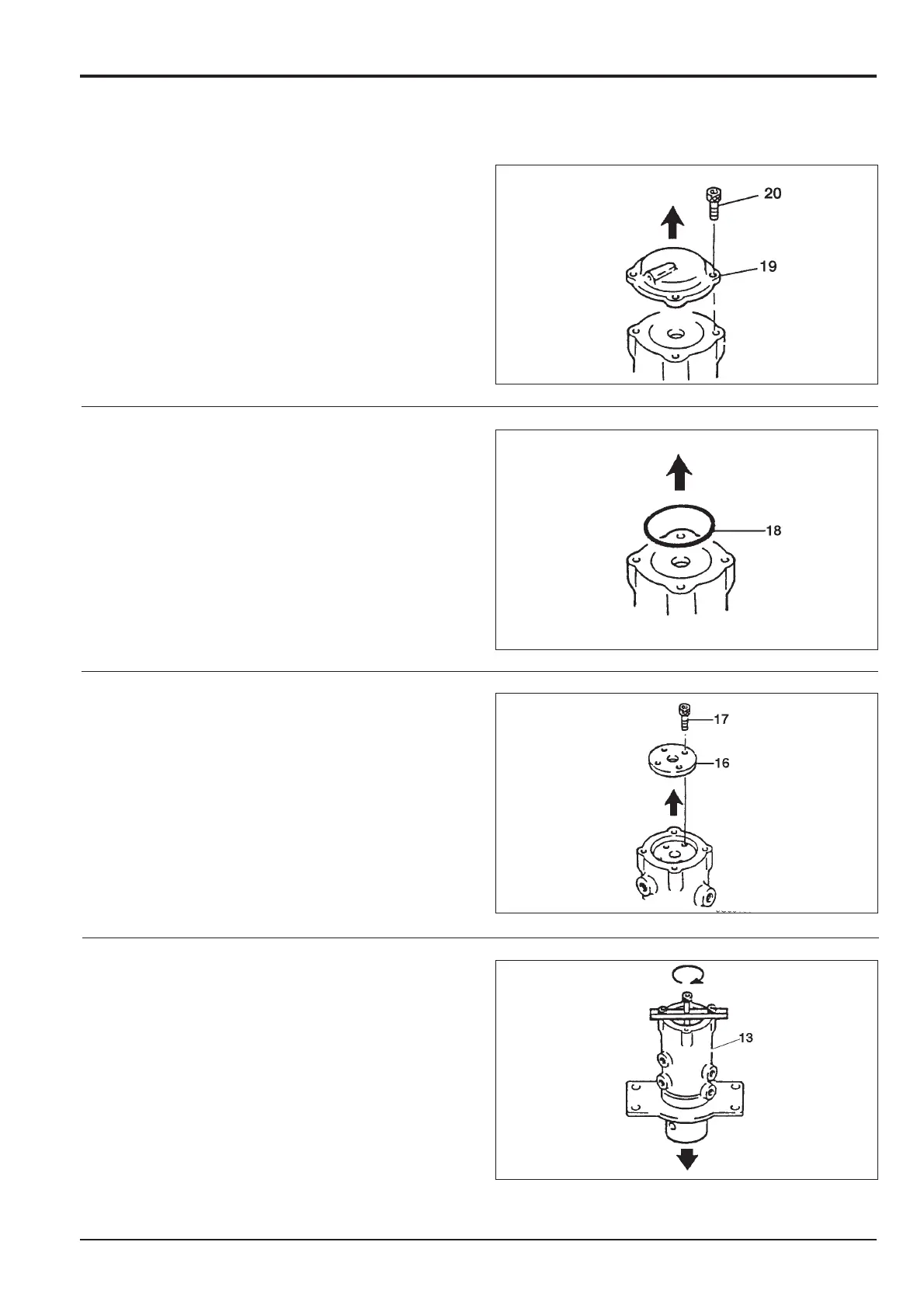

1 Remove screws 20 and cover 19.
2 Remove and discard 'O'-ring 18.
3 Remove screws 17 and thrust plate 16.
4 Using a jig (see Special Tools, Section 1), push off axle
11 from the rotor 13.
(Do not hit with a hammer.)
Section E Hydraulics
9803/6410
Section E
82 - 3
Issue 1
Rotary Coupling
JS00140
JS00150
JS00170
JS00160
