83 - 2
Section E Hydraulics
9803/6410
Section E
83 - 2
Issue 2*
Slew Motor
JS00970
Note: Item numbers are referred to on the following pages.

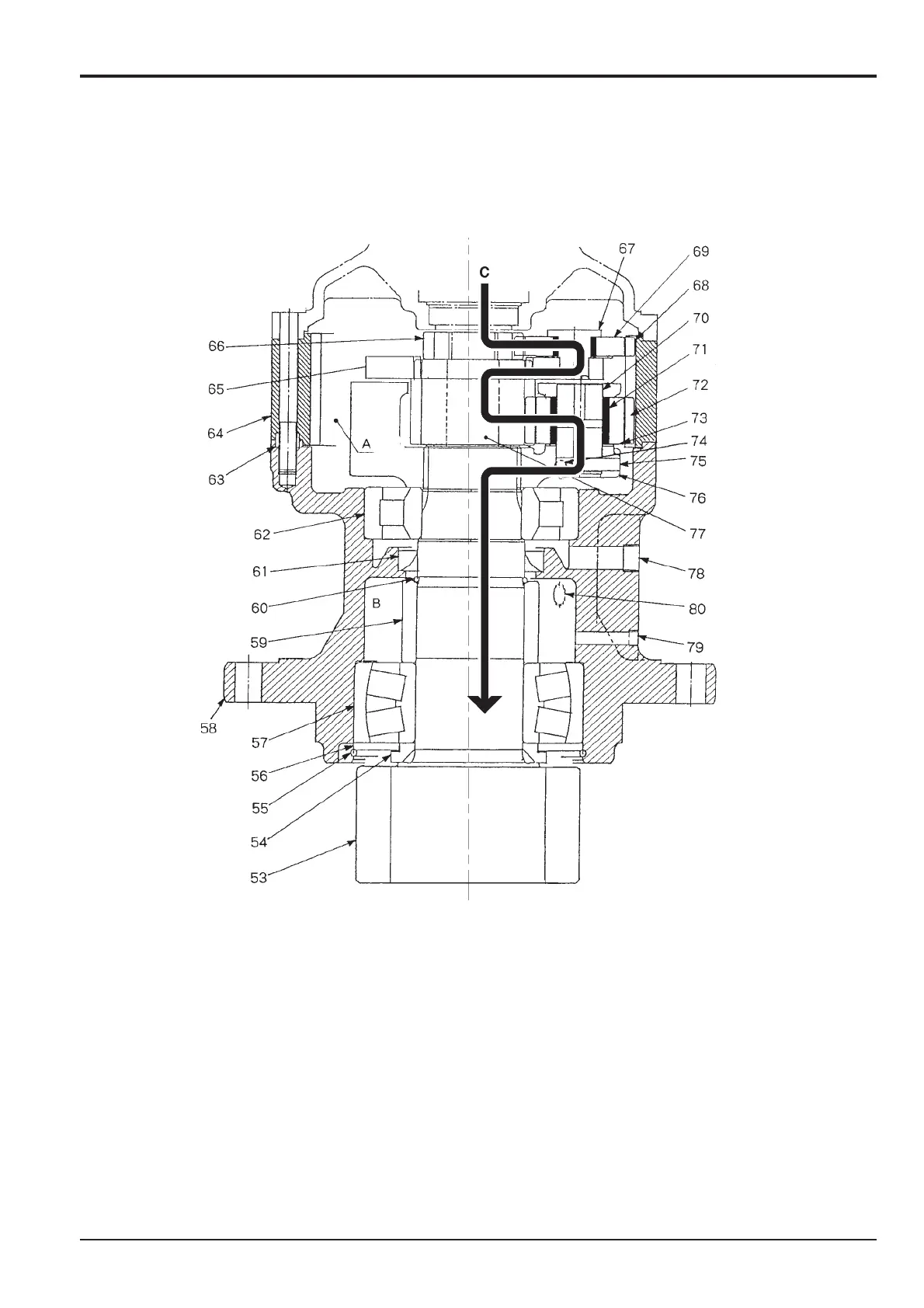

Reduction Gear Components
Key
A A chamber
B B chamber
C Torque path
