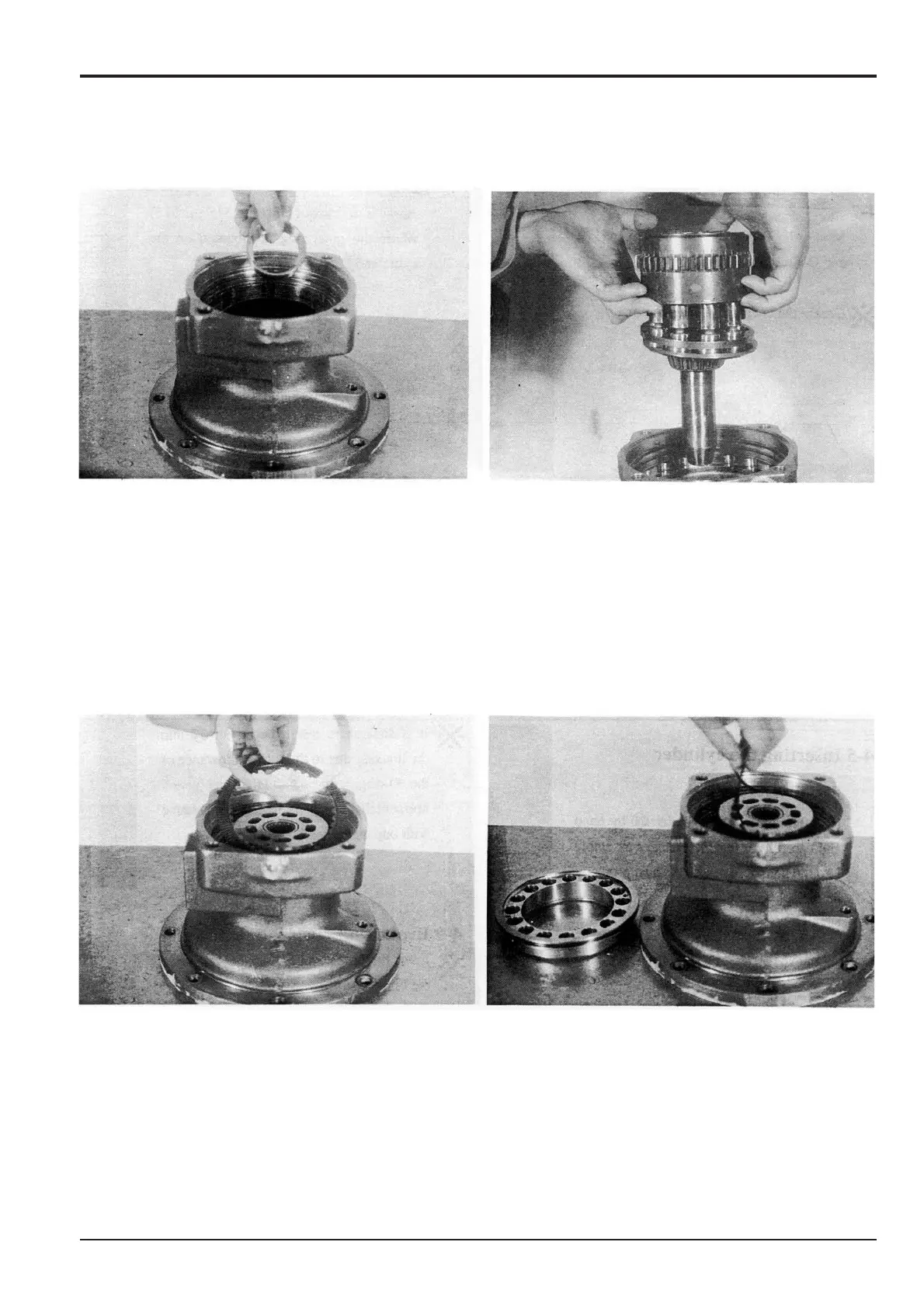

10 Mount the outer ring of the taper roller bearing into
housing 25.
11 Hold the end of cylinder 24 by hand and carefully insert
the cylinder assembly into housing 25. Use the seal
protector on the splines.
Note: The splines of the cylinder assembly protrude beyond
the housing, so use a guide of 30-50 mm (1.2-1.9 in) on the
lower part of the housing. Verify that spring 5 is inserted
correctly into the back face of retainer plate 7.
Section E Hydraulics
9803/6410
Section E
92 - 10
Issue 1
Slew Motor
Motor Assembly/Cylinder Assembly
Assembly (cont’d)
12 Mount friction plate 9 and mating plate 10.
Note: Apply hydraulic oil to both faces before mounting the
plates.
13 Mount 'O'-ring 11 in housing 25 and 'O'-ring 13 on
piston 12.
Note: Grease the 'O'-rings before mounting.
To Next Page
